QuickSpecs
Overview
The next generation of the HP ProLiant ML370 (expandable tower chassis) and the new HP ProLiant DL370 (4U rack optimized chassis)
deliver Industry-leading management tools, leading performance, expandability, flexibility and the latest energy efficient technologies.
These servers are well-suited for deployment in growing businesses, remote office sites, or datacenters and have been designed to
bring you (our customer) the utmost confidence to run your business.

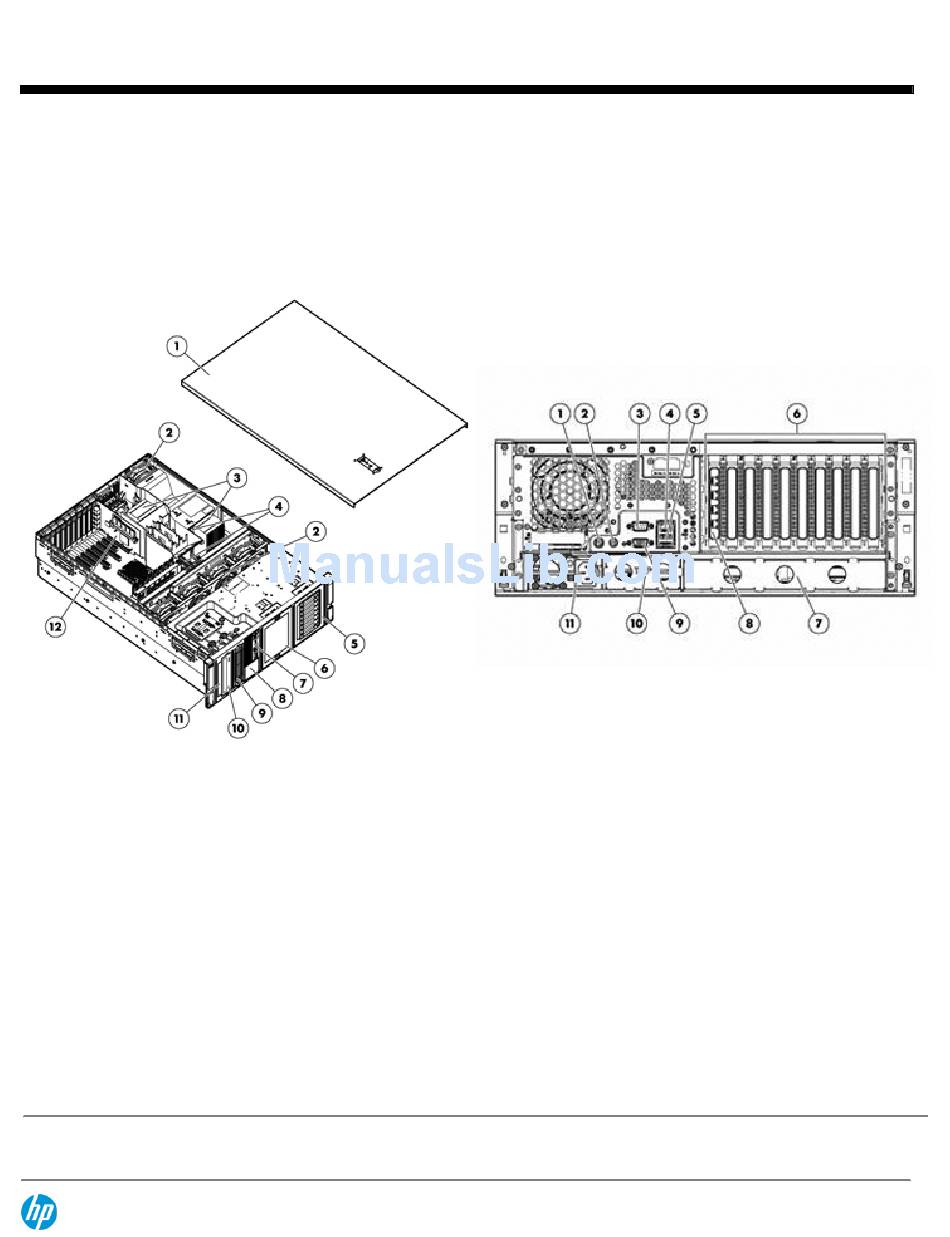

Front View:
1.
Quick removal access panel
2.
Three Hot-plug fans (standard) Five (optional)
3.
Intel Six or Quad-Core Processor (Performance model
includes two processors)
4.
Eighteen slots for DDR3 Registered or Unbuffered Memory
5.
SAS/SATA drive cage
6.
Optional drive cage bay
7.
Power on/standby button, video connector and two USB
connectors
8.
System Insight Display
9.
Removal media bay
10.
DVD-ROM drive
11.
Optional slimline optical drive bay
12.
9 Available PCI-Express Gen2 slots; PCI-X (optional)
HP ProLiant DL370 G6 (Rack)
DA - 13242 Worldwide — Version 58 — February 27, 2013
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Rear View:
1.
Mouse connector
2.
Keyboard connector
3.
Serial connector
4.
iLO 2 connector
5.
Two USB connectors
6.
9 Available PCI-Express Gen2 expansion slots; PCI-X
(optional)
7.
PCI-X Expansion slot riser bay
8.
Four NIC connectors
9.
Video connector
10.
Power supply bay 2
11.
Power supply bay 1 (populated)
Page 1
