QuickSpecs
Overview

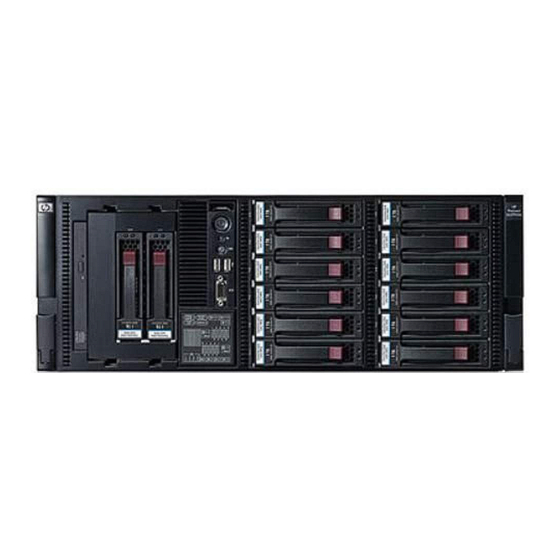

Front View:
Front View:
Front View:
Front View:
1.
Quick removal access panel
2.
Three Hot-plug fans (standard) Five (optional)
3.
Intel Quad-Core Processor (Performance model includes
two processors)
4.
Eighteen slots for DDR3 Registered or Unbuffered Memory 5.
5.
SAS/SATA drive cage
6.
Optional drive cage bay
7.
Power on/stanby button
8.
System Insight Display
9.
Removal media bay
10.
DVD-ROM drive
11.
Optional slimline optical drive bay
12.
9 Available PCI-Express Gen2 slots
HP ProLiant DL370 G6 (Rack)
HP ProLiant DL370 G6 (Rack)
HP ProLiant DL370 G6 (Rack)
HP ProLiant DL370 G6 (Rack)
DA - 13242
Worldwide — Version 3 — April 2, 2009
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Rear View:
Rear View:
Rear View:
Rear View:
1.
Mouse connector
2.
Keyboard connector
3.
Serial connector
4.
iLO 2 connector
Two USB connectors
6.
9 Available PCI-Express Gen2 expansion slots
7.
Expansion slot riser bay
8.
Four NIC connectors
9.
Video connector
10.
Power supply bay 2
11.
Power supply bay 1 (populated)
Page 1
