QuickSpecs

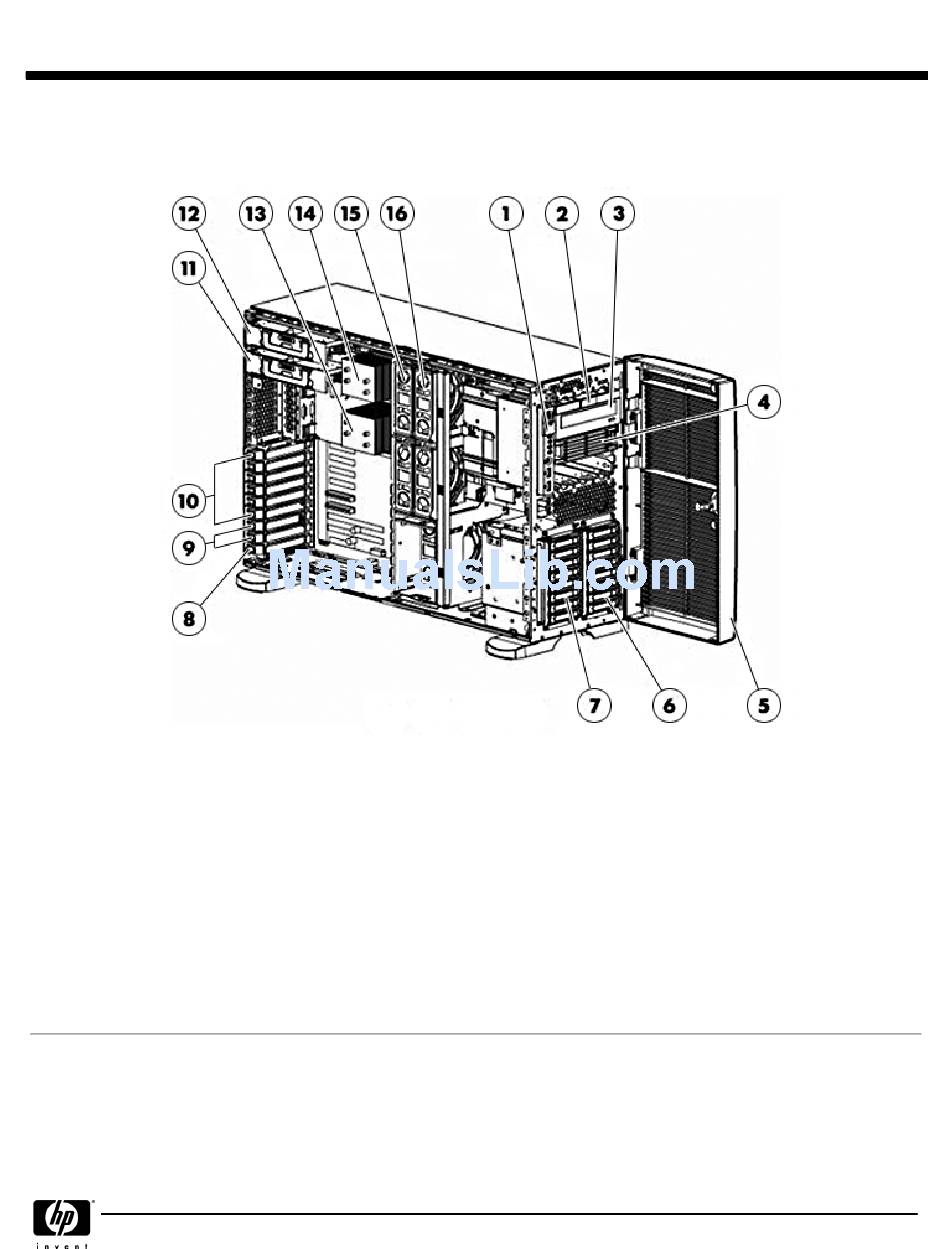

Overview
1. System Insight Display (SID)
2. Media Bay Spacer (Tower)/Video Connector (Rack)
3. DVD/CD-ROM Drive
4. Removable Media Bays
5. Front Bezel (Tower Model Only)
6. Hard Drive Bays 1-8 (Serial-attached SCSI (SAS) drives
supported - SFF)
7. Hard Drive Bays 9-16 - Optional Drive Cage (Serial-attached
SCSI (SAS) drives supported - SFF)
8. Integrated RAID Controller Slot
9. (2) PCI-X 64 Bit/133MHz Slot
HP ProLiant ML370 G5 Tower
HP ProLiant ML370 G5 Tower
HP ProLiant ML370 G5 Tower
HP ProLiant ML370 G5 Tower
HP ProLiant ML370 G5 Tower call-outs
HP ProLiant ML370 G5 Tower call-outs
HP ProLiant ML370 G5 Tower call-outs
HP ProLiant ML370 G5 Tower call-outs
DA - 12478
Canada — Version 12 — April 13, 2007
HP ProLiant ML370 Generation 5 (G5)
HP ProLiant ML370 Generation 5 (G5)
HP ProLiant ML370 Generation 5 (G5)
HP ProLiant ML370 Generation 5 (G5)
10. (6) PCI-Express x4 Slot
11. (8) PC2-5300 Fully Buffered DIMM Slots per memory card -
Standard
12. (8) PC2-5300 Fully Buffered DIMM Slots per memory card -
Optional
13. Dual-Core Intel Xeon processor - Optional
14. Dual-Core Intel Xeon processor - Standard (2 processors
standard on all Performance Models)
15. (3) Hot Plug Redundant Fans - Standard
16. (3) Hot Plug Redundant Fans - Optional
Page 1
