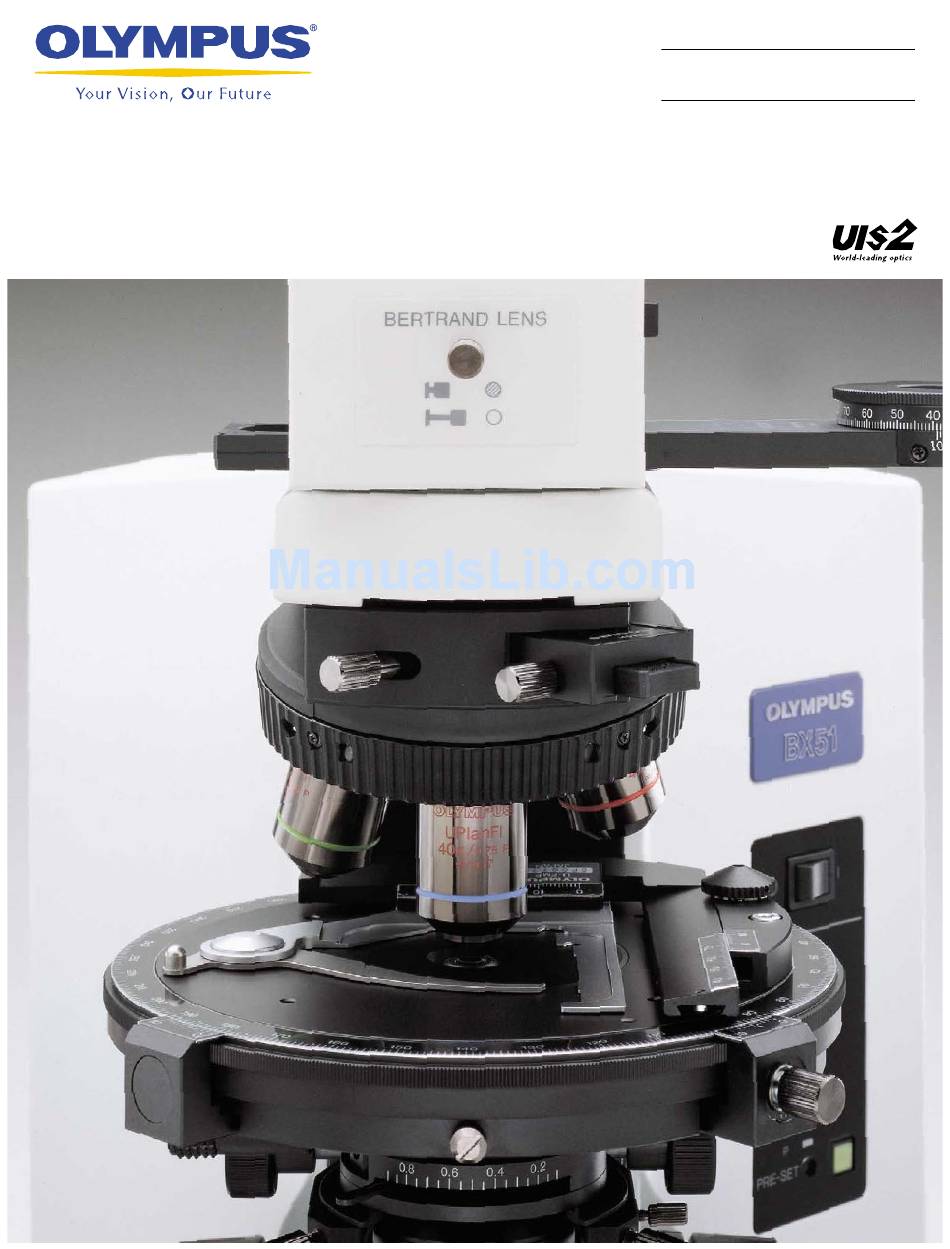

- Page 1 POLARIZING MICROSCOPE BX51-P BX2 SERIES...
- Page 2 Unsurpassed optics render polarized light images sharper than ever before. Olympus is proud to introduce the BX51-P, the new polarizing microscope with superb performance in polarized light. It's a breakthrough combination of world-renowned UIS2 infinity-corrected optics and Olympus original optical-design. Olympus has also devised a new, extended line of compensators to make the BX51-P versatile enough to handle observation and measuring applications in virtually any field.
-
Page 3: Optical Performance
Enhanced operational ease and outstanding optical performance. LWith the U-CPA conoscopic observation LThe high intensity 12V, 100W halogen attachment, the changeover between light source combined with the UIS2 orthoscopic and conoscopic observation optical system and its high trans- methods is simple and quick — just slide mittance result in exceptionally bright the Bertrand lens control knob in or out. - Page 4 BX51-P system diagram BX51-P dimensions (unit: mm) BX51 Conoscopic/Orthoscopic configuration weight: approx. 16.6kg (36.6 Ibs.) BX51 Orthoscopic configuration weight: approx. 15.6kg (34.4 Ibs.) Power consumption: 250VA Note: The length marked with an asterisk (*) may vary according to the interpupillary distance setting. Distance for figure is 62mm.
- Page 5 Thanks to Olympus' sophisticated design and manufacturing technology, the ACHN-P and UPLFL-P strain-free objectives reduce internal strain to an absolute minimum. Olympus has also totally redesigned its polarizers and polarizing condensers to further enhance performance in polarized light. This means a higher EF* value, resulting in unmatched image contrast.
- Page 6 Aperture iris diaphragm: adjustable from 2mm to 21mm diameters ISO9001 ISO14001 Certified ISO 14001 by Certification Certification U K A S Design and production at the OLYMPUS Design and production ENVIRONMENTAL CORPORATION Ina Plant conforms with MANAGEMENT adheres to ISO9001 ISO14001 specifications for international quality standard.
