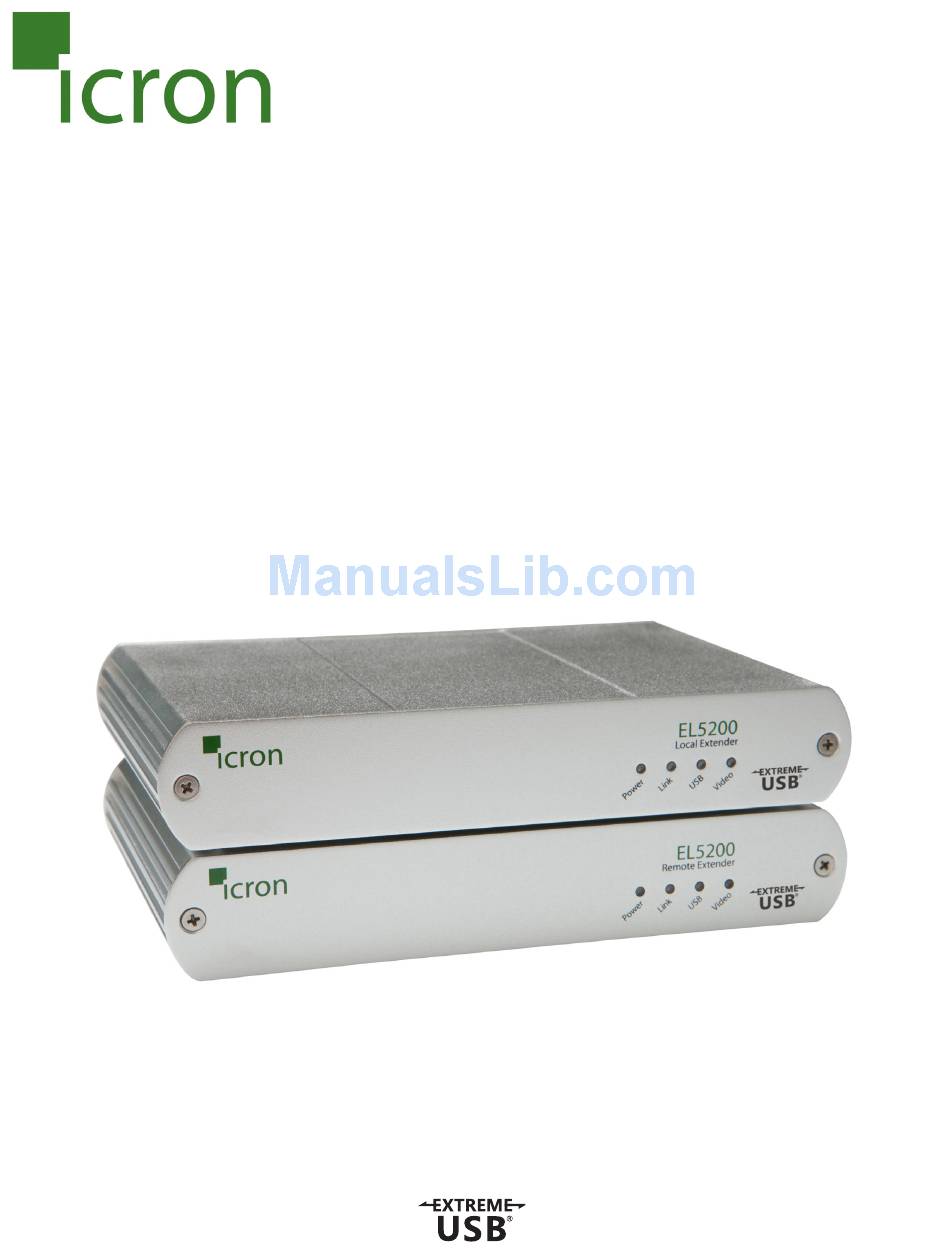

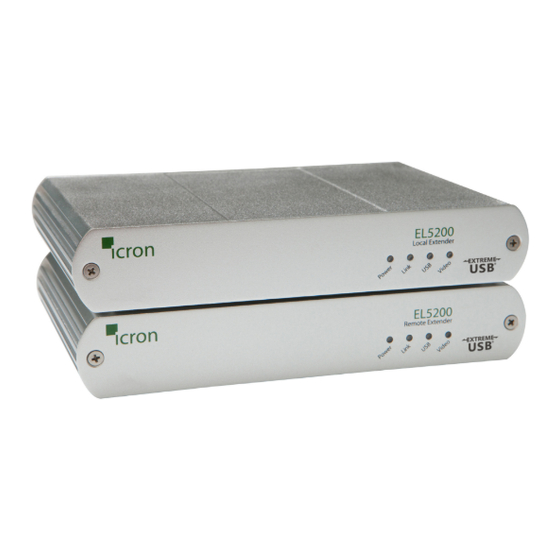

Page 1: User Guide
EL5200 HDMI® + USB 2.0 Extender HDMI® and USB 2.0 100m Cat 5e KVM Extender System User Guide... - Page 2 Technologies Corporation logo, and the Icron Technologies Corporation products referred to herein are either the trademarks or the registered trademarks of Icron Technologies Corporation. All other trademarks are property of their respective owners. Icron Technologies Corporation assumes no responsibility for errors that may appear in this manual.
-
Page 3: Table Of Contents
Contents Introduction ........................4 Product Contents ...................................4 Requirements ....................................4 About the EL5200 KVM Extender .............................4 Compatibility and Recommended Setup ..........................5 Local Extender (LEX) Description and Markings ........................6 Remote Extender (REX) Description and Markings......................7 Installation Guide ......................8 Installing the LEX Unit ..................................8 Installing the REX Unit .................................8 Connecting the LEX to the REX ..............................9 Connecting Power to the LEX and REX ..........................9... -
Page 4: Introduction
Introduction The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. note NOTES provide additional useful and important information. CAUTIONS provide important information about an operational requirement. Product Contents •... -
Page 5: Compatibility And Recommended Setup
USB 1.1 web cameras. If uncertain whether your USB 2.0 device(s) can be supported, please contact Technical Support: icron.com/support. USB 2.0 devices are limited to 30Mbps of throughput. Not all USB 2.0 devices will reach full note performance as a result. -
Page 6: Local Extender (Lex) Description And Markings
No Light: There is no video being transmitted. Link Port (RJ45) Accepts RJ45 connector for Cat 5e cabling. Config Reserved for use by Icron Technologies and its technology partners. HDMI In Accepts HDMI connector for video input from the host computer. Device Port (USB Type B) Connects the LEX to the host computer. -
Page 7: Remote Extender (Rex) Description And Markings
Accepts RJ45 connector for Cat 5e cabling. HDMI Out Accepts HDMI connector to the remote monitor. Config Reserved for use by Icron Technologies and its technology partners. Device Port (USB Type A) Accepts USB device(s). Power Port Connects to the 5V, 3A power adapter. -
Page 8: Installation Guide
Installation Guide Before you can install the product, you need to prepare your site: HD TV/Monitor (sink) Home Theater PC (source) HDMI & USB up to 100m Cat 5e Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote desktop, including the monitor, keyboard, mouse and any other USB device(s). -
Page 9: Connecting The Lex To The Rex
Connecting the LEX to the REX With Surface Cabling Plug one end of the Cat 5e cabling (not included) into the Link port (RJ45) on the LEX. Plug the other end of the Cat 5e cabling into the Link port (RJ45) on the REX. With Premise Cabling Plug one end of a Cat 5e patch cord (not included) into the Link port (RJ45) on the LEX. -
Page 10: Troubleshooting Guide
Troubleshooting Guide The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. - Page 11 PROBLEM CAUSE SOLUTION All LEDs on both • The USB device is 1. Disconnect the KVM extender product from the the LEX and REX malfunctioning. computer. are on, but the USB • The computer does not 2. Connect the USB device directly to the USB port device does not recognize the USB device.
-
Page 12: Specifications
Specifications Up to 100m (330 ft) over solid core Cat 5e STP (or better) cable. Range Solid core Cat 6 STP recommended for best performance. Video Resolution & Depth High Definition 1080p, 1920 x 1200, and 4K; Depth: 2D and 3D Color 36-bit, Deep Color, and x.v. -
Page 13: Contacting Technical Support
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. In no case shall Icron Technologies Corporation, its suppliers and licensors’... -
Page 14: Obtaining Warranty Service
Package the product appropriately for safe shipment and mark the RMA number on the outside of the package. The package must be sent prepaid to Icron Technologies Corporation. We recommend that you insure it or send it by a method that provides for tracking of the package. The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty... -
Page 15: Technical Glossary
Technical Glossary Category 5e (Cat 5e) Network Cabling Category 5e cable is commonly also referred to as Cat 5e. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI). - Page 16 Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC Canada V5C 5T5 Tel: +1 604 638 3920 Fax: +1 604 638 3930 icron.com...
