User Manual
KVM - DVI, Audio, USB 2.0, CAT 5 Extender
KVM - DVI, Audio, USB 2.0 Extender
Local Extender
1640 feet (500 meters)

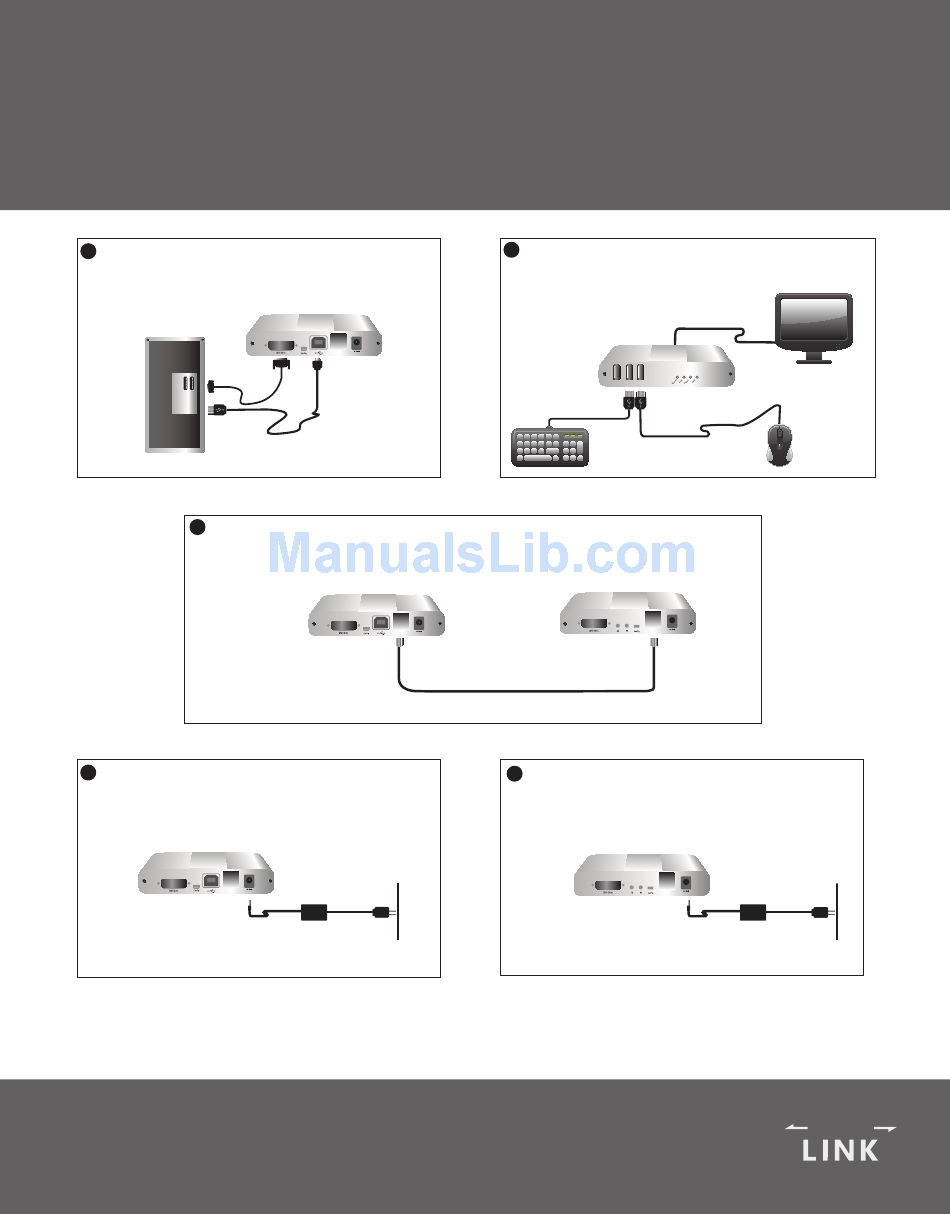

Quick Start Guide
Connect the Local Extender to computer using
1
DVI cable (included) and USB cable (included).
PC
Place units where desired and connect the Local Extender to the Remote Extender
3
via Cat 5 cabling (not included).
Power the Local Extender with 5V AC adapter (included).
4
local
Link
Quick Start Guide
1640 feet (500 meters)
Front
Back
Link
DC IN 5V@3A
Link
DC IN 5V@3A
Link
DC IN 5V@3A
Max. Distance 1640ft / 500m between the Local Extender and Remote Extender
DC IN 5V@3A
Quick Start Guide
|
Remote Extender
Front
Back
Link
24V@1A
Connect the Remote Extender to monitor with DVI cable.
2
Connect your keyboard and mouse to the Remote Extender.
Link
24V@1A
Power the Remote Extender with 24 V AC adapter (included).
5
Wait approximately one minute for the system to boot.
Link
24V@1A
EXTREME
TM
Advertisement
Related Manuals for Icron EL3500
Summary of Contents for Icron EL3500
-
Page 1: Local Extender
Quick Start Guide KVM - DVI, Audio, USB 2.0, CAT 5 Extender 1640 feet (500 meters) KVM - DVI, Audio, USB 2.0 Extender Local Extender Remote Extender 1640 feet (500 meters) Front Front Quick Start Guide Back Back Link DC IN 5V@3A Link 24V@1A Connect the Remote Extender to monitor with DVI cable. - Page 2 Compatibility and Recommended Set Up The product is compatible with many graphics cards, operating systems, and monitors. There is no guarantee that all devices are compatible with the product, as there are a number of different configurations that may impact the operation of the KVM Extender. The product complies with USB1.1 and USB 2.0 specifications governing the design of USB devices.
