Summary of Contents for Icron EL3500

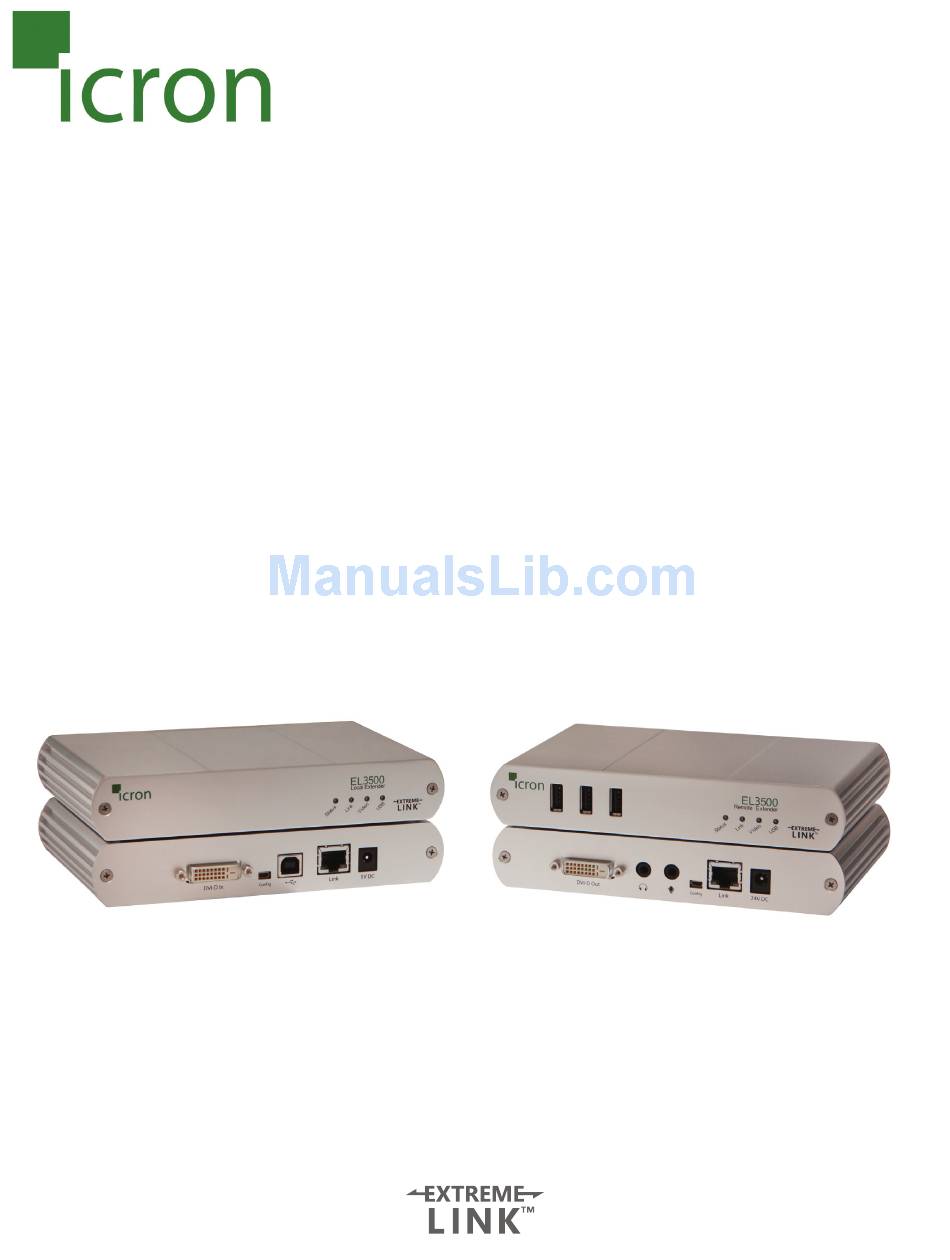

- Page 1 KVM - DVI, Audio, USB 2.0, Cat 5 Extender 1640 feet (500 meters) EL3500 User Guide Powered by...
- Page 2 Thank you for purchasing the KVM - DVI, Audio, USB 2.0, Cat 5 Extender 1640 feet (500 meters) Please read this guide thoroughly. FCC Radio Frequency Interference Statement Warning This device complies with FCC Part 15 Subpart B. CE Statement The product meets European Standard EMC EN 55022 Class A, EN 61000, and EN 55024.
-
Page 3: Table Of Contents
Contents Introduction ........................4 Product Contents ................................... 4 Requirements ....................................4 About the Product ..................................4 Compatibility ....................................5 Installation guide ......................8 Installing the Local Extender ..............................8 Installing the Remote Extender..............................8 Connecting the Local Extender to the Remote Extender ....................9 Checking the Installation ................................ -
Page 4: Introduction
Introduction The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. NoTES provide additional information that could be useful. note CAUTIoNS provide important information about an operational requirement. Product Contents Packaged with: •... -
Page 5: Compatibility
Compatibility The product is compatible with many graphics cards, operating systems, and monitors. However, there is no guarantee that all devices are compatible with the product as there are a number of different factors that may impact the operation of the KVM Extender. The product complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. -

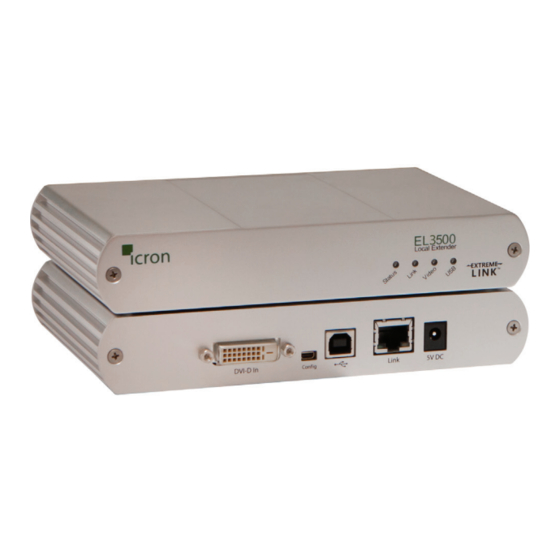

Page 6: The Local Extender
The Local Extender The Local Extender connects to the computer using the attached DVI and USB cable. Front View Rear View DVI-D In Link 5V DC Config ITEM TYPE DESCRIPTION LED green indicates the system is ready. Green blinking indicates the system Status LED (Green) is being configured. -
Page 7: The Remote Extender
The Remote Extender The Remote Extender provides DVI output to a monitor, microphone input, headphone output, and three USB Type A ports for standard USB devices. Additional devices may be connected by attaching USB hubs. Front View Rear View DVI-D out Link 24V DC Config... -
Page 8: Installation Guide
Installation Guide USB extension up to 500m Cat 5 (or better) cable Before you can install the product, you need to prepare your site: Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote desktop including the monitor, keyboard, mouse and any other USB device(s). -
Page 9: Connecting The Local Extender To The Remote Extender
Connecting the Local Extender to the Remote Extender To ensure proper operation, it is recommended that only Cat 5 or better, Unshielded Twisted Pair (UTP) cabling be used note to connect the Local Extender unit to the Remote Extender unit. The cabling must have a straight-through conductor configuration with no crossovers and must be terminated with 8 conductor RJ45 connectors at both ends. -
Page 10: Connecting A Usb Device
Check to see if the Status LED is solid green. If it is blinking this indicates your system is not yet ready. Check all LEDs to ensure none are amber. This will indicate there is a problem with the Video or USB. If the product is not displaying video or your USB device fails to be detected by your operating System, please consult the Troubleshooting Guide. - Page 11 PROBLEM CAUSE SOLUTION All LEDs on • The Remote Extender unit is 1. Ensure that the DC power adapter is properly Remote Extender not receiving power from the connected to the Remote Extender unit. unit are off. Remote Extender DC adapter. 2.
- Page 12 There is no • The USB CMEDIA PNP Audio 1. Check that the CMEDIA device is enumerated on audio. device is not selected as the the host computer. default audio device. 2. If the CMEDIA device is not enumerated call Technical Support.
- Page 13 PROBLEM CAUSE SOLUTION All LEDs on both • The USB device is 1. Disconnect the KVM extender product from the Local Extender malfunctioning. the computer. unit and Remote • The computer does not 2. Connect the USB device directly to the USB port Extender unit are recognize the USB device.
-
Page 14: Specifications
Specifications Range 1640 feet (500 meters) over Cat 5e (or better) cable High-speed devices (480 Mb/s) (USB 2.0) USB device support Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices (1.5 Mb/s) (USB 2.0 & 1.1) Any single chain can include up to 4 USB hubs plus one ExtemeLink USB hub support 3500. -
Page 15: Contacting Technical Support
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. In no case shall Icron Technologies Corporation, its suppliers and licensors’... -
Page 16: Technical Glossary
Technical Glossary Category 5 (Cat 5) Network Cabling Category 5 cable is commonly also referred to as Cat 5. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI).
