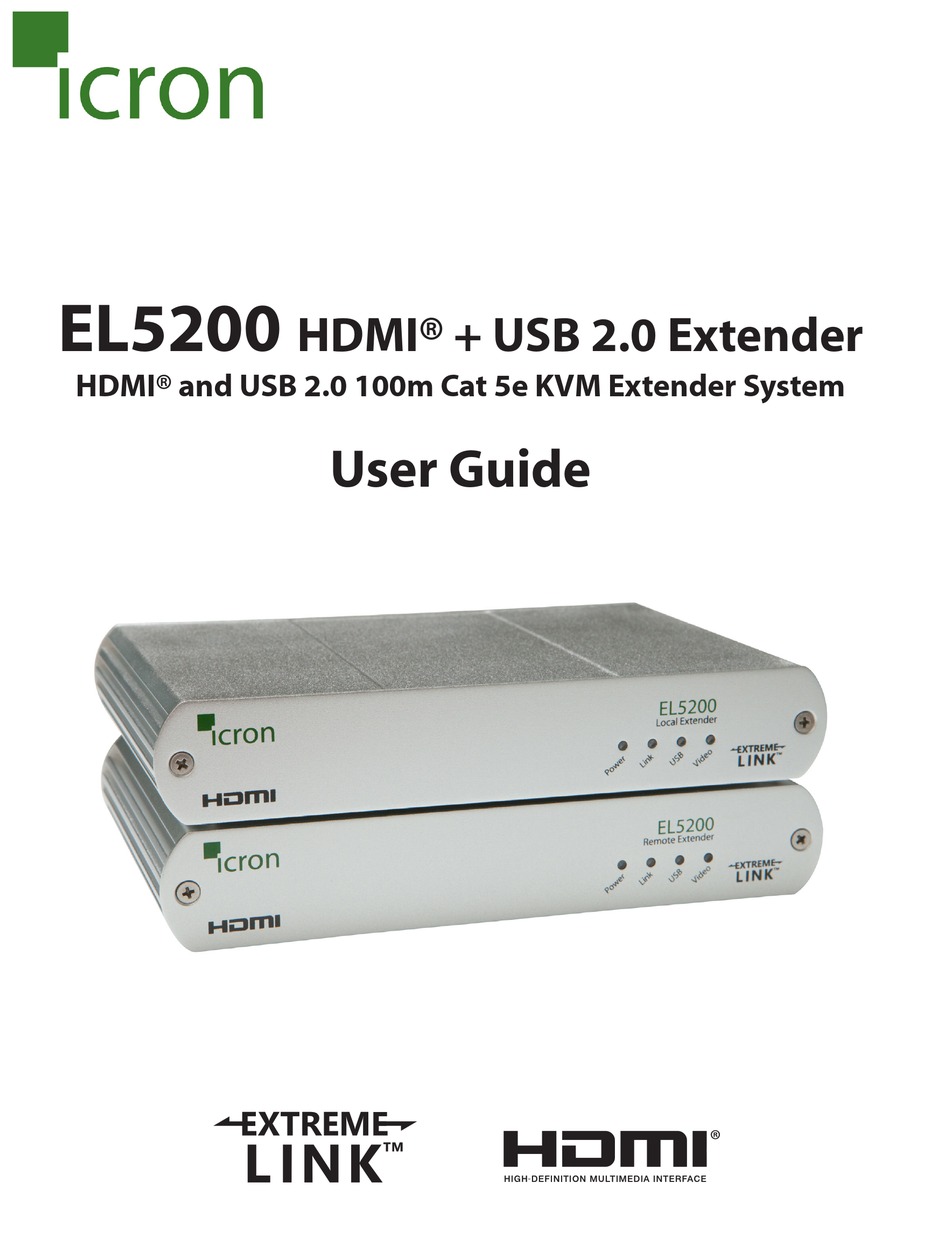

Page 1: User Guide

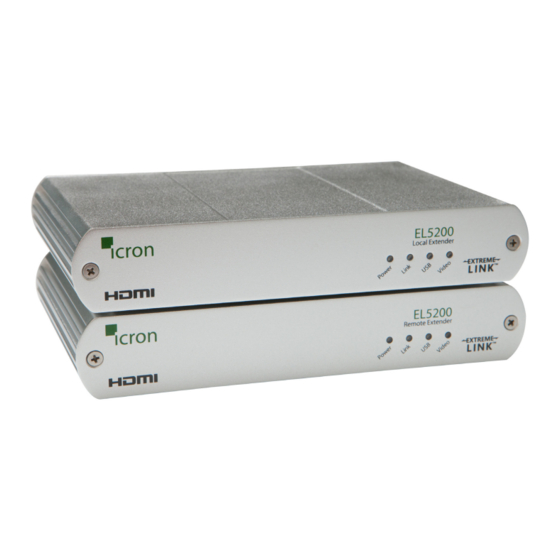

EL5200 HDMI® + USB 2.0 Extender HDMI® and USB 2.0 100m Cat 5e KVM Extender System User Guide ®... - Page 2 Thank you for purchasing the EL5200 KVM Extender. Please read this guide thoroughly. FCC Radio Frequency Interference Statement Warning This device complies with FCC Part 15 Subpart B. CE Statement The product meets European Standard EMC EN 55022 Class A, EN 61000, and EN 55024.
-
Page 3: Table Of Contents
Contents Introduction ........................4 Product Contents ...................................4 Requirements ....................................4 About the EL5200 KVM Extender .............................4 Compatibility and Recommended Setup ..........................5 HDMI® Compliancy ..................................5 Local Extender (LEX) Description and Markings ........................6 Remote Extender (REX) Description and Markings......................7 Installation Guide ......................8 Installing the LEX Unit ..................................8... -
Page 4: Introduction
Please refer to the Cabling section on page 5 for more detailed information. About the EL5200 KVM Extender The EL5200 KVM Extender system incorporates ExtremeLINK™, which enables users to extend both HDMI video and USB 2.0 up to 100 meters (330 feet). The following ExtremeLINK™ features are included: •... -
Page 5: Compatibility And Recommended Setup
• Speakers • USB 1.1 Web Cameras • Microphones HDMI® Compliancy The EL5200 KVM Extender incorporates HDMI technology, and is compliant in supporting the following HDMI features: • Full uncompressed high definition 1080p, 1920 x 1200, and 4K video resolution •... -
Page 6: Local Extender (Lex) Description And Markings
No Light: There is no video being transmitted. Link Port (RJ45) Accepts RJ45 connector for Cat 5e cabling. Config Reserved for use by Icron Technologies and its technology partners. HDMI In Accepts HDMI connector for video input from the host computer. Device Port (USB Type B) Connects the LEX to the host computer. -
Page 7: Remote Extender (Rex) Description And Markings
Accepts RJ45 connector for Cat 5e cabling. HDMI Out Accepts HDMI connector to the remote monitor. Config Reserved for use by Icron Technologies and its technology partners. Device Port (USB Type A) Accepts USB device(s). Power Port Connects to the 5V, 3A power adapter. -
Page 8: Installation Guide
Installation Guide Before you can install the product, you need to prepare your site: HD TV/Monitor (sink) Home Theater PC (source) HDMI® & USB up to 100m Cat 5e Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote desktop, including the monitor, keyboard, mouse and any other USB device(s). -
Page 9: Connecting The Lex To The Rex
Connecting the LEX to the REX With Surface Cabling Plug one end of the Cat 5e cabling (not included) into the Link port (RJ45) on the LEX. Plug the other end of the Cat 5e cabling into the Link port (RJ45) on the REX. With Premise Cabling Plug one end of a Cat 5e patch cord (not included) into the Link port (RJ45) on the LEX. -
Page 10: Troubleshooting Guide
The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed, in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance at techsupport@icron.com. PROBLEM... - Page 11 PROBLEM CAUSE SOLUTION All LEDs on both • The USB device is 1. Disconnect the KVM extender product from the the LEX and REX malfunctioning. computer. are on, but the USB • The computer does not 2. Connect the USB device directly to the USB port device does not recognize the USB device.
-
Page 12: Specifications
Specifications Up to 100m (330 ft) over solid core Cat 5e STP (or better) cable. Range Solid core Cat 6 STP recommended for best performance. Video Resolution & Depth High Definition 1080p, 1920 x 1200, and 4K; Depth: 2D and 3D Color 36-bit, Deep Color, and x.v. -
Page 13: Contacting Technical Support
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. In no case shall Icron Technologies Corporation, its suppliers and licensors’... -
Page 14: Obtaining Warranty Service
Package the product appropriately for safe shipment and mark the RMA number on the outside of the package. The package must be sent prepaid to Icron Technologies Corporation. We recommend that you insure it or send it by a method that provides for tracking of the package. The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty... -
Page 15: Technical Glossary
Technical Glossary Category 5e (Cat 5e) Network Cabling Category 5e cable is commonly also referred to as Cat 5e. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI). - Page 16 Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC Canada V5C 5T5 Tel: +1 604 638 3920 Fax: +1 604 638 3930 www.icron.com...
