Icron EL5363 Quick Start Manual

Local Extender
Link
1 Using the included high quality HDMI and USB cables,
connect the Local Extender (LEX) to a computer.
Computer
Directly connect the LEX to the REX with a solid core CAT 5e/6/7 cable (not included). Solid core
3
CAT 6a/7 STP is recommended for best performance (refer to detailed cable information on the
back of this page).
Link
Power the LEX with the included 5V AC adapter.
4
Link HDMI In

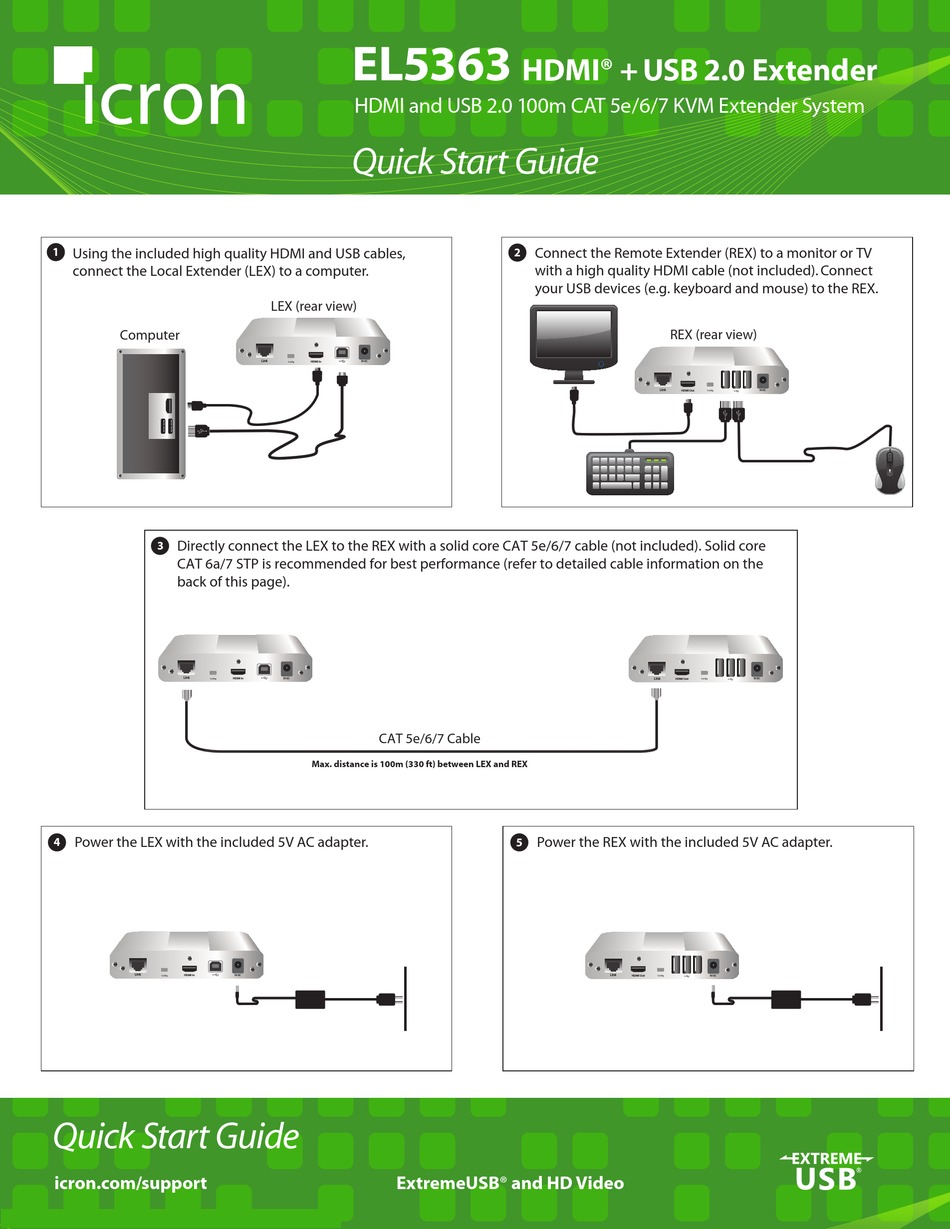

Quick Start Guide
icron.com/support
EL5363
HDMI and USB 2.0 100m CAT 5e/6/7 KVM Extender System
Front
Quick Start Guide
Back
HDMI In
5V DC
LEX (rear view)
Link HDMI In
5V DC
HDMI In
5V DC
CAT 5e/6/7 Cable
Max. distance is 100m (330 ft) between LEX and REX
5V DC
ExtremeUSB® and HD Video
Remote Extender
HDMI® + USB 2.0 Extender
Front
Back
Link HDMI Out
5V DC
Connect the Remote Extender (REX) to a monitor or TV
2
with a high quality HDMI cable (not included). Connect
your USB devices (e.g. keyboard and mouse) to the REX.
REX (rear view)
Link HDMI Out
Link HDMI Out
Power the REX with the included 5V AC adapter.
5
Link
HDMI Out
HDMI In
5V DC
5V DC
5V DC
