Summary of Contents for Icron EL5363
-

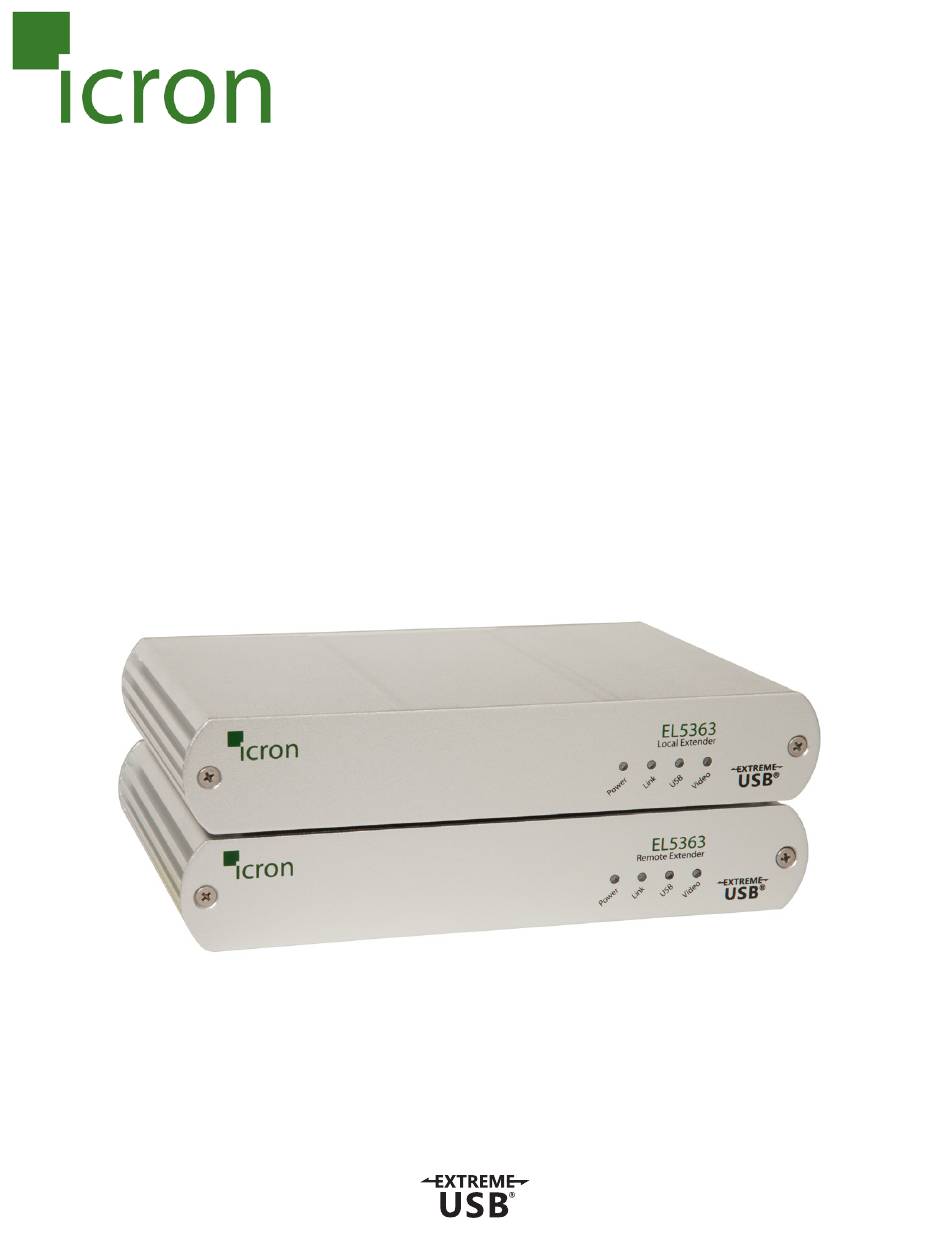

Page 1: User Guide

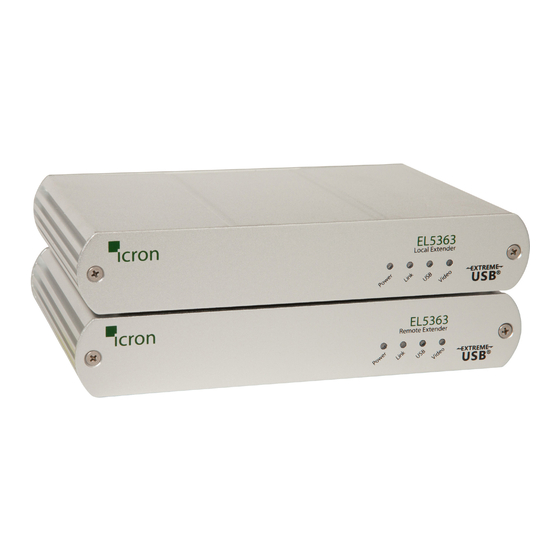

EL5363 HDMI + USB 2.0 Extender HDMI and USB 2.0 100m CAT 5e/6/7 KVM Extender System User Guide... - Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the EL5363, to which this declaration relates, is in conformity with European Standard EN 55022, EN 61000, and EN 55024. IC Statement This Class A digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
Contents Introduction ........................4 Product Contents ...................................4 Requirements ....................................4 About the EL5363 KVM Extender .............................4 Compatibility and Recommended Setup ..........................5 The LEX Unit ....................................6 The REX Unit ....................................7 Installation Guide ......................8 Installing the LEX Unit ..................................8 Installing the REX Unit .................................8 Connecting the LEX to the REX ..............................9... -
Page 4: Introduction
Please refer to the Cabling section on page 5 for more detailed information. About the EL5363 KVM Extender The EL5363 KVM Extender system incorporates ExtremeUSB® and HD Video technology, which enables users to extend both HDMI and USB 2.0 up to 100 meters (330 feet). The following ExtremeUSB features are included: • Transparent USB extension... -
Page 5: Compatibility And Recommended Setup
Host Operating Systems • Windows®, OS X®, Linux® USB Peripherals • Keyboards & Mice • Printers • Mass Storage Devices • Speakers • Microphones HDMI Features The EL5363 KVM Extender is compatible with the following HDMI features: • Full uncompressed high definition 4Kp30, 1080p and 1920 x 1200 video resolutions • Depth perception of 2D and 3D • Deep Color and x.v. Color • Lip Sync Pass-through • CEC Pass-through • HDCP Pass-through... -
Page 6: The Lex Unit
Video LED (Green) Blinking Green Light: Video (non-HDCP) content is being transmitted. No Light: There is no video being transmitted. Config Reserved for use by Icron Technologies. Link Port (RJ45) Accepts RJ45 connector for CAT 5e/6/7 cabling. HDMI In Accepts HDMI connector for video input from the host computer. -
Page 7: The Rex Unit
Blinking Green Light: Video (non-HDCP) content is being transmitted. No Light: There is no video being transmitted. Config Reserved for use by Icron Technologies. Link Port (RJ45) Accepts RJ45 connector for CAT 5e/6/7 cabling. HDMI Out Accepts HDMI connector to the remote monitor. -
Page 8: Installation Guide
Installation Guide Before you can install the product, you need to prepare your site: Monitor Computer DVI & USB up to 100m CAT 5e/6/7 (STP recommended) Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote desktop including the monitor, keyboard, mouse and any other USB device(s). -
Page 9: Connecting The Lex To The Rex
Connecting the LEX to the REX While unshielded cabling may be used, to ensure proper operation, it is recommended that solid core CAT 6a/7 STP note cabling be used to connect the local extender to the remote extender. The cabling must have a straight-through conductor configuration with no crossovers and must be terminated with CAT 6a/7 connectors to qualify as CAT 6a/7. -
Page 10: Checking The Installation
Open the Start menu, right click on “Computer” then select: Manage >> Device Manager For OS X users, open the System Profiler to confirm that the EL5363 has installed correctly. In the left hand column under Hardware,select“USB”and inspect the right hand panel. If the EL5363 has been installed correctly, you should find it listed as a“Hub”under the USB High-Speed Bus/USB Bus. -
Page 11: Troubleshooting Guide
Troubleshooting Guide The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed, in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 12 PROBLEM CAUSE SOLUTION All LEDs on both • The USB device is 1. Disconnect the KVM extender product from the LEX and malfunctioning. the computer. REX are on, but • The computer does not 2. Connect the USB device directly to the USB port the USB device recognize the USB device.
-
Page 13: Specifications
Specifications Up to 100m (330 ft) over a single CAT 5e/6/7 cable. Range Solid core CAT 6a/7 STP recommended for best performance. High Definition 1080p, 1920 x 1200, and 4Kp30; Video Resolution & Depth Depth: 2D and 3D Color 36-bit, Deep Color, and x.v. Color Latency Less than 1ms High-Speed devices (USB 2.0) - up to 40 Mbps... -
Page 14: Contacting Technical Support
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. -
Page 15: Obtaining Warranty Service
Package the product appropriately for safe shipment and mark the RMA number on the outside of the package. The package must be sent prepaid to Icron Technologies Corporation. We recommend that you insure it or send it by a method that provides for tracking of the package. The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty... -
Page 16: Technical Glossary
Technical Glossary Category 5e (CAT 5e) Network Cabling Category 5e cable is commonly also referred to as CAT 5e. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI). - Page 17 Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC Canada V5C 5T5 Tel: +1 604 638 3920 Fax: +1 604 638 3930 icron.com...
