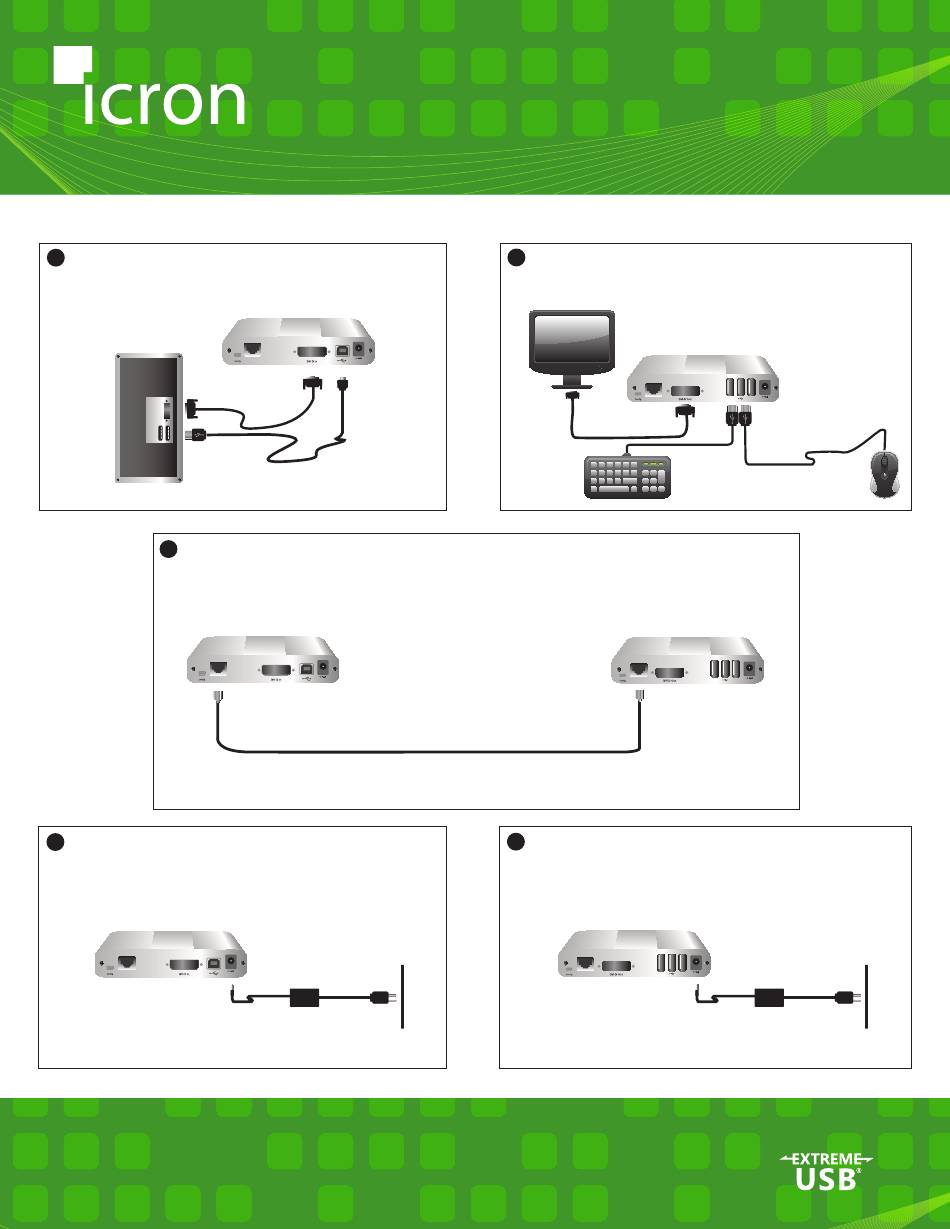

Using the included high quality DVI and USB cables,
1
connect the Local Extender (LEX) to a computer.
Computer
Directly connect the LEX to the REX with a solid core CAT 5e/6/7 cable (not included). Solid core
3
CAT 6a/7 STP is recommended for best performance (refer to detailed cable information on the
back of this page).
Link
4
Power the LEX with the included 5V AC adapter.
Link
5V DC
Quick Start Guide
icron.com/support
EL5353
DVI and USB 2.0 100m CAT 5e/6/7 KVM Extender System
Quick Start Guide
LEX (rear view)
Link
5V DC
5V DC
CAT 5e/6/7 Cable
Max. distance is 100m (330ft) between LEX and REX
ExtremeUSB® and HD Video
DVI + USB 2.0 Extender
Connect the Remote Extender (REX) to a monitor with a
2
high quality DVI cable (not included). Connect your USB
devices (e.g. keyboard and mouse) to the REX.
REX (rear view)
Link
Link
Power the REX with the included 5V AC adapter.
5
Link
5V DC
5V DC
5V DC
