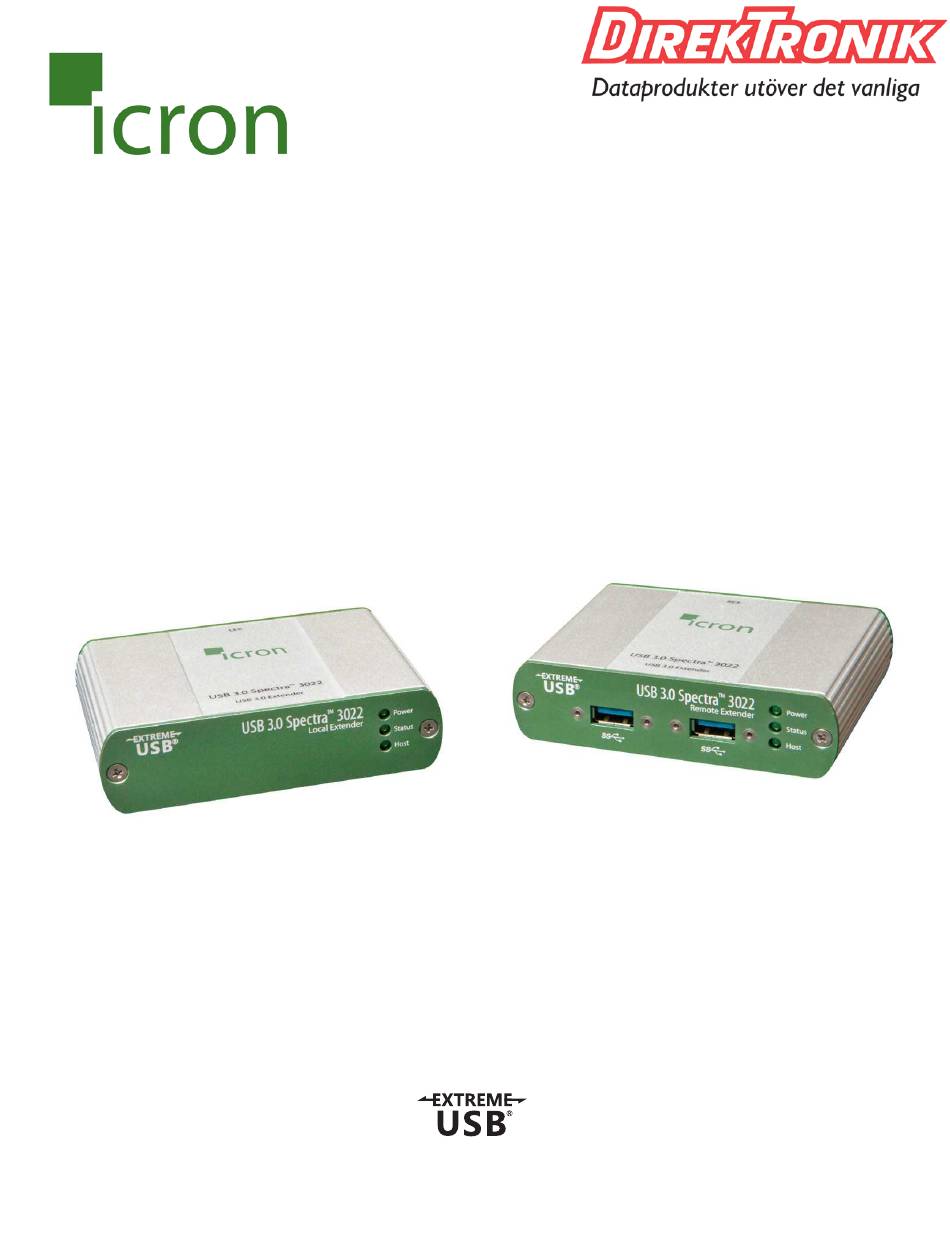

- Page 1 Best.nr: 21-0091 ™ USB 3.0 Spectra 3022 2-Port USB 3.0 100m Multimode Fiber Extender System User Guide...
- Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the USB 3.0 Spectra 3022, to which this declaration relates, is in conformity with European Standard EN 55022, EN 61000 and EN 55024.
-
Page 3: Table Of Contents
Contents Introduction ......................3 Spectra 3022 Product Contents ..................... 3 About the USB 3.0 Spectra 3022 ....................3 The LEX Unit ............................4 The REX Unit ............................5 Installation Guide ....................6 Requirements ............................6 Fiber Optic Link Cabling........................6 Installing the Spectra 3022 System....................7 ........................... -
Page 4: Introduction
Quick Start Guide and Warranty Information About the USB 3.0 Spectra 3022 The Spectra 3022 incorporates Icron’s patented ExtremeUSB® technology, enabling users to extend beyond the approximate 3m cable limit for USB 3.0 peripheral devices. With the Spectra 3022, USB 3.0 devices can be located up to 100 meters from the computer. -
Page 5: The Lex Unit

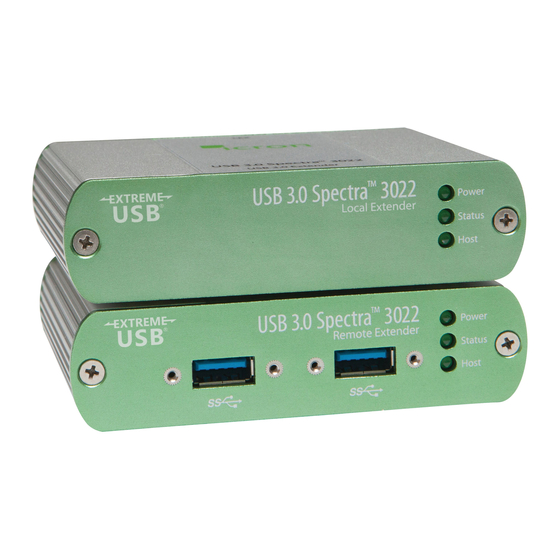

The LEX Unit The Local Extender (LEX) connects to the computer using a standard USB 3.0 cable. Power for this unit is provided by the USB on the host computer. Front View Rear View ITEM TYPE DESCRIPTION Power ON Unit is powered properly. Power OFF Unit is not powered or not powered properly. -
Page 6: The Rex Unit
The REX Unit The Remote Extender (REX) provides USB Type A ports for USB 3.0 devices.The REX allows you to connect up to two USB 3.0 devices directly.The REX is powered by an external AC adapter and can supply up to 900mA to each USB port. -
Page 7: Installation Guide
For Microsoft Kinect applications, please use the SP3001-15 active extension cable. 100m For assistance sourcing appropriate f iber optic cabling, contact Icron Technical Support. note If premise cabling will be used for the installation, then the distances provided above must be met when measuring from LEX to REX, inclusive of the premise cabling and the patch cables. -
Page 8: Installing The Spectra 3022 System
Installing the Spectra 3022 System Preparing Your Site Before you can install the Spectra 3022, you need to prepare your site: Determine where the computer is to be located and set up the computer. Determine where you want to locate the USB device(s). Ensure f iber optic cabling is in place, prepared, properly terminated, and within the maximum distances as def ined for the cabling standard used. - Page 9 a. Click on Change Plan Settings Select “Never” for “Put the computer to sleep” for all the conf igurations presented. a. Click Change advanced power settings. b. Expand “USB settings” c. Expand “USB selective suspend setting” Select “Disabled” .
- Page 10 OS X To disable “suspend” settings on your computer: Open System Preferences and select Energy Saver. For both Battery and Power Adapter power settings, move slider bar to “Never” for “Computer Sleep” .
- Page 11 Linux (Ubuntu 14.04) To disable “suspend” settings on your computer: Edit “/etc/default/grub” as root. Append “usbcore.autosuspend=-1” (without quotations) to the GRUB_CMDLINE_LINUX_DEFAULT variable. Run “update-grub” as root under ubuntu. Reboot the host computer.
-
Page 12: Connecting A Usb 3.0 Device
Connecting a USB 3.0 Device Install any software required to operate the USB device(s). Refer to the documentation for the USB device(s), as required. Connect the USB device to the device port on the REX unit. If using an AIA USB3 Vision ™... -
Page 13: Installing The Rex Unit
Installing the REX Unit Place the REX near the USB device(s). Plug the power adapter into a suitable AC outlet. Connect the power adapter to the REX and twist the connector to lock the power connector into the REX. Checking the Installation On the LEX and REX units, check that the Power, Status, and Host LEDs are on and solid. -
Page 14: Compatibility
Open the Start menu, right click on “Computer” then select: Manage >> Device Manager Compatibility The Spectra 3022 complies with USB 3.0 speciications governing the design of USB devices. However, Icron does not guarantee that all USB 3.0 devices are compatible with the Spectra 3022, as there are a number of different conf igurations that may impact the operation of USB 3.0 devices over extended distances. -
Page 15: Usb Extender Mounting Options
1. USB Extender Mounting Kit (Purchased separately Order Part # 10-00406 USB Mounting Kit - Silver To locate a distributor/reseller in your area, visit: icron.com/where-to-buy/ 2. USB Extender Direct Surface Mounting (Using your own hardware, stencil provided on page 15) OPTION 1: USB Extender Mounting Kit - each kit includes: •... -
Page 16: Option 2: Usb Extender Direct Surface Mounting
OPTION 2: USB Extender Direct Surface Mounting (using your own hardware) The bottom of the Spectra 3022 enclosures features four pre-drilled holes for optional surface mounting. Distance between the enclosure mounting holes: 42.0mm x 77. 0mm mounting hole 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or using a print out of the stencil below. -
Page 17: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 18 PROBLEM CAUSE SOLUTION All LEDs on both • The USB device is 1. Disconnect the Spectra 3022 from the the LEX and REX malfunctioning. computer. are on but the USB 2. Connect the USB device directly to the USB port •...
-
Page 19: Contacting Technical Support
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. -
Page 20: Obtaining Warranty Service
Package the product appropriately for safe shipment and mark the RMA number on the outside of the package. The package must be sent prepaid to Icron Technologies Corporation. We recommend that you insure it or send it by a method that provides for tracking of the package. The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty... -
Page 21: Specifications
Specifications Distance* Multimode Cameras Storage * Up to 50m with USB 3.0 storage type Fiber Class devices and and up to 100m is achievable when using USB 3.0 bulk traf ic cameras. 100m USB 3.0 up to 5 Gbps (Not backward compatible with USB USB Device Support &... - Page 22 Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC Canada V5C 5T5 Tel: +1 604 638 3920 Fax: +1 604 638 3930 icron.com...
