6.3 Configuring the VP-727A with the VP-727xl
The VP-727A can be controlled by the VP-727T in conjunction with one or
more VP-727xl or VP-727 units. The VP-727A can be connected to the:
VP-727xl (see Figure 5) or the VP-727 (see Figure 6)
VP-727T via the VP-727xl or the VP-727 using the RS-485 ports
The example in Figure 5 illustrates how to connect two VP-727A machines and
two VP-727xl machines to a VP-727T controller.
On each VP-727A machine, set DIP 8 to ON. The other dipswitches are set to OFF

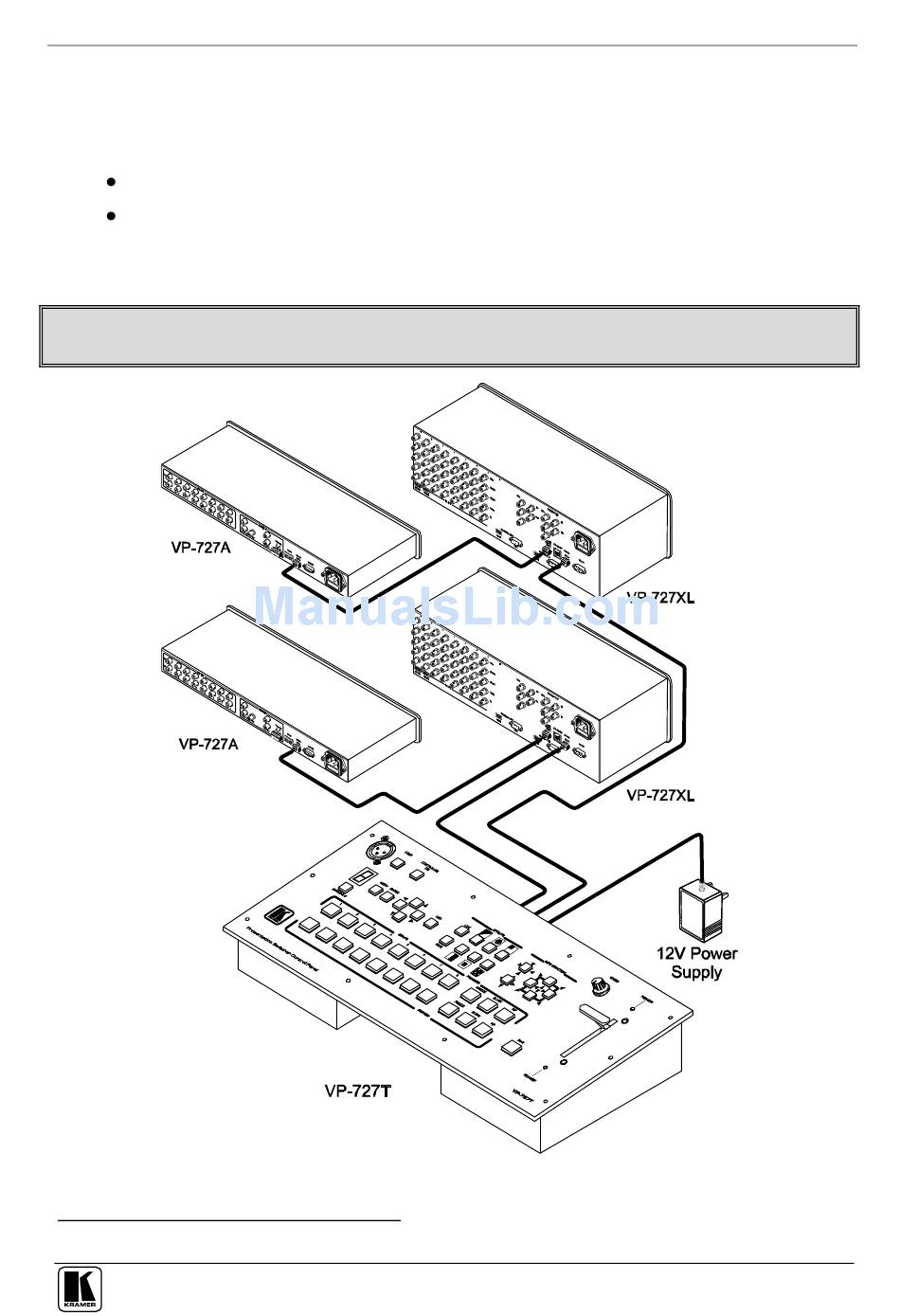

Figure 5: Connecting 2 VP-727A machines to the VP-727T via 2 VP-727xl Machines

1 Or the VP-727
