7.3 Upgrading Firmware
Follow these steps to upgrade the firmware:
1. Double click the desktop icon: "Shortcut to FLIP.EXE".
The Splash screen appears as follows:
2. After a few seconds, the Splash screen is replaced by the "Atmel – Flip"
window:
3. Press the keyboard shortcut key F2 (or select the "Select" command
from the Device menu, or press the integrated circuit icon in the upper
right corner of the window).
The "Device Selection" window appears:
Flash Memory Upgrade

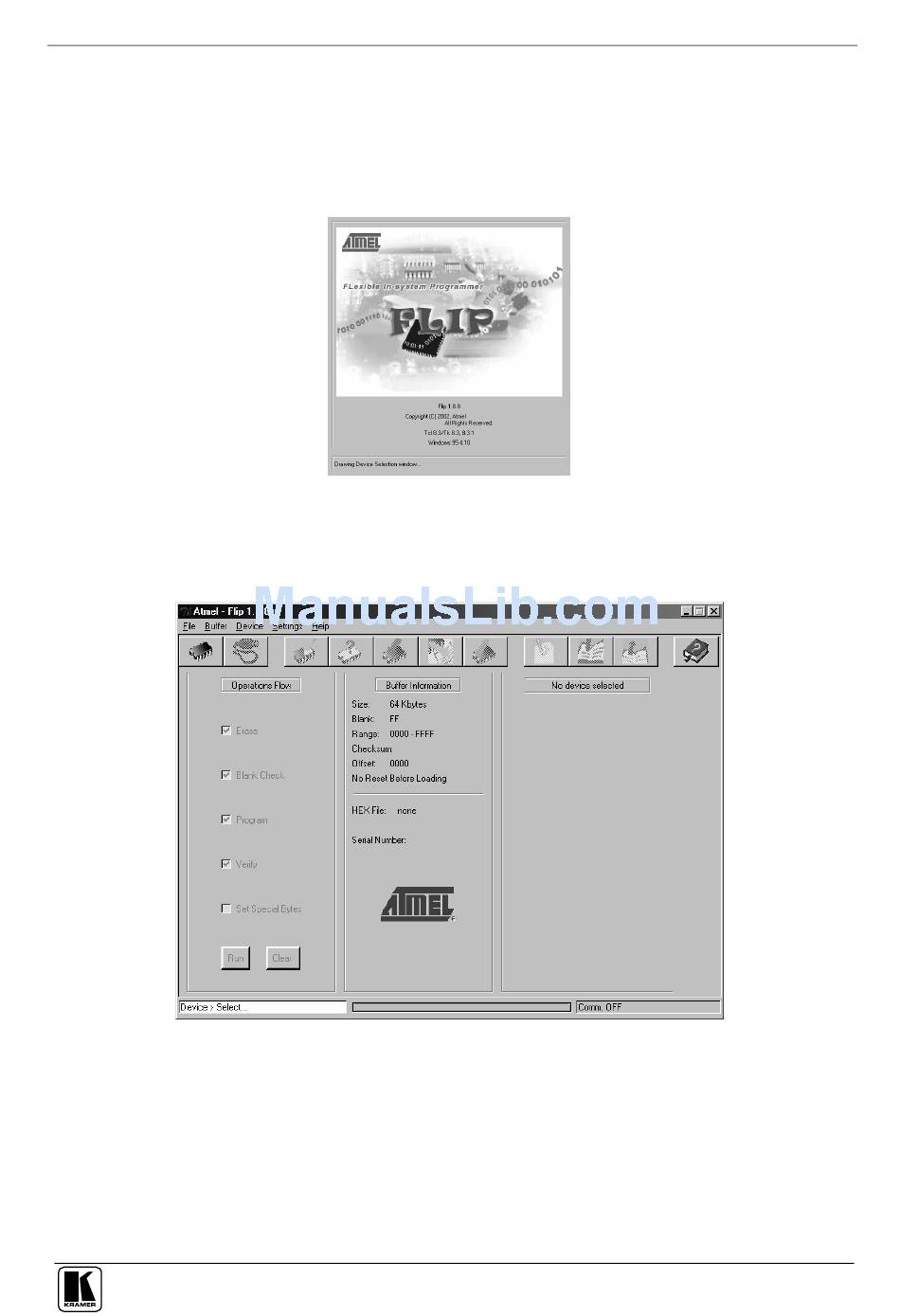

Figure 9: Splash Screen
Figure 10: Atmel – Flip Window
17
