Hardware Installation

2-3.3 Motherboard Connector

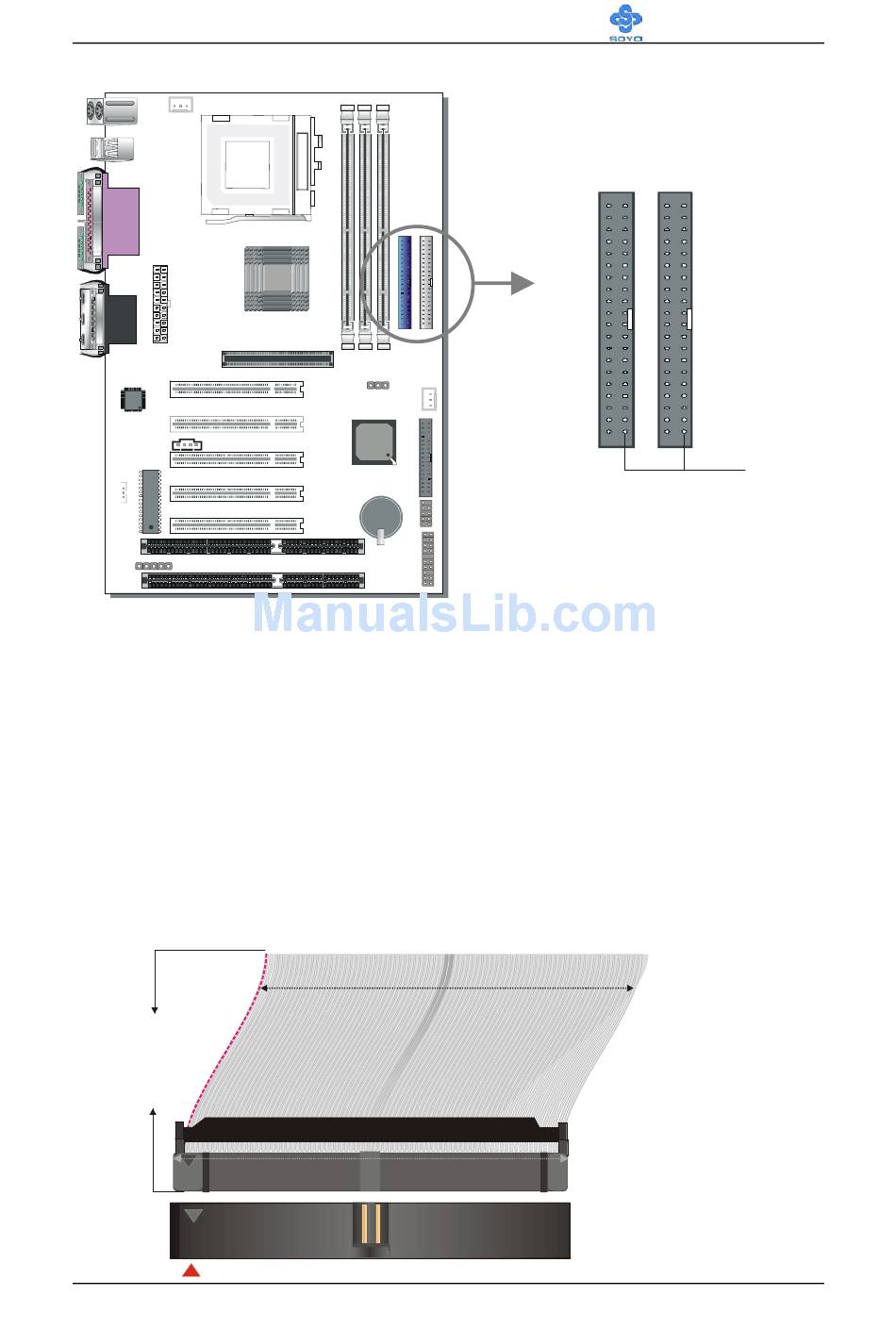

2-3.3.1 IDE Device Installation (HDD, CD-ROM)
This Motherboard offers two primary and secondary IDE device
connectors (IDE1, IDE2). It can support up to four high-speed Ultra DMA
33/66/100HDD or CD-ROM.
Connect one side of the ATA66/100 flat cable to the IDE device (HDD or
CD-ROM) and plug the other end to the primary (IDE1) or secondary
(IDE2) directionally keyed IDE connector on the Motherboard. The
ATA66/100 cable is backward compatible with ATA33 HDDs.
This Motherboard can support up to four HDDs.
ATA 66
Flat Cable
1
1
SDRAM
SDRAM
IDE 1
Primary
IDE
40-pin
39
39
27
SY-7VBA133U
Pin -1
IDE 2
Secondary
IDE
80-Conductor
