Motherboard Description
Windows family compliance.
The VT82C686B also enhances the functionality of the standard ISA
peripherals. The integrated interrupt controller supports both edge and
level triggered interrupts channel by channel. The integrated DMA
controller supports type F DMA in addition to standard ISA DMA modes.
Compliant with the PCI2.2 specification, the VT83C686B supports
delayed transactions and remote power management so that slower ISA
peripherals do not block the traffic of the PCI bus. Special circuitry is built
in to allow concurrent operation without causing dead lock even in a
PCI-to PCI bridge environment. The chip also includes eight levels
(doublewords) of line buffers from the PCI bus to the ISA bus to further
enhance overall system performance.

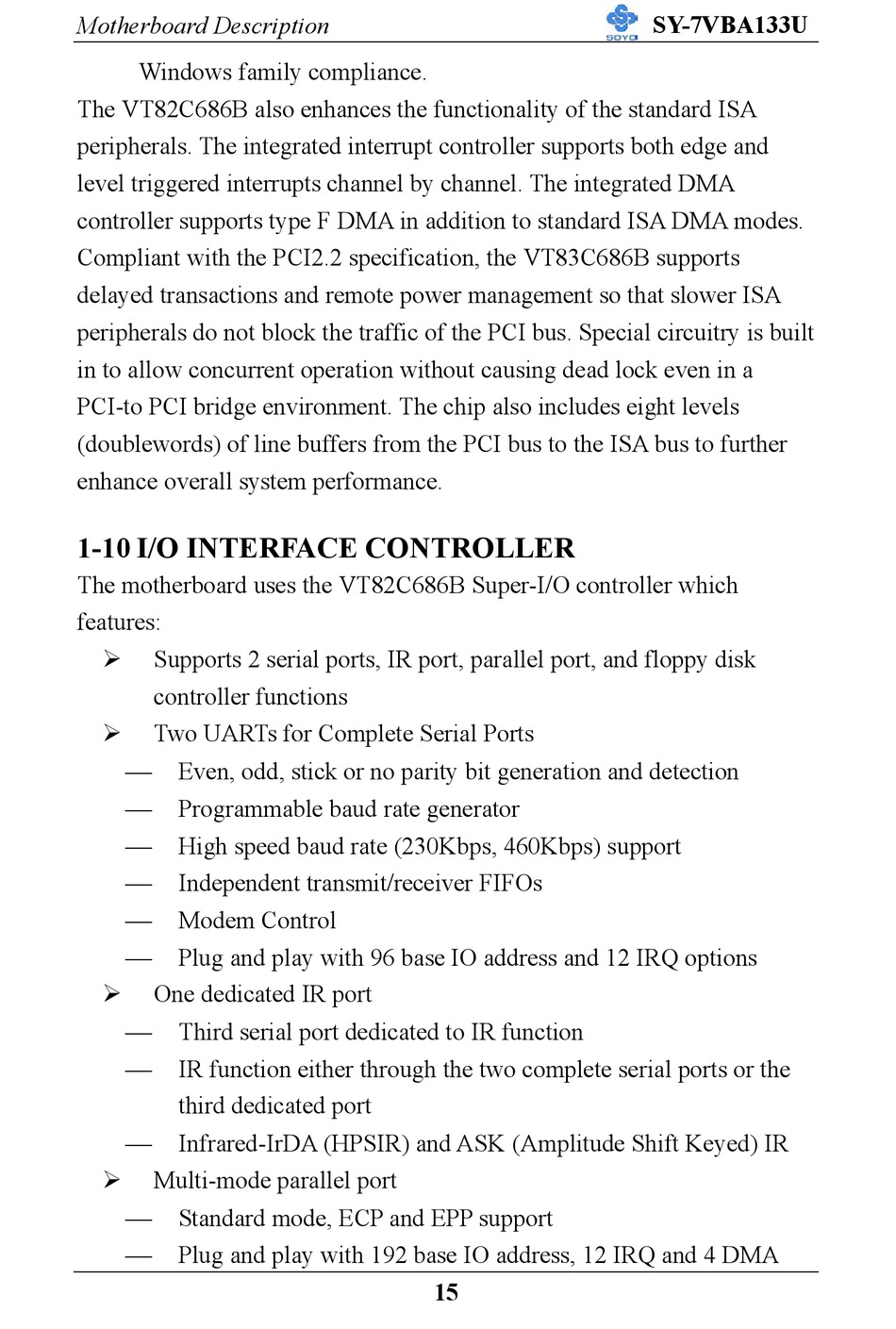

1-10 I/O INTERFACE CONTROLLER

The motherboard uses the VT82C686B Super-I/O controller which
features:
Supports 2 serial ports, IR port, parallel port, and floppy disk
controller functions
Two UARTs for Complete Serial Ports

Even, odd, stick or no parity bit generation and detection

Programmable baud rate generator

High speed baud rate (230Kbps, 460Kbps) support

Independent transmit/receiver FIFOs

Modem Control

Plug and play with 96 base IO address and 12 IRQ options
One dedicated IR port

Third serial port dedicated to IR function

IR function either through the two complete serial ports or the
third dedicated port

Infrared-IrDA (HPSIR) and ASK (Amplitude Shift Keyed) IR
Multi-mode parallel port

Standard mode, ECP and EPP support

Plug and play with 192 base IO address, 12 IRQ and 4 DMA
15
