Hardware Installation

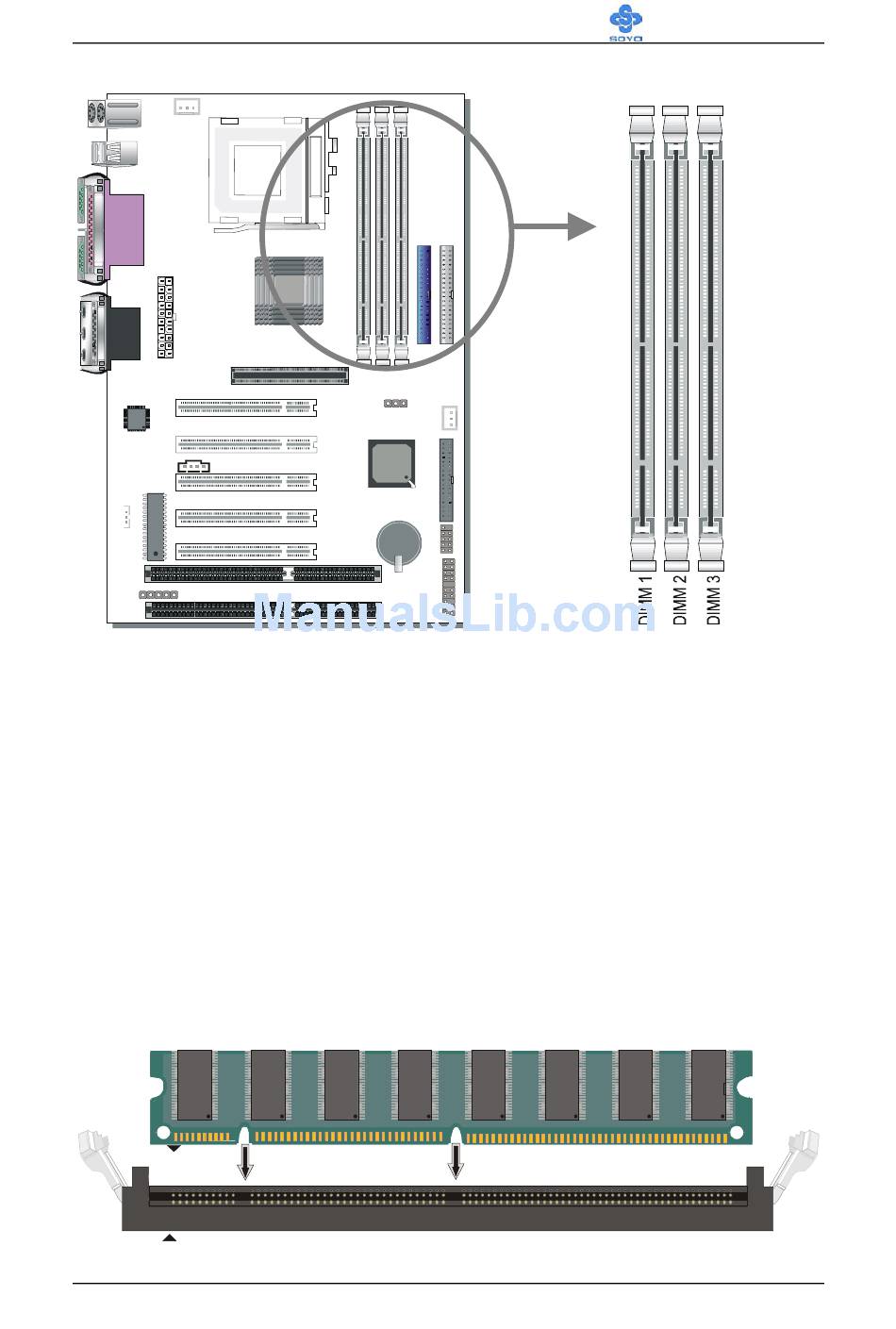

2-3.2 SDRAM Memory Module Installation

Your board recommend a limit of 3 DIMMs or 6 banks at 133 MHz for
1.5GB max memory using unbuffered and registered DIMM modules from
8MB to 512MB. Supports optional ECC (single-bit error correction and
multi-bit detection) or EC (error checking) capability separately selectable
on a bank-by-bank basis. On this motherboard, DRAM speed can be set
independent from the CPU front side bus speed. Depending on the DRAM
clock speed setting in the BIOS setup, appropriate memory modules must
be used. For FSB 66MHz speed, use PC66 or PC100 memory; for FSB
100MHz speed, use PC66/PC100/PC133 memory; for FSB 133MHz speed,
use PC100 or PC133 memory.
1
1
SDRAM
SDRAM
25
SY-7VBA133U
84
84
