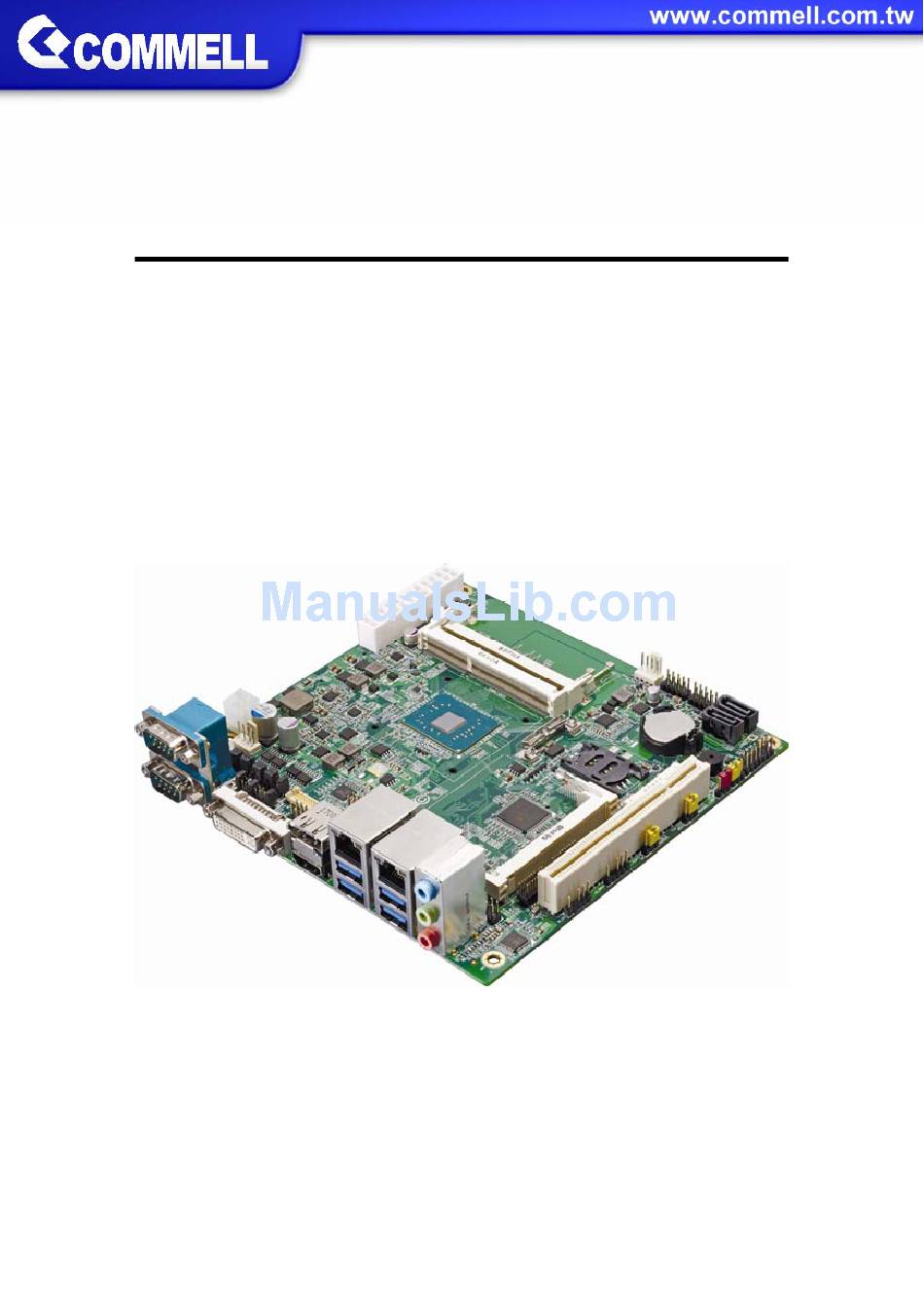

- Page 1 LV-67U Mini-ITX Motherboard User’s Manual Edition 1.2 2017/08/15...
- Page 2 LV-67U User’s Manual Copyright Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LV-67U User’s Manual Packing List: Please check the package content before you starting using the board. 1 x Heat sink (OHS-6) 1 x LV-67U Mini-ITX Motherboard (include Heat sink) 2 x SATA Cable 1 x Power Cable (OAL SATA3-L / 10405 9) - Page 4 LV-67U User’s Manual Index ............4 Chapter 1 <Introduction> 1.1 <Product Overview>................. 4 1.2 <Product Specification> ................5 1.3 <Block Diagram>..................6 ..........7 Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> ............. 7 2.1.1 <Internal connectors list> ............. 8 2.1.2 <External connectors list> ............8 2.2 <Jumper Location and Reference>............
-
Page 5: Chapter 1

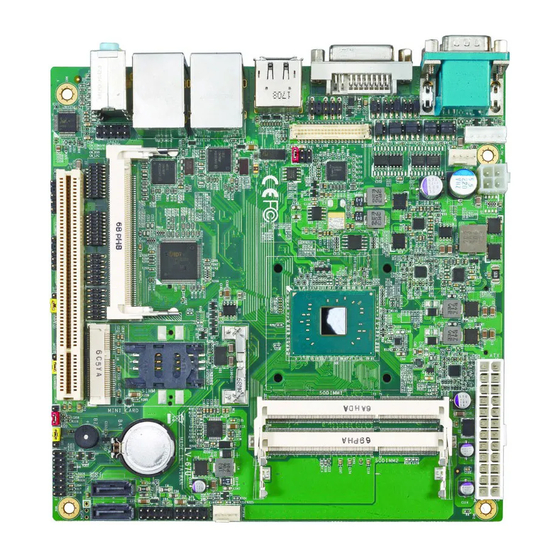

LV-67U User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67U is Mini-ITX Motherboard which is design based on Intel® Celeron® Processor N3350, and Intel® Pentium® Processor N4200 (Apollo Lake SoC), delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. -
Page 6: Product Specification
LV-67U User’s Manual 1.2 <Product Specification> System Intel® Apollo Lake Series Processor N3350/ N4200, Processor FCBGA1296 package Chipset Apollo Lake SoC 2 x DDR3L DIMM 1866 MHz up to 8GB, Support Non-ECC, Memory unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s... -
Page 7: Block Diagram
LV-67U User’s Manual 1.3 <Block Diagram> PTN3460 2 x DDR3L Channel A/B SO-DIMM 1 x LVDS SD Card Apollo Lake DDIC 1 x DisplayPort PCIe x2 2 x I210-AT 1 x DVI-I PCIe x1 MiniCard SATA3 DDIB 1 x HDMI... -
Page 8: Chapter 2
LV-67U User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_AUDIO CN_INV CN_LVDS CPUFAN CN_COM3/4 DC_IN CN_I2C CN_COM5/6 MINIPCI CN_SMBUS CN_DIO CN_LPC MINI_CARD SIMM JFRNT SATA3-2 SO-DIMM1 SATA3-1 SYSFAN CN_USB1 CN_USB SO-DIMM2 COM2 DVI-I DisplayPort LAN1 LAN2 Audio... -
Page 9: Internal Connectors List
LV-67U User’s Manual 2.1.1 <Internal connectors list> Connector Function SO-DIMM1/2 204-pin DDR3L SO-DIMM slot SATA3-1/2 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_DIO 6 x 2-pin General Purpose In/Out pin header... -
Page 10: Jumper Location And Reference
LV-67U User’s Manual 2.2 <Jumper Location and Reference> JCSEL21 JCSEL11 JCSEL12 JCSEL22 JMSATA JRTC JUSBS 2.2.1 <Jumper list> Jumper Function Power mode select JMSATA MiniCard mSATA Setting JRTC CMOS Normal/Clear Setting JUSBS MiniCard USB Setting JVLCD Panel Voltage Setting JCSEL12/22... -
Page 11: Clear Cmos And Power On Type Selection
LV-67U User’s Manual 2.2.2 <Clear CMOS and Power on type selection> JAT: AT/ATX mode select jumper Jumper settings Function AT mode ATX mode (Default) JRTC: Clear CMOS data jumper Jumper settings Function Clear CMOS Normal (Default) JRTC 2.3 <Installing the Memory>... -
Page 12: I/O Interface
LV-67U User’s Manual 3. To remove the memory, push outward on both sides of the latch. Latch 2.4 <I/O interface> 2.4.1 <Serial ATA interface> SATA3-1/2: SATA3 7-pin connector Signal SATA3-2 SATA3-1 -11-... -
Page 13: Ethernet Interface
LV-67U User’s Manual 2.4.2 <Ethernet interface> The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O. Find the setting from Front PageSetup utility AdvancedSouth Cluster Configuration Miscellaneous Confuguration Wake on LAN [Disable] (default) (You have to turn off fast startup in Windows10) - Page 14 LV-67U User’s Manual CN_INV JVLCD CN_LVDS CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3-...
-
Page 15: Serial Port Interface
LV-67U User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage 2.4.4 <Serial Port interface>... - Page 16 LV-67U User’s Manual COM2 COM1 COM1: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Note: Use JCSEL12 select communication mode COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+...
- Page 17 LV-67U User’s Manual JP2, JP1: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage JCSEL12/22, JCSEL11/21: For configure COM1 &COM2 communication mode Function JCSEL12/ JCSEL22 JCSEL11/ JCSEL21...
-
Page 18: Usb Interface
LV-67U User’s Manual 2.4.5 <USB interface> CN_USB1 CN_USB (USB2.0) (USB2.0) USB3.0 CN_USB/1: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ -17-... -
Page 19: Audio Interface
LV-67U User’s Manual 2.4.6 <Audio interface> Rear Audio Jack Line in Line out Mic in CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -18-... -
Page 20: Expansion Slot
LV-67U User’s Manual 2.4.7 <Expansion slot> MINIPCI JMSATA SIMM MINI_CARD JUSBS SD Slot CFAST Slot -19-... -
Page 21: Mini_Card Setting
LV-67U User’s Manual SD Slot: Signal Signal SD_D3 SD_CMD 3.3V SD_CLK SD_D0 SD_D1 SD_D2 SD_CD SD_WP 2.4.7.1 < MINI_CARD Setting > MINI_CARD have special design to compatible our MiniPCIe card (ex: MPX-4232, MPX-7202) supports mSATA set by JMSATA. MINI_CARD connect SIM card to use 3G module. -
Page 22: Simm Setup
LV-67U User’s Manual 2.4.7.2 < SIMM Setup> This is for 3G miniPCIe card which doesn’t have SIM slot. Slide the direction of the arrow open the cover. Then press down and slide the Insert the SIM card and make direction of the arrow close the cover. -
Page 23: Cfast Setup
LV-67U User’s Manual 2.4.7.3 < CFAST Setup> The board provide one CFAST slot which supports SATA3 interface. The CFAST has the same size with CF card, but it shows higher efficiency and stability to transmit SATA signal. CFAST plug closeup Installing the CFAST in the back of the board. -
Page 24: Front Panel Switch And Indicator
LV-67U User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- 2.4.9 <Other interface> CN_PS2 CN_SMBUS CN_I2C CPUFAN CN_DIO... - Page 25 LV-67U User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB Note: Support TPM module. CN_PS2: PS/2 10-pin header (Pitch 2.54mm)
-
Page 26: Power Supply
LV-67U User’s Manual CN_SMBUS: SMBus 5-pin connector CN_I2C: I2C 5-pin connector Signal Signal SMBDAT I2C_SDA SMBCLK I2C_SCL CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input>... -
Page 27: Power Output
LV-67U User’s Manual DC_IN: ATX12V 4-pin connector Signal Signal 9~24V 9~24V ATX: main power 24-pin connector (As input) Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V 2.5.2 <Power output> It is supply to the HDD, CD-ROM or other device. -
Page 28: Appendix A
LV-67U User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Insyde BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: LV-67U reflash tool A.2 <Flash BIOS process>... -
Page 29: Appendix B
LV-67U User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. Find the setting from Fornt page----->... - Page 30 LV-67U User’s Manual There are 16 resolutions in Panel Number. BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
-
Page 31: Appendix C
LV-67U User’s Manual Appendix C <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device... -
Page 32: Appendix D
LV-67U User’s Manual Appendix D <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device... -
Page 33: Appendix E
LV-67U User’s Manual Appendix E <SuperIO Setting> Press Delete to enter BIOS Setup menu On Front Page screen, click Setup Utility On Advenced screen, click SIO NUVOTON6106D There are 5 functions in the page. 1.WDT(Watch Dog Timer) 2.Power Loss setting 3.Hardware monitor... -
Page 34: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -33-...
