Figure 12
shows an example of the display immediately after switching on
the power. This display disappears after a few seconds, replaced by the
normal display.

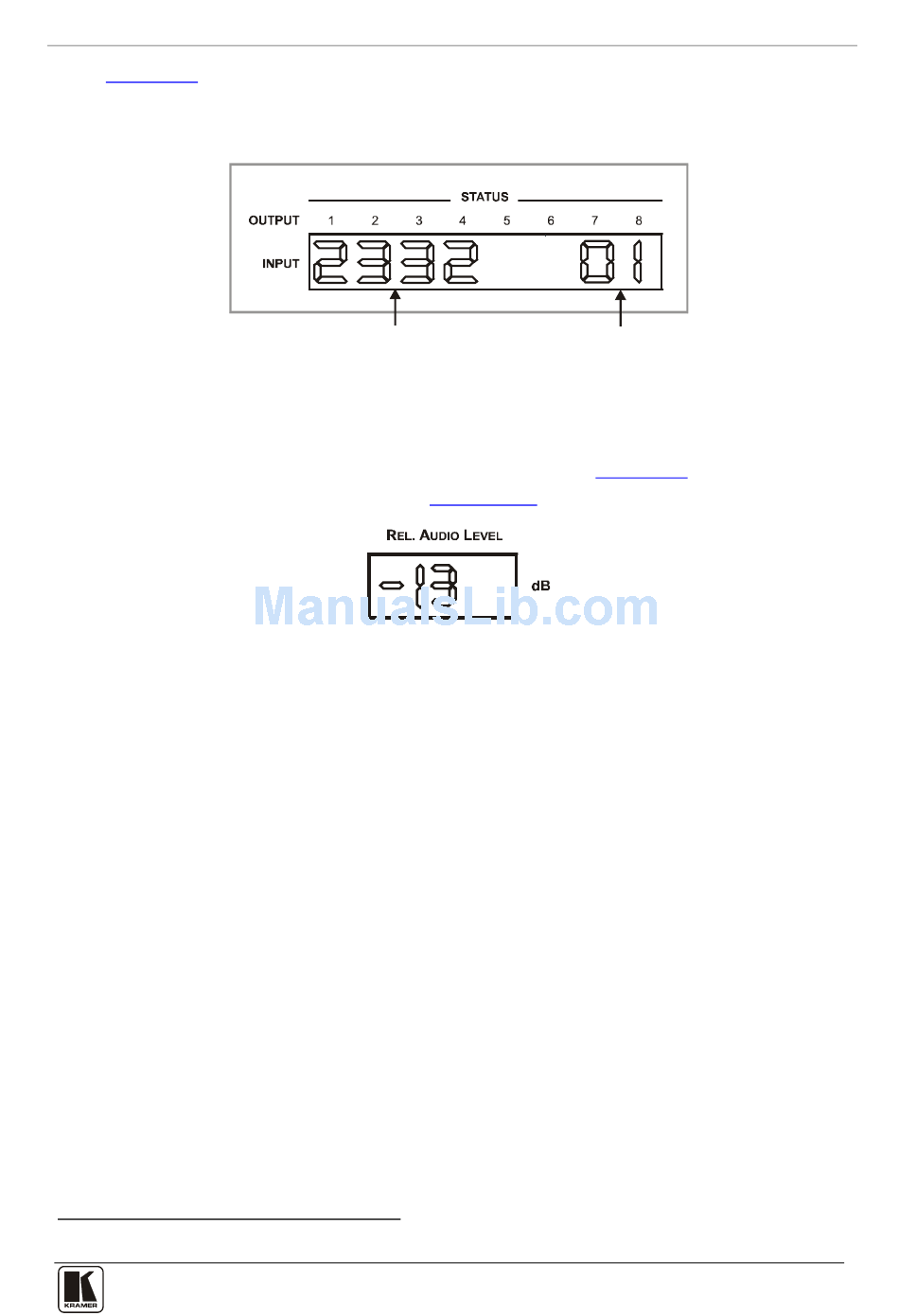

Figure 12: 7-segment Display after Turning the Switcher ON
7.2.2 The REL AUDIO LEVEL 7-Segment Display
The REL AUDIO LEVEL display, as illustrated in
the AUDIO and AFV modes (see
7.3
Confirming Settings
You can choose to work in the At Once or the Confirm mode.
In the At Once mode (TAKE button does not illuminate):
•
Pressing an OUT-IN combination implements the switch immediately
•
You save time as execution is immediate and actions require no user
confirmation
•
No protection is offered to allow the correction of an erroneous action before
it is implemented
In the Confirm mode (TAKE button illuminates):
•
You can key-in several actions and then confirm them by pressing the TAKE
button, to simultaneously activate the multiple switches
•
Every action requires user confirmation, protecting against erroneous
switching
•
Execution is delayed
1 Failure to press the TAKE button within 40 seconds (the Timeout) will abort the action
Operating the VP-4x8AK
Firmware
version #
Figure 13: REL AUDIO LEVEL 7-segment Display
1
until the user confirms the action
Machine #
Figure
Section
7.7).
13, is active only in
21
