Billion BiPAC 5210S RC Features & Specification

Easy Web Easy Web
Configuration Configuration

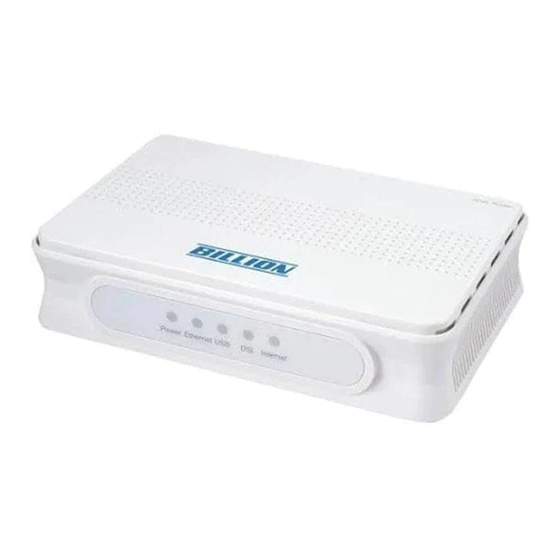

BiPAC 5210S RC

Dual-Port ADSL2+ Modem/Router
Billion's BiPAC 5210S RC is an easy-to-use yet economical pack of ADSL2+ Modem/Router with one Ethernet
port and one USB port. It complies with the latest ADSL industry standards, ADSL2 and ADSL2+, for high-speed
Internet access. The BiPAC 5210S RC can connect directly to two computers, or more by using a switching hub,
through USB and Ethernet ports, users can easily benefit from express speed and better data transmission via
firmware upgrades to ADSL2 / ADSL2+*. Powerful SOHO Firewall features are integrated to protect users from
hacker attacks and ensures high-level security with VPN pass-through. In addition, Universal Plug-and-Play
compliance and the Web-based user interface make network management easy. The BiPAC 5210S RC is truly
a value-for-money model designed for home and SOHO Users.
Express Internet Access
The router complies with worldwide ADSL standards. It supports downstream rates of up to 12/24 Mbps with
ADSL2/2+, 8 Mbps with ADSL, and upstream rates of up to 1 Mbps. With this technology, users enjoy not
only high-speed ADSL service but also broadband multimedia applications such as interactive gaming,
video streaming and real-time audio much more quickly and easily than ever. Particularly, the Annex A+M model
also supports the latest ADSL2/2+ for higher upload speeds by doubling the upstream data rate.
SOHO Firewall Security
Along with the built-in NAT firewall feature, the router's advanced anti-hacker pattern-filtering protection feature
automatically detects and blocks Denial of Service (DoS) attacks. In addition to the NAT technology, the
BiPAC 5210S RC supports Packet Filtering for high-level security control.
Easy Network Management
The Web-based User Interface makes the BiPAC 5210S RC extremely easy for users to install and manage the
network. The router supports DHCP client and server, enabling system administrators to easily fit this router into
existing network environment and manage the IP assignment without re-configuring other stations. Furthermore, future
firmware upgrades can be downloaded via the user-friendly Web-based Interface.
Dual Flexibility
The BiPAC 5210S RC integrates both USB and Ethernet LAN interface into one box. Whenever you like,
BiPAC 5210S RC lets you connect your computer by either USB cable or Ethernet port to access the Internet.
You can easily share your Internet connection and multimedia applications with other users. Just "plug and play"
and experience dual-flexibility of 10/100 Ethernet and USB at the same time.
BiPAC 5210S RC Front Panel
BiPAC 5210S RC Rear Panel
• High speed Internet access with
ADSL2/2+; backward compatible
to ADSL
• Integrated with USB and
10/100 Ethernet Interface
• Easy Network Management
• SOHO Firewall Security with
DoS Prevention and Packet
Filtering
• Universal Plug and Play (UPnP)
Compliance
• Dynamic Domain Name System
(DDNS)
• Supports Virtual Private Network
(VPN) pass-through
• Ideal for home and SOHO users
