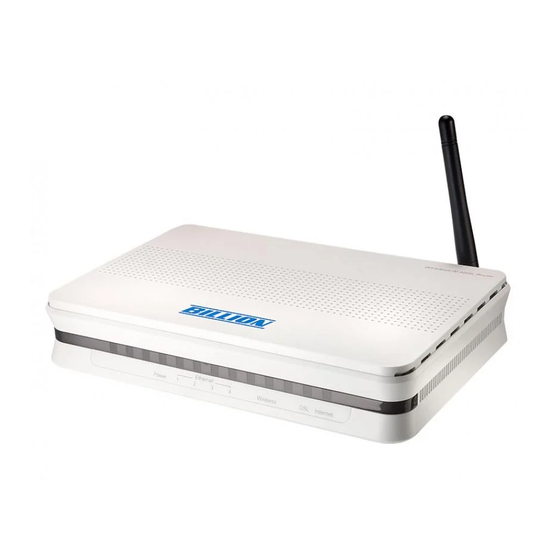

- Page 1 BiPAC 5200W BiPAC 7300W Wireless-N ADSL2+ Firewall Router Quick Start Guide...
- Page 3 Billion BiPAC 5200W/ 7300W Wireless-N ADSL2+ Firewall Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON THE CD-ROM.
-
Page 4: Quick Start Guide
Quick Start Guide The Front LEDs Lit green when the device Lit green when a wireless connection is established. is successfully connected Lit red when power is on. to an ADSL DSLAM. (“Line Blink when data is being Lit green when the sent / received. - Page 5 Billion BiPAC 5200W/ 7300W Wireless-N ADSL2+ Firewall Router BiPAC 5200W BiPAC 7300W – ADSL Router Mode BiPAC 7300W – Broadband Router Mode...
- Page 6 Quick Start Guide 1. Power Connection Plug the supplied power adapter to the wall jack and the other side to the router. Please note that the plug type may differ according to country. 2. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the other side to the PC’s Ethernet interface.
- Page 7 Billion BiPAC 5200W/ 7300W Wireless-N ADSL2+ Firewall Router 5. Splitter/ Micro-filter Connection Splitter / Micro-filter are important for ADSL installation. High-frequency signals are directed to the ADSL modem, and low-frequency signals are directed to the telephone or other analog voice-channel device to prevent inter-modulation distortion and also to get good speed and stable ADSL sync rate.
- Page 8 Troubleshooting chapter, please contact the dealer where you purchased this product. WORLDWIDE http://www.billion.com Billion is committed to before and after sales customer services. You will get the most out of your Billion's products after registration. Please register online at http://www.billion.com/register to receive valuable services and support from us.
