Your 7508 CV/YC to SDI Converter

Figure 1 and
#
1 12V DC
2 SDI OUT 2 BNC Connector Connects to the SDI acceptor 2
3 SDI OUT 1 BNC Connector Connects to the SDI acceptor 1
4 Y/C INPUT 4-pin Connector Connects to the s-Video source
5 CV INPUT BNC Connector
6
ON LED
7 RS-232 Port
8 Dipswitches
4
Your 7508 CV/YC to SDI Converter
Table 1 define the 7508 CV/YC to SDI Converter:

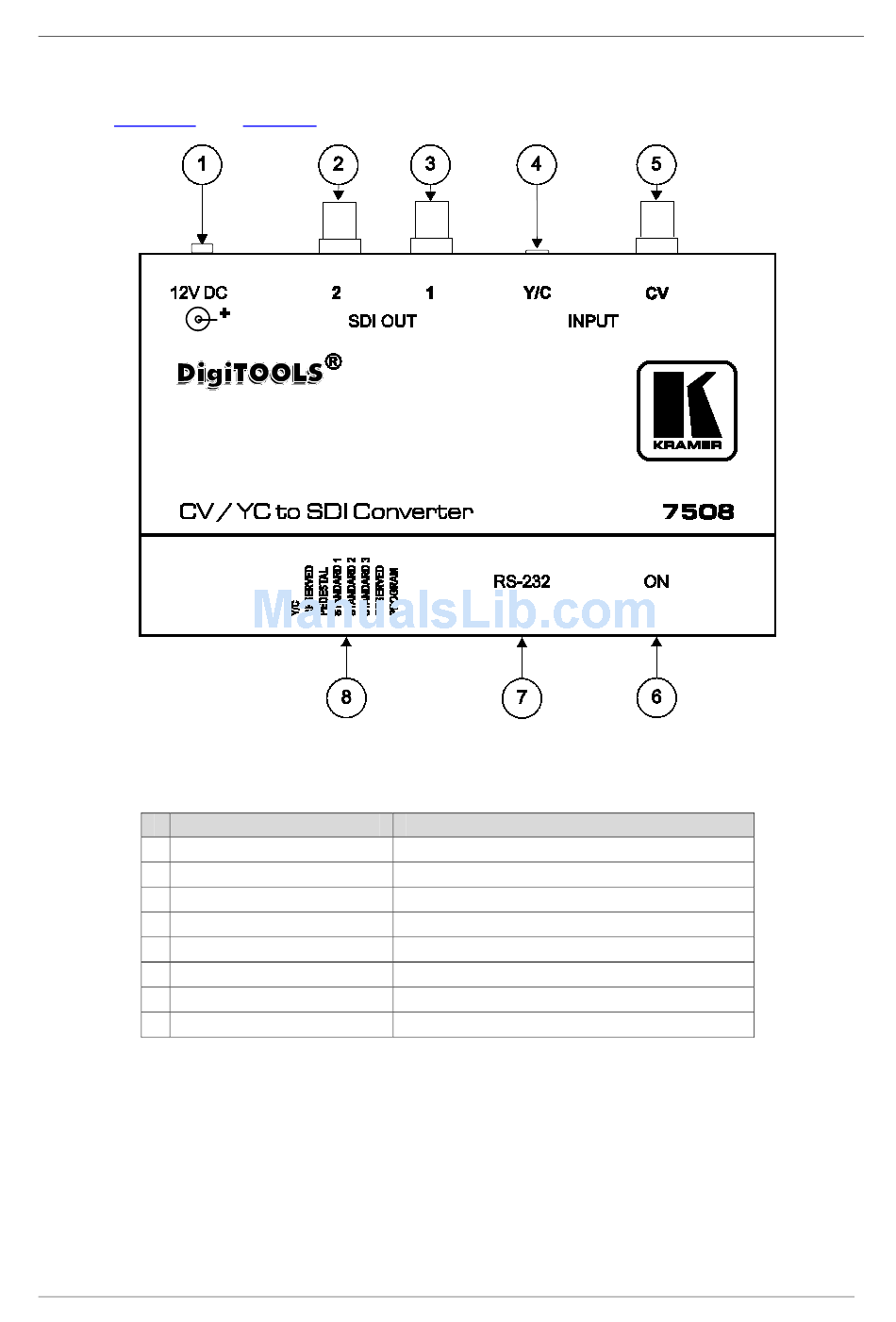

Figure 1: 7508 CV/YC to SDI Converter

Table 1: 7508 CV/YC to SDI Converter Features

Feature
+12V DC connector for powering the unit
Connects to the composite video source
Illuminates when receiving power
Connects to the PC or the remote controller
DIP-switches for setup of the unit
Function
KRAMER: SIMPLE CREATIVE TECHNOLOGY
