Summary of Contents for Kramer DigiTOOLS 7508
- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: 7508 CV / YC to SDI Converter...
-
Page 2: Table Of Contents
Table 1: 7508 CV / YC to SDI Converter Features Table 2: Setting the Dipswitches Table 3: Technical specifications of the 7508 CV / YC to SDI Converter Table 4: Structure of the Protocol Table 5: Instruction Set for the 7508... - Page 3 1 For example: model number AD2512C, part number 2535-000251 – No operator-serviceable parts inside unit. – Use only the Kramer Electronics input power – Disconnect power and unplug unit from wall 2900-9999992...
-
Page 4: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables and Connectors” in the Products section) -
Page 5: Your 7508 Cv / Yc To Sdi Converter

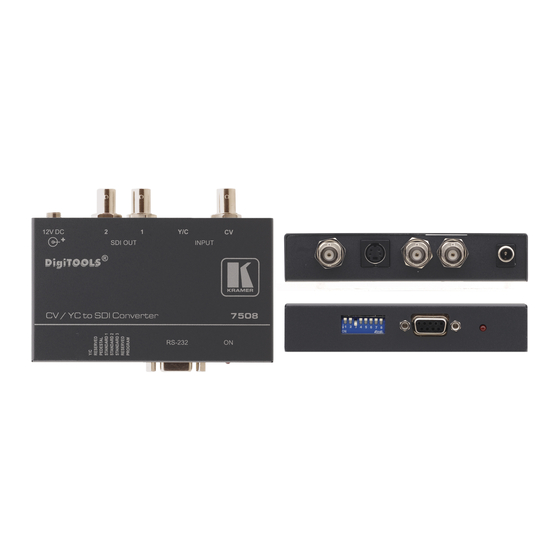

Your 7508 CV / YC to SDI Converter Figure 1 and Table 1 define the 7508 CV / YC to SDI Converter: Figure 1: 7508 CV / YC to SDI Converter Your 7508 CV / YC to SDI Converter... -
Page 6: Using Your 7508 Cv / Yc To Sdi Converter
6. Connect a PC (if required) to the RS-232 port (see section 5.1). 1 Switch OFF the power on each device before connecting it to your 7508. After connecting your 7508, switch on its power and then switch on the power on each device... -
Page 7: Connecting A Pc
To connect a PC to the 7508 unit, without using a Null-modem adapter: • Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel port on the 7508 unit, as Figure 3 illustrates (depending on whether the PC has a 9-pin or 25-pin connector) -
Page 8: Setting The Dipswitches
Using Your 7508 CV / YC to SDI Converter Figure 3: Connecting a PC without using a Null-modem Adapter 5.2 Setting the Dipswitches Configure the 7508 unit by setting the dipswitches, as Table 2 defines: Dipswitch Set as follows: ON for Y/C source; OFF for CV source... -
Page 9: Technical Specifications
ACCESSORIES: 1 Specifications are subject to change without notice Technical Specifications of the 7508 CV / YC to SDI Converter 1 composite video: 1Vpp / 75Ω on a BNC connector 1 s-Video: 1Vpp, 0.3Vpp / 75Ω on a 4p connector 2 SDI: SMPTE-259M, ITU-R BT.601 on BNC connectors... -
Page 10: Communication Protocol
Communication Protocol RS-232 communication with the 7508 complies with the following protocol. The protocol uses 4 bytes of information, and data is at 9600 baud, with no parity, 8 data bits and 1 stop bit. TO PC 1st byte 2nd byte 3rd byte MSB’s... -
Page 11: Table 6: Input Standard
EXTENDED DATA is the value following the decimal point. For example, for version 3.4, the machine replies with DATA = 03 (hex), and EXTENDED DATA = 04 (hex). Communication Protocol Table 6: Input Standard STANDARD NTSC (J, M) PAL (B, G, H, I, N) PAL-M Combination PAL-N NTSC 4.43 KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
