HearthStone Tudor Owner's Manual & Installation Manual

HearthStone Tudor Owner's Manual & Installation Manual

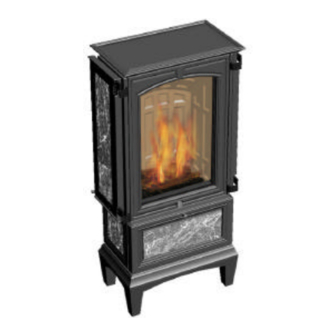

Gas-fired direct-vent heater

Advertisement

Quick Links

WARNING:
If
the
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids near this or any other gas
appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch electrical switches; do not use
the phone in your building.
Immediately call your gas supplier from a
neighbors phone. Follow your gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
A qualified installer, service agency or gas supplier
must perform installation and service.
HearthStone Quality Home Heating Products, Inc.
317 Stafford Avenue,
Morrisville, Vermont 05661-8695
E-Mail: Inquiry@hearthstonestoves.com
Owner's Manual & Installation Guide for the
Tudor
READ THIS OWNER'S MANUAL -
maintain this gas heater according to this instruction manual.
information
in
these
GAS-FIRED DIRECT-VENT HEATER
(8120)
AVERTISSEMENT:
suivre les instructions donné dans cette notice
pour réduire au minimum le risque d'incendie
ou pour éviter tout dommage matéeriel, toute
blessure ou la mort.
Ne pas entresposer ni utiliser d'essence ni d'autre
vaperurs
ou
liquides
voisinage de cet apprareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
Appelez immédiatement votre fournisseur de
gaz depuis un voisin.
du fournisseur.
Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service dos incendies.
L'installation et service doit être exécuté par un
qualifié
installer,
fournisseur de gaz.
Operate and
Assurez-vous
de
inflammables
Suivez les instructions
agence
de
service
Model #8120
bien
dans
le
ou
le
10-04-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tudor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HearthStone Tudor

  • Page 1 L’installation et service doit être exécuté par un A qualified installer, service agency or gas supplier qualifié installer, agence service must perform installation and service. fournisseur de gaz. HearthStone Quality Home Heating Products, Inc. 317 Stafford Avenue, Morrisville, Vermont 05661-8695 E-Mail: Inquiry@hearthstonestoves.com 10-04-04 Model #8120...
  • Page 2: Information Sheet

    Installed by: Phone: Date of Installation: Gas Supplier: Phone: Read this Owner’s Manual before installing or operating the Tudor. Retain this manual for future reference. SERVICE RECORD Important - Verify proper operation after servicing! Date Who Performed Work Work Performed...
  • Page 3: Table Of Contents

    Replacement of the glass panel should be done by a licensed or qualified service person. The Tudor will provide you with years of practical and convenient service. However, as with any gas appliance, the unit must be EVER APER...
  • Page 4 HearthStone Quality Home Heating Products Inc Tudor Model #8120 from furniture, draperies, clothing and flammable materials. Children URFACES Certain exposed surfaces of the Tudor will adults should be alerted to the hazards of reach high temperatures during normal high surface temperatures and should operation.
  • Page 5: Specifications

    Tudor Model #8120 SPECIFICATIONS: : Gas-Fired Direct-Vent Fireplace Heater ISTED AS Model: Tudor Direct-Vent Gas Fireplace Heater (8120) Testing Agency: OMNI-Test Laboratories, Inc. Tested to: ANSI Z21.88-B 2003, CSA 2.33-M02, CAN/CGA2.17-M91 Certified for Canada, CSA P.4.1 Approved for Mobile Home Installation...
  • Page 6: Owner ' S Information

    By ERVICE AUTION adjusting the variable output control located If you believe your Tudor is not, in any way, on the gas control valve, the rate of heat performing properly, immediately...
  • Page 7: Installer

    Unpack and Inspect for Damage Manufactured Home Construction The Tudor is packaged by the manufacturer Safety Standard, Title 24 CFR, Part 3280 withstand shipment without damage. (U.S.) or Standard for Manufactured Home However, damage can still occur during...
  • Page 8: Clearance To Combustibles

    LOOR combustible materials exposed to heat by ROTECTION this product; therefore, an assessment The Tudor may be placed on any surface or must be made by the installer to prevent wood floor, carpeting, or vinyl tile, with or consequential damage walls flooring.
  • Page 9 HearthStone Quality Home Heating Products Inc Tudor Model #8120 * For fully operational doors use a 3" corner clearance Clearance To Combustibles and Alcove Dimensions. Minimum Alcove height is 40" Figure 2 Clearance to combustibles Insulation 6" straight blanket Termination...
  • Page 10 HearthStone Quality Home Heating Products Inc Tudor Model #8120 Acceptable Direct-Vent TERMINATION Cap locations. Figure 4 Termination clearances...
  • Page 11: Venting Information

    The restriction plate has unlimited front to back of the thimble. settings. Depending vent 2. The Tudor Direct Vent is approved configuration, you may be required to adjust for installation only with the vent the restriction plate position. For straight connecting components listed;...
  • Page 12 HearthStone Quality Home Heating Products Inc Tudor Model #8120 Figure 6 Venting configurations...
  • Page 13 ENTING OMPONENTS comprised appropriate venting ONFIGURATION components as specified. The Tudor cannot be vented jointly with any other solid fuel or gas appliance. It must be PPROVED ENTING YSTEM vented directly to the outside of the building OMPONENTS using a proper termination as listed in the HE FOLLOWING ARE COMPONENTS THAT manual.
  • Page 14 HearthStone Quality Home Heating Products Inc Tudor Model #8120 6"straight Termination 14" snorkel Wall thimble wall thimble wall thimble cover (optional) Wall thimble cover (optional) 6"straight When installing Wallpass the wall pass through through you insulation must add the blanket...
  • Page 15 HearthStone Quality Home Heating Products Inc Tudor Model #8120 should point up. Secure the cap to the wall with the appropriate screws. Move the stove and vent pipe into position. Make sure the 6” vent pipe extends into the horizontal vent cap a minimum of 1-1/4”).
  • Page 16: Electrical Connections

    IRING controlled by a 750 millivolt DC two-wire circuit. The thermostat should be connected to the Tudor using no more than 40’ (12 m) of the provided insulated thermostat wire. The EMOTE ONTROL thermostat wire from the Tudor to the...
  • Page 17 HearthStone Quality Home Heating Products Inc Tudor Model #8120 IRING NSTRUCTIONS CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. (Attention: Au moment de l’entretien des commandes, étiquetez tous les fils avant le débranchement.
  • Page 18: Gas Supply & Connections

    The gas supply connection is made to the valve, or other components due to the Tudor’s gas control valve in the middle of lack of a sediment trap are not covered the lower rear of the stove, using a 3/8” male by warranty.
  • Page 19: Log Placement

    We recommend a flexible line to avoid undue mechanical load on the valve Only the Firelog set supplied with the Tudor and to ease thread alignment, but refer to should be placed in the firebox. Do not place local codes.
  • Page 20 HearthStone Quality Home Heating Products Inc Tudor Model #8120 Gently place the TEK burner in the firebox. There are two locator tabs on the left side and one on the right side. Ensure these tabs find the mating slots in the firebox sides. When installed it...
  • Page 21 Ne pas l’utiliser avec d’autres gas sauf si un kited conversion certifié est installé. ) MOKE AND UMES ARNING When lit for the first time, the Tudor will emit some smoke and fumes. This is normal “off-gassing” of the paints and oils used in...
  • Page 22: Initial Adjustments

    URNER NITIAL DJUSTMENTS The standing pilot light on this gas heater is Once the Tudor has been set in place, lit by using a piezoelectric spark generator connected and assembled as described in the as described elsewhere in this manual.
  • Page 23 HearthStone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent 7. After the pilot lights, turn gas control knob counter-clockwise to “ON”. IGHTING NSTRUCTIONS If the ON/OFF/T’stat switch is set to The gas control knobs and the piezo NOTE: “ON”, the stove should now be lit. If the...
  • Page 24 HearthStone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent unit on). Note that the thermostat controls the on/off cycling of the main burner, but 1. If the flame at the base of the logs is the pilot remains lit regardless of the completely blue, the air shutter may thermostat setting.
  • Page 25 (325 to 500-mv) to power the gas shown in Figure 13. There are several control valve. The flame on the pilot should guidelines to aid in determining if the flame look like Figure 120. Controlling the Tudor pattern is correct: wall-mounted thermostat become erratic, nonexistent, or the unit may 1.
  • Page 26: Routine Maintenance And Care

    SSEMBLY Regularly check to insure the area around The firebox requires periodic cleaning to the Tudor is kept free from combustible prevent the accumulation of dust, lint, and materials, gasoline, and other flammable other debris. To clean the firebox, set the vapors and liquids.
  • Page 27 8. Firmly and evenly, press the gasket to EEDED seat it in its channel. Your Tudor uses a 3/4” tape-style fiberglass gasket to make a tight seal between the 9. Sandwich the glass within the glass doorframe and the firebox. In time, the frame and glass gasket clip.
  • Page 28: Parts Lists

    HearthStone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent ARTS ISTS Part # Part Name Part # Part Name CAST 7 2 1 1 - 5 3 6 Ember bed 2 1 1 0 - 2 0 5 Tudor feet...
  • Page 29: Troubleshooting

    HearthStone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent TROUBLESHOOTING Symptom Possible Cause Corrective Action 1. Pilot will not A. Insufficient gas pressure, A. Using the piezo sparker, try to light the light. air in the pilot line, or dirty or pilot.
  • Page 30 HearthStone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent TROUBLESHOOTING Symptom Possible Cause Corrective Action 3. Pilot burning, no A. Thermostat switch or A. Check thermostat/wiring for proper gas to main burner, wires defective. connections. Place jumper wire across valve knob in the terminals at thermostat.
  • Page 31 HearthStone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent TROUBLESHOOTING Symptom Possible Cause Corrective Action 8. Floating flames, A. Potentially dangerous A. Check the appliance input rate and reduce lazy ill-defined, incomplete combustion due if necessary. The air intake/exhaust flow...
  • Page 32 ATING ABEL 8120- MODEL # SERIAL # MODEL NAME: TUDOR DIRECT VENT GAS FIRED HEATER CERTIFIED FOR CANADA/HOMOLOGUE POUR LE CANADA LISTED: GAS FIRED DIRECT VENT HEATER ALSO FOR MOBILE HOME INSTALLATION TESTED TO: ANSI Z21.88-2002 CSA 2.33-M02, CAN/CGA-2.17-M91 CAUTION: DO NOT OPERATE WITH GLASS REMOVED, CRACKED, OR BROKEN.
  • Page 33: Limited Warranties

    Original Purchaser purchases the Stove (the “Purchase Date”). LIMITED LIFETIME WARRANTY HearthStone warrants the following parts of the Stove against the following occurrences that result from defects in material and workmanship: All cast iron parts, including the cast iron heat exchanger – against breakage, cracking or burn-through.
  • Page 34 9. A defect in any part of the Stove if the Original Purchaser fails to comply with HearthStone’s or a Dealer’s request to ship the part or the Stove to HearthStone or a Dealer, as the case may be.
  • Page 35: Warranty Registration

    Stove is located. In the event the Original Purchaser refuses to allow a Dealer to make a service call, HearthStone or a Dealer, as the case may be, will request that the Original Owner return the defective part, or the entire Stove (if needed), with shipping prepaid, to HearthStone or a Dealer.
