WARNING: IF THE INFORMATION IN THESE
INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A
FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS
OF LIFE.
Do not store or use gasoline or other flammable vapors
and liquids near this or any other gas appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch electrical switches; do not use the
phone in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow your gas supplier's
If you cannot reach your gas supplier, call the fire
department or 911.
A qualified installer, service agency or gas supplier must
perform installation and service. In the Commonwealth of
Massachusetts, all installation of gas lines and gas fitting
must be done by a licensed gas fitter or licensed
plumber.
GAS-FIRED, DIRECT-VENT HEATER
Installation & Operation Guide
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE LES
INSTRUCTIONS DONNÉ DANS CETTE NOTICE POUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU POUR
ÉVITER TOUT DOMMAGE MATÉERIEL, TOUTE BLESSURE
OU LA MORT.
Ne pas entresposer ni utiliser d'essence ni d'autre vaperurs ou
liquides inflammables dans le voisinage de cet apprareil ou de
tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur. Ne pas vous servir des
instructions.
téléphones se trouvant dans le batiment où vous vous
trouvez.
Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
Si vous ne pouvez rejoindre le fournisseur de gaz, appelez
le service dos incendies.
L'installation et service doit être exécuté par un qualifié
installer, agence de service ou le fournisseur de gaz.
Tudor
Owner's Manual
READ THIS OWNER'S MANUAL
Operate and maintain this gas heater
according to this instruction manual.
(Model 8120)

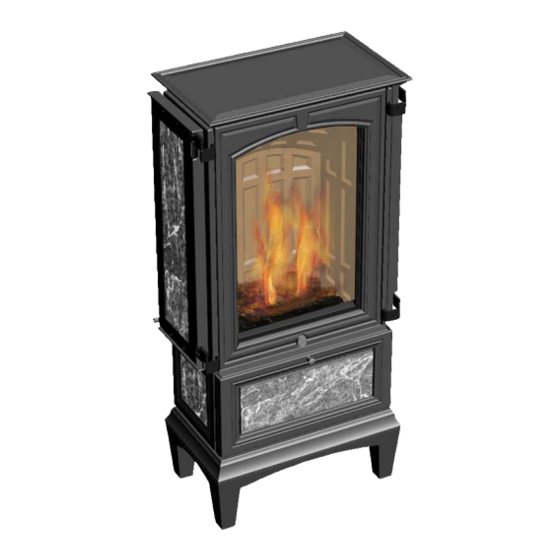

Tudor Model 8120
Manual: 6400-40453
Revised: 1/15/2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tudor 8120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HearthStone Tudor 8120

  • Page 1 Tudor (Model 8120) GAS-FIRED, DIRECT-VENT HEATER Owner’s Manual Installation & Operation Guide READ THIS OWNER’S MANUAL Operate and maintain this gas heater according to this instruction manual. WARNING: IF THE INFORMATION IN THESE AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE LES INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A INSTRUCTIONS DONNÉ...
  • Page 2 Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120...
  • Page 3: Service Record

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 INFORMATION SHEET Use this page to record all relevant information concerning the purchase, installation, and maintenance of your Tudor Gas-Fired Direct-Vent heater. This information will facilitate servicing, purchase of replacement parts, and warranty claims (if necessary).
  • Page 4: Table Of Contents

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 Table of Contents INTRODUCTION ............5 REFRACTORY PANEL INSTALLATION ....20 SPECIFICATIONS ............6 ........... 20 ANEL LACEMENT .......... 20 EMOVAL OF ANEL OWNER’S INFORMATION.......... 7 LOG SET INSTALLATION........21 ............7...
  • Page 5: Introduction

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 NTRODUCTION Congratulations on your purchase of Hearthstone’s EVER APER OOD OR THER Tudor Gas-Fired Direct Vent heater. The Tudor ATERIALS incorporates the latest in balanced vent gas This gas heater is designed to burn natural gas or technology, which will provide you with clean, liquid propane (LP).
  • Page 6: Specifications

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 PECIFICATIONS : Gas-Fired Direct-Vent Fireplace Heater ISTED AS Model: Tudor Direct-Vent Gas Fireplace Heater (8120) Testing Agency: OMNI-Test Laboratories, Inc. Tested to: ANSI Z21.88-B 2003, CSA 2.33-M02, CAN/CGA2.17-M91 Certified for Canada, CSA P.4.1...
  • Page 7: Owner's Information

    AILY PERATION The Tudor is easily operated by the homeowner Use of any components not supplied by Hearthstone once installed and adjusted by qualified service on the stove voids all warranties. Do not substitute personnel. The unit can be controlled via the wall- components.
  • Page 8: Installer's Information

    Note: Vent kits and components are supplied Installation Code that can be obtained from: separately. Failure to use the venting components specified by Hearthstone QHHP, Inc. will void your AMERICAN NATIONAL STANDARDS INSTITUTE, warranty and could risk a fire. INC.
  • Page 9: Installing The Tudor

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 NSTALLING UDOR A complete Tudor REQUIRES the purchase of have been made. Once removed, lift the unit off the one of the following panel kits; legs and set in the desired location.
  • Page 10 Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 Mantle clearance Insulation 6" straight blanket Termination Wall pass through Minumum Venting Components -Rear wall clearance = 0" Figure 3: Minimum vent clearances...
  • Page 11 Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 Acceptable Direct-Vent T ERMINATION OCATIONS Figure 4: Termination clearances...
  • Page 12: Venting Information

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 ENTING NFORMATION ONNECTION ESTRICTION LATE 1. An insulation blanket is provided and must be There is a vent restriction plate that regulates the added to any wall pass through (thimble) kit.
  • Page 13 Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 Figure 6: Venting configurations...
  • Page 14: Venting Components & C

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 11"-14 5/8" Adjustable Pipe Length & ENTING OMPONENTS Horizontal Vent Cap ONFIGURATION Vertical Vent Cap Do not vent the Tudor jointly with any other solid fuel 14” Snorkel or gas appliance. Vent directly to the outside of the Vinyl Siding Standoff 4 x 6 5/8"...
  • Page 15 Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 thimble. Before attaching the vent termination to make sure the 6” pipe slides through the blanket the outside of the house, run a bead of non- insulation that is tucked inside the wall pass hardening mastic around its’...
  • Page 16: Electrical Connections

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 LECTRICAL ONNECTIONS NOTE: open valve door on the lower front for electrical and gas connections. lighting, a heater vent from the central heating HERMOSTAT system, or a nearby drafty window. ON/OFF/T’stat...
  • Page 17: Wiring Schematic

    Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 IRING CHEMATIC CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION. VERIFY PROPER OPERATION AFTER SERVICING. (ATTENTION: AU MOMENT DE L’ENTRETIEN DES COMMANDES, ÉTIQUETEZ TOUS LES FILS AVANT LE DÉBRANCHEMENT.
  • Page 18 Hearthstone Quality Home Heating Products, Inc. Tudor Model #8120 Figure 10: Gas control valve...
  • Page 19: Gas Supply & Connections

    Consult all alignment, but refer to local codes. codes. NFPA Code, and Hearthstone require the use of CAUTION: CHECK GAS TYPE! a dedicated sediment trap just upstream of the unit. Damage to the valve, or other components...
  • Page 20: Refractory Panel Installation

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent EFRACTORY ANEL NSTALLATION CAUTION: Fragile! Handle panel set with 6) Insert the rear panel into the firebox, right edge care. Always wear gloves and safety goggles first, rotate panel flat against rear wall and lower while handling.
  • Page 21: Log Set Installation

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent NSTALLATION CAUTION: Fragile! Handle log set with care. Always wear gloves and safety goggles while handling the log set. Use only the Log set supplied with the Tudor in the firebox.
  • Page 22: Emoval Of Og Et

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent 7) Re-install the glass assembly by lining up the careful not to chip the enamel when installing two tabs on the bottom of the assembly with the the glass assembly or front and top cast.
  • Page 23: Lighting The Unit For The First Time

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent IGHTING THE NIT FOR THE IRST WARNING: IF YOU DO NOT FOLLOW THESE Do not attempt to light the unit with a match or by INSTRUCTIONS EXACTLY, FIRE any means other than the piezoelectric spark.
  • Page 24: Initial Adjustments

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent NITIAL DJUSTMENTS Once the Tudor is set in place, connected and igniter button several times until lit). Continue to assembled as described in the “Clearances To hold the control knob in for about 20 seconds Combustibles”,...
  • Page 25: Urn Ff As Ppliance

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent cycling of the main burner, but the pilot remains lit HUTTER DJUSTMENTS regardless of the thermostat setting. The only way to The air shutter adjuster, located under the valve turn the pilot off is to turn the gas control knob fully access door, in the lower front of the unit, is clockwise to the “OFF”...
  • Page 26: Urner Lame Ppearance

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent temperature and for the flame pattern to stabilize. The flame pattern should be similar to the one PILOT shown in Figure 13. There are several guidelines to FLAME PILOT CLIP aid in determining if the flame pattern is correct: 1.
  • Page 27: Routine Maintenance And Care

    New gasket cause odors when the stove is hot. material available from your Authorized Hearthstone Dealer. Protect your hands with work , & B IREBOX ILOT URNER SSEMBLY gloves, and wash up later. The firebox requires periodic cleaning to prevent the accumulation of dust, lint, and other debris.
  • Page 28: Lass Leaning

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent up where you started. Do not overlap the gasket Special gas appliance window cleaner is available ends or leave ends with ragged edges. from your local HearthStone dealer. 8. Firmly and evenly, press the gasket to seat it in WARNING: DO NOT OPERATE THIS APPLIANCE its channel.
  • Page 29: Parts Lists

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent ARTS ISTS Part # Part Name Part # Part Name CAST 2110-205 Tudor feet ELECTRICAL 2110-210 Tudor base 7000-014 Thermostat wire 40' 2110-220 Tudor front, lower control door 7000-031 HARNESS: WIRE,ON/OFF...
  • Page 30: Troubleshooting

    Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent TROUBLESHOOTING Symptom Possible Cause Corrective Action 1. Pilot will not light. A. Insufficient gas pressure, air in A. Using the piezo sparker, try to light the pilot. If it will the pilot line, or dirty or kinked not light, check the inlet gas pressure.
  • Page 31 Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent TROUBLESHOOTING Symptom Possible Cause Corrective Action 3. Pilot burning, no gas A. Thermostat switch or wires A. Check thermostat/wiring for proper connections. to main burner, valve defective. Place jumper wire across terminals at thermostat. If knob in the "ON"...
  • Page 32 Hearthstone Quality Home Heating Products, Inc. TUDOR 8120 Gas-Fired Direct-Vent TROUBLESHOOTING Symptom Possible Cause Corrective Action 8. Floating flames, lazy A. Potentially dangerous A. Check the appliance input rate and reduce if ill-defined, quiet flames, incomplete combustion due to necessary. The air intake/exhaust flow system may be...
  • Page 33: Rating Label

    There are two different remote controls (kit #90-56912 & kit #90-56914) available through HearthStone or your local HearthStone dealer. This appliance is only for use with the type of gas indicated on this rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes.
  • Page 34: Limited Warranties

    Original Purchaser purchases the Stove (the “Purchase Date”). LIMITED LIFETIME WARRANTY HearthStone warrants the following parts of the Stove against the following occurrences that result from defects in material and workmanship: All cast iron parts, including the cast iron heat exchanger – against breakage, cracking or burn-through.
  • Page 35 Dealer to make a service call at the place where the Stove is located. In the event the Original Purchaser refuses to allow a Dealer to make a service call, HearthStone or a Dealer, as the case may be, will request that the Original Owner return the defective part, or the entire Stove (if needed), with shipping prepaid, to HearthStone or a Dealer.
  • Page 36: Warranty Registration

    Shipping cost for parts: Within the first ninety (90) days after the Purchase Date, HearthStone will pay for the shipping of Stove parts covered by any of the foregoing warranties to and from HearthStone or a Dealer, as the case may be. Thereafter, the Original Purchaser is responsible for all shipping costs related to shipping Stove parts to and from HearthStone or a Dealer, as the case may be.
