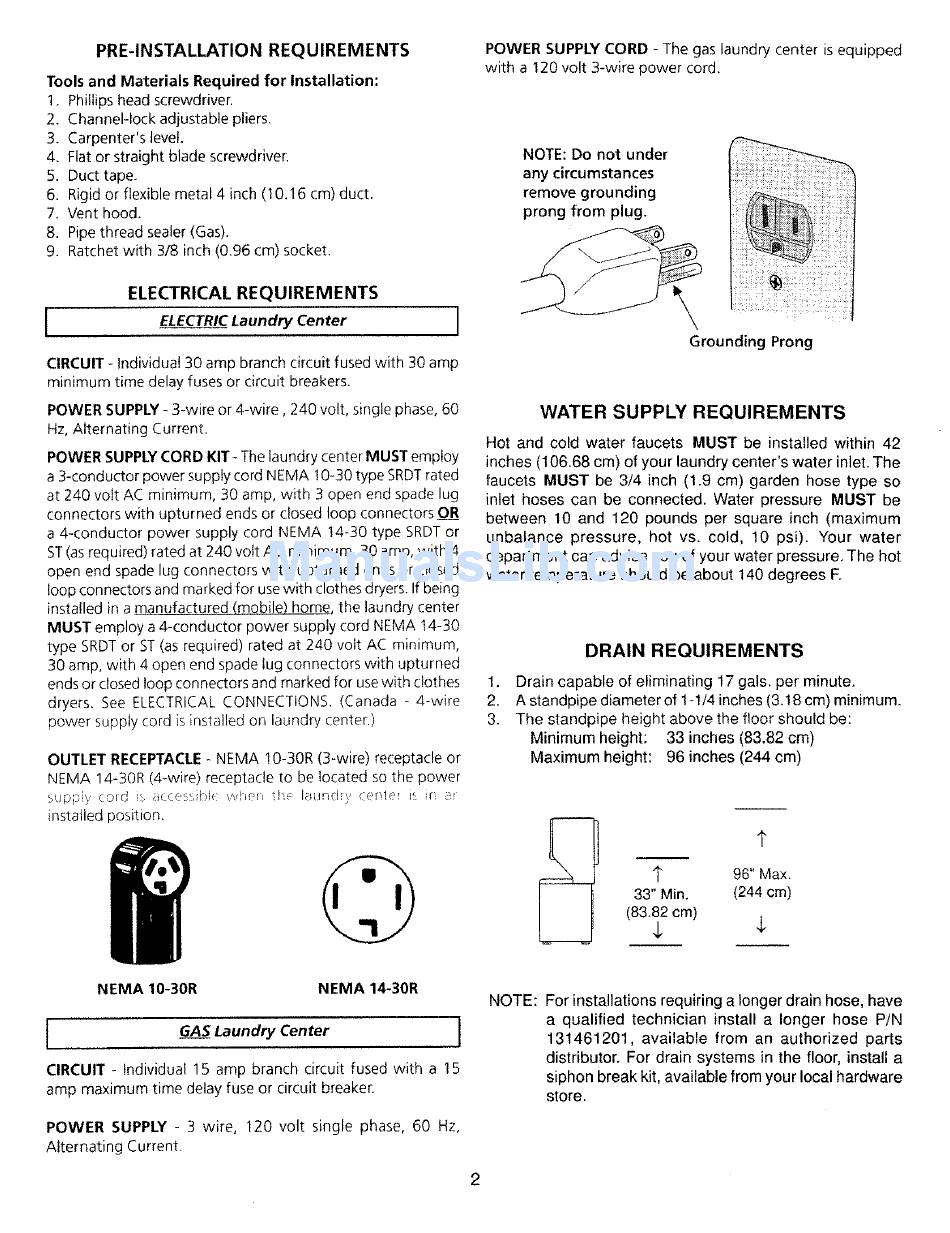

PRE-INSTALLATION
REQUIREMENTS
Tools and Materials Required for Installation:
I. Phillips head screwdriver.
2. Channel-lock adjustable pliers.
3. Carpenter's level.
4. Flat or straight blade screwdriver.
5. Duct tape.
6. Rigid or flexible metal 4 inch (10.16 cm) duct.
7. Vent hood.
8. Pipe thread sealer (Gas).
9. Ratchet with 318 inch (0.96 cm) socket.
ELECTRICAL
REQUIREMENTS
ELECTRICLaundry Center
CIRCUIT - Individual 30 amp branch circuit fused with 30 amp
minimum time delay fuses or circuit breakers.
POWER SUPPLY- 3-wire or 4-wire, 240 volt, single phase, 60
Hz, Alternating Current.
POWER SUPPLYCORD KIT- The laundry center MUST employ
a 3-conductor power supply cord NEMA 10-30 type SRDTrated
at 240 volt AC minimum, 30 amp, with 3 open end spade lug
connectors with upturned ends or closed loop connectors OR
a 4-conductor power supply cord NEMA 14-30 type SRDT or
ST(as required) rated at 240 volt AC minimum, 30 amp, with 4
open end spade lug connectors with upturned ends or closed
loop connectors and marked for use with clothes dryers. If being
installed in a manufactured (mobile) home, the laundry center
MUST employ a 4-conductor power supply cord NEMA t4-30
type SRDTor ST (as required) rated at 240 volt AC minimum,
30 amp, with 4 open end spade tug connectors with upturned
ends or closed loop connectors and marked for use with clothes
dryers. See ELECTRICAl..CONNECTIONS. (Canada - 4-wire
power supply cord is installed on laundry center.)
OUTLET RECEPTACLE- NEMA I0-30R (3-wire) receptacle or
NEMA 14-30R (4-wire) receptacle to be located so the power
su{py
<o_c! i (c,,,iil_
when I'..- lamdy
(erq'r
F _
installed position.
NEMA 10-30R
NEMA 14-30R
GAS Laundry Center
]
CIRCUIT - Individual 15 amp branch circuit fused with a 15
amp maximum time delay fuse or circuit breaker.
POWER SUPPLY - 3 wire, 120 volt single phase, 60 Hz,
Alternating Current.
POWER SUPPLY CORD - The gas laundry center is equipped
with a 120 volt 3-wire power cord.
NOTE: Do not under
any circumstances
remove grounding
prong from plug.
Grounding
Prong
WATER
SUPPLY
REQUIREMENTS
Hot and cold water faucets
MUST be installed within 42
inches (t06.68 cm) of your laundry center's water inlet. The
faucets MUST be 3/4 inch (1.9 cm) garden hose type so
inlet hoses can be connected.
Water pressure
MUST be
between
10 and 120 pounds per square inch (maximum
unbalance
pressure,
hot vs. cold, 10 psi). Your water
department can advise you of your water pressure. The hot
water temperature
should be about 140 degrees R
DRAIN
REQUIREMENTS
1.
Drain capable of eliminating 17 gals. per minute.
2.
A standpipe diameter of 1-t/4 inches (3.t8 cm) minimum.
3.
The standpipe height above the floor should be:
Minimum height:
33 inches (83.82 cm)
Maximum height:
96 inches (244 crn)
I"
33" Min.
(83.82 cm
1"
96" Max.
(244 cm)
NOTE: For installations requtrmg a longer drain hose, have
a qualified
technician
install a longer hose PIN
131461201,
available
from an authorized
parts
distributor.
For drain systems in the floor, install a
siphon break kit, available from your local hardware
store.
