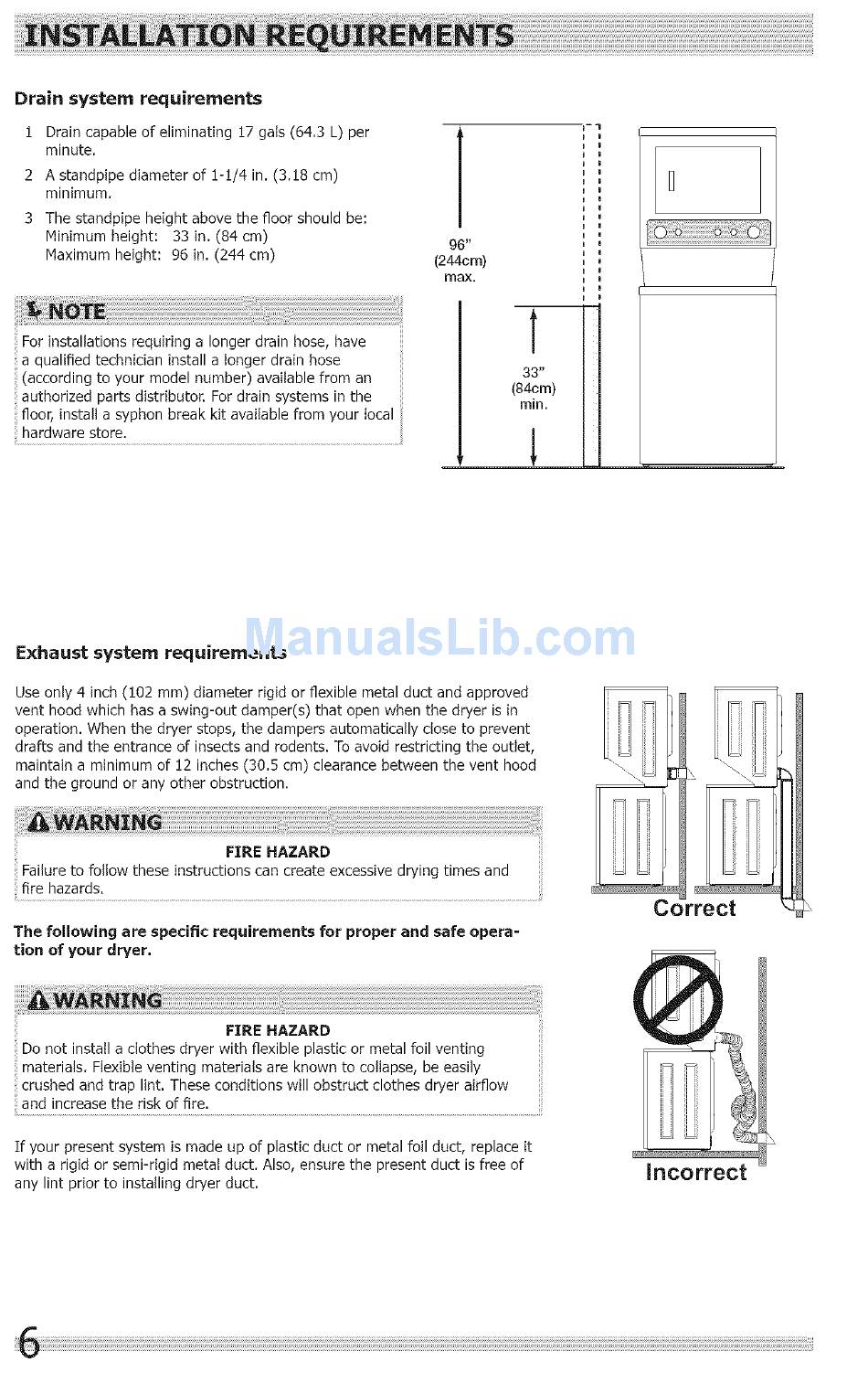

Drain system requirements
! Drain capable of eliminating i7 gals (64,3 L) per
minute.
2 A standpipe diameter of !-i/4 in. (3,i8 cm)
minimum,
3 The standpipe height above the floor should be:
Minimum height: 33 in. (84 cm)
Maximum height: 96 in. (244 cm)
a qualified technician install a longer drain hose
(according to your model number) available from an
authorized parts distributor. For drain systems in the
floor, install a syphon break kit available from your local
hardware store.
96"
(244cm)
IrIs J(.
1
33"
(84cm)
min.
Exhaust system requirements
Use only 4 inch (i02 ram) diameter rigid or flexible metal duct and approved
vent hood which has a swing-out damper(s) that open when the dryer is in
operation. When the dryer stops, the dampers automatically close to prevent
drafts and the entrance of insects and rodents. To avoid restricting the outlet,
maintain a minimum of 12 inches (30.5 cm) clearance between the vent hood
and the ground or any other obstruction.
FIRE HAZARD
Failure to follow these instructions can create excessive drying times and
fire hazards.
The following are specific requirements for proper and safe opera =
tion of your dryer.
FIRE HAZARD
Do not install a clothes dryer with flexible plastic or metal foil venting
materials, Flexible venting materials are known to collapse, be easily
crushed and trap lint. These conditions will obstruct clothes dryer airflow
and increase the risk of fire.
If your present system is made up of plastic duct or metal foil duct, replace it
with a rigid or semi-rigid metal duct, Also, ensure the present duct is free of
any lint prior to installing dryer duct,
Correct
Incorrect
