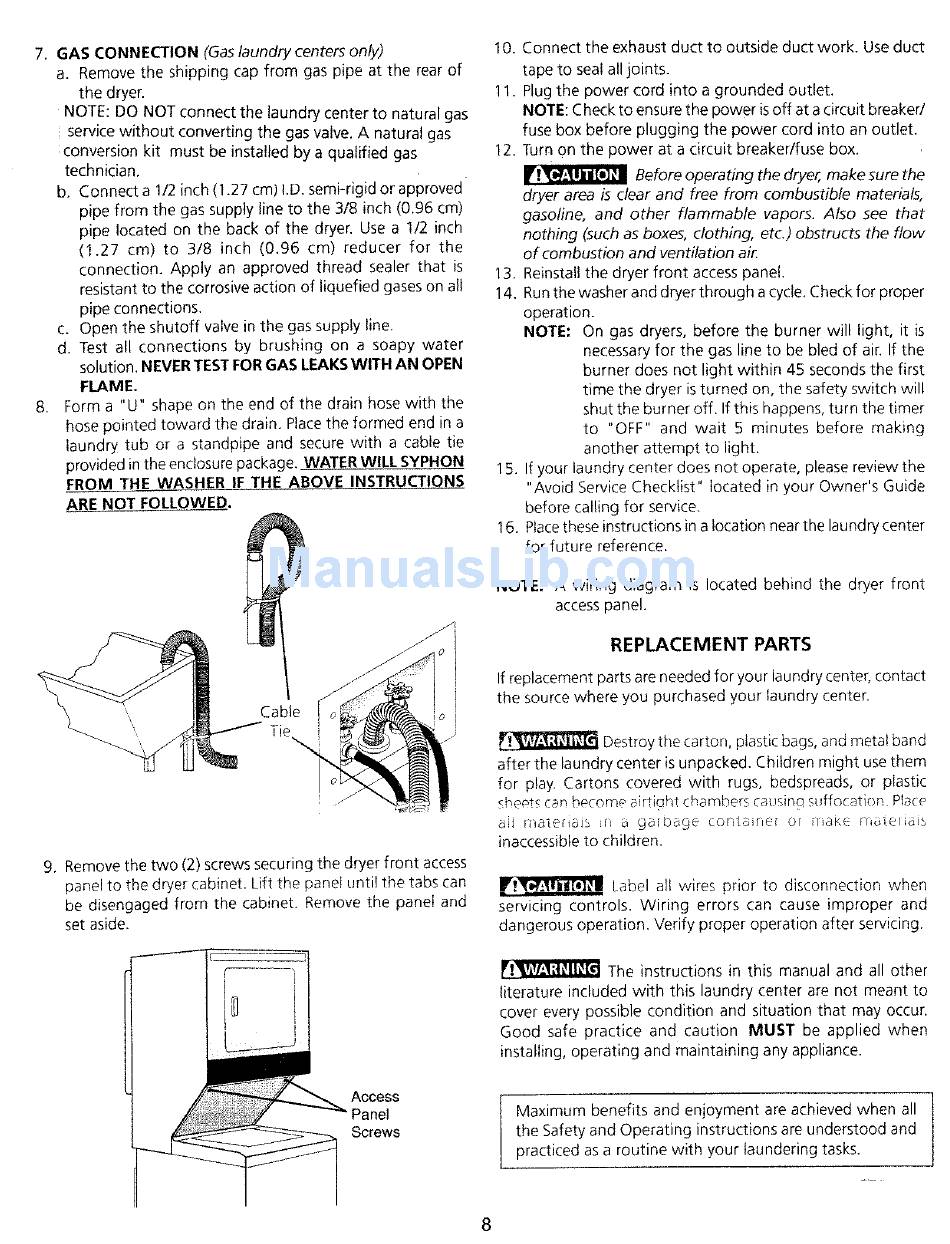

7.
GAS CONNECTION (Gas laundry centers only)
a. Remove the shipping cap from gas pipe at the rear of
the dryer,
NOTE: DO NOT connect the laundry center to natural gas
service without converting the gas valve. A natural gas
conversion kit must be installed bya qualified gas
technician.
b. Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or approved
pipe from the gas supply line to the 3/8 inch (0.96 cm)
pipe located on the back of the dryen Use a 1/2 inch
(I.27 cm) to 3/8 inch (0.96 cm) reducer for the
connection. Apply an approved thread sealer that is
resistant to the corrosive action of liquefied gases on all
pipe connections.
c. Open the shutoff valve in the gas supply line.
d. Test all connections by brushing on a soapy water
solution. NEVER TESTFOR GAS LEAKSWITH AN OPEN
FLAME.
8. Form a "U" shape on the end of the drain }-losewith tile
hose pointed toward the drain. Placethe formed end in a
laundry tub or a standpipe and secure with a cable tie
provided in the enclosure package. WATER WILL SYPHON
FROM THE WASHER IF THE ABOVE INSTRUCTIONS
ARE NOT FOLLOWED.
Cable
Tie
9. Remove the two (2) screws securing the dryer front access
panel to the dryer cabinet. Lift the panel until the tabs can
be disengaged from the cabinet. Remove the panel and
set aside.
10. Connect the exhaust duct to outside duct work. Use duct
tape to seal all joints.
11. Plug the power cord into a grounded outlet.
NOTE: Check to ensure the power isoff at a circuit breaker/
fuse box before plugging the power cord into an outlet.
12. Turn on the power at a circuit breaker/fuse box.
_ Before operating the dryer, make sure the
dryer area is clear and free from combustible materials,
gasoline, and other flammable vapors. Also see that
nothing (such as boxes, clothing, etc.) obstructs the flow
of combustion and ventilation air
13. Reinstall the dryer front access panel.
14. Runthe washer and dryer through a cycle. Check for proper
operation.
NOTE: On gas dryers, before the burner will light, it is
necessary for the gas line to be bled of aic If the
burner does not light within 45 seconds the first
time the dryer is turned on, the safety switch will
shut the burner off. If this happens, turn the timer
to "OFF" and wait 5 minutes before making
another attempt to light.
15. If your laundry center does not operate, please review the
"Avoid Service Checklist" located in your Owner's Guide
before calling for service.
16. Placethese instructions in a location near the laundry center
forfuture reference.
NOTE: A wiring diagram is located behind the dryer front
access panel.
REPLACEMENT PARTS
If replacement parts are needed for your laundry center, contact
the source where you purchased your laundry center.
__ Destroy the carton, plastic bags, and metal band
after the laundry center is unpacked. Children might use them
for play. Cartons covered with rugs, bedspreads, or plastic
_hee!_can becom_ airtight chambers causing suffocatk)n Place
ai iiia[eli8i; [ a
garbage
contame[ or make niokelioi5
inaccessible to children.
Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
The instructions in this manual and all other
literature included with this laundry center are not meant to
cover every possible condition and situation that may occur.
Good safe practice and caution MUST be applied when
installing, operating and maintaining any appliance.
Access
Panel
Screws
Maximum benefits and enjoyment are achieved when all
the Safety and Operating instructions are understood and
practiced as a routine with your laundering tasks.
8
