5, Attach the remaining two power cord outer conductors to
the outer brass colored terminals on the terminal block,
Tighten both screw securely,
6, Tighten the screws securing the cord restraint against the
power cord,
7, Reinstall the terminal access cover,
NON-CANAD/AN
ELECTR/CLaundry Center

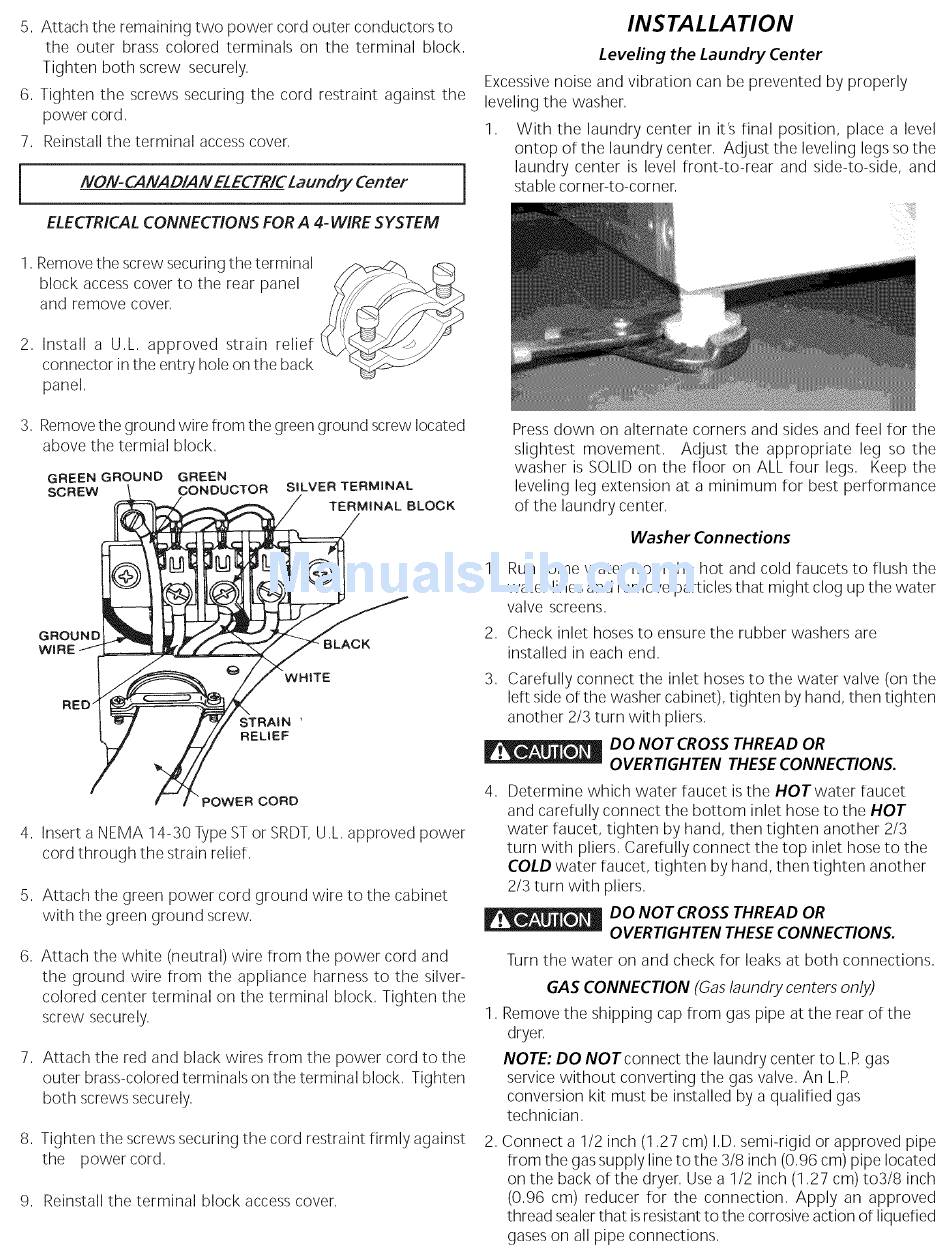

ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM
]
1, Removethe screw securing the terminal
block access cover to the rear panel
and remove cover,
2, Install a U,L, approved strain relief
connector in the entry hole on the back
panel,
INSTALLATION
Leveling the Laundry Center
Excessivenoise and vibration can be prevented by properly
leveling the washer,
1,
With the laundry center in it's final position, place a level
ontop of the laundry center, Adjust the leveling legs so the
laundry center is level front-to-rear
and side-to-side, and
stable corner-to-corner,
3, Remove the ground wire from the green ground screw located
above the termial block,
GREEN
GROUND
GREEN
SCREW
CONDUCTOR
SILVER
TERMINAL
TERMINAL
BLOCK
WHITE
RED /
STRAIN
'
RELIEF
,
POWER
CORD
Insert a NEMA 14-30 Type ST or SRDT,U,L, approved power
cord through the strain relief,
5, Attach the green power cord ground wire to the cabinet
with the green ground screw,
6, Attach the white (neutral) wire from the power cord and
the ground wire from the appliance harness to the silver-
colored center terminal on the terminal block, Tighten the
screw securely,
7, Attach the red and black wires from the power cord to the
outer brass-colored terminals on the terminal block, Tighten
both screws securely,
8, Tighten the screws securing the cord restraint firmly against
the
power cord,
9, Reinstall the terminal block access cover,
Press down on alternate corners and sides and feel for the
slightest movement,
Adjust the appropriate
leg so the
washer is SOLID on the floor on ALL four legs, Keep the
leveling leg extension at a minimum for best performance
of the laundry center,
Washer Connections
,
,
3,
Run some water from the hot and cold faucets to flush the
water lines and remove particles that might clog up the water
valve screens,
Check inlet hoses to ensure the rubber washers are
installed in each end,
Carefully connect the inlet hoses to the water valve (on the
left side of the washer cabinet), tighten by hand, then tighten
another 2/3 turn with pliers,
DO NOT CROSS THREAD OR
OVERTIGHTEN THESECONNECTIONS.
,
Determine which water faucet is the HOTwater
faucet
and carefully connect the bottom inlet hose to the HOT
water faucet, tighten by hand, then tighten another 2/3
turn with pliers, Carefully connect the top inlet hose to the
COLD water faucet, tighten by hand, then tighten another
2/3 turn with pliers,
DO NOT CROSS THREAD OR
o
.
v
OVERTIGHTEN THESE CONNECTIONS.
Turn the water on and check for leaks at both connections,
GAS CONNECTION (Gaslaundry centers only)
1, Remove the shipping cap from gas pipe at the rear of the
dryer,
NOTE: DO NOTconnect the laundry center to L,R gas
service without converting the gas valve, An L,R
conversion kit must be installed by a qualified gas
technician,
2, Connect a 1/2 inch (1,27 cm)I,D, semi-rigid or approved pipe
from the gas supply line to the 3/8 inch (0,96 cm) pipe located
on the back of the dryer, Use a 1/2 inch (1,27 cm) to3/8 inch
(0,96 cm) reducer for the connection, Apply an approved
thread sealerthat isresistant to the corrosive action of liquefied
gases on all pipe connections,
