INSTALL INSTRUCTIONS C-TCB-17
2004 FORD F-150 (HERITAGE ONLY) PICK-UP
NOTE: HERITAGE IS 2003 BODY STYLE CARRIED OVER TO 2004. FOR 2004
FORD F-150 NEW BODY STYLE USE C-TCB-31
TOOLS REQUIRED:
3/16" Allen wrench
3/8" Standard socket set
3/8" Metric socket set
HARDWARE & COMPONENTS:
QTY DESCRIPTION
1
Pole support assembly
1
Telescoping pole assembly w/ 4" offset
1
¼ x 1" Hex head lag bolt
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit

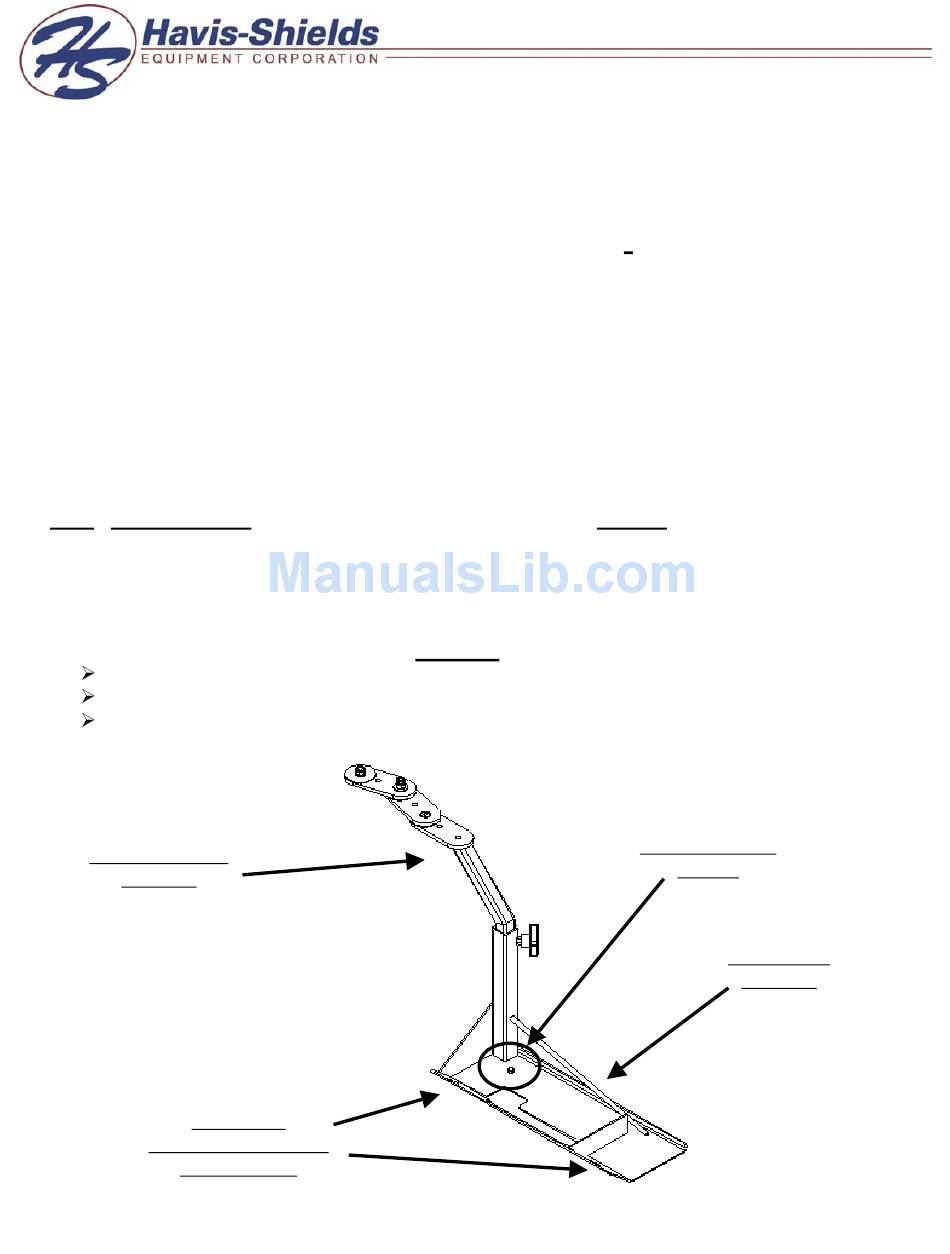

Telescoping pole
assembly
Location of
passenger side factory
seat base bolts
TELESCOPING COMPUTER BASE
1997-2003 FORD F-150 PICK-UP
Always
Ratcheting wrench (3/8" drive)
Powered drill w/ 3/16" drill bit
Open-end wrench set
PART #
CM93071-17
CM93072-3
GSM33060
!
¼ x 1" Hex head
lag bolt
Pole support
assembly
C-TCB-17-INST-12-04
Advertisement
Table of Contents
Related Manuals for Havis-Shields Telescoping Computer Base C-TCB-17
Summary of Contents for Havis-Shields Telescoping Computer Base C-TCB-17
- Page 1 Telescoping pole assembly w/ 4” offset ¼ x 1” Hex head lag bolt Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit...
- Page 2 SUB ASSEMBLY: 1. Confirm receipt of all hardware and components. 2. Remove front inner and outer passenger seat bolts on vehicle. INSTALLATION: 1. Mount C-TCB-17 into vehicle: • Position pole support assembly between seat base mount and floor of vehicle •...
