INSTALLATION INSTRUCTIONS KK-K9-F12-K

TOOLS REQUIRED:

Power Drill
Standard & Metric Socket Sets
Phillips Screw Driver
7/16" Wrench
Wire Cutters / Crimping tool
HARDWARE: Some of this hardware is already attached.
QTY: DESCRIPTION:
28 ¼-20 X ½" Stainless carriage bolts
30 ¼-20 X ¾" Stainless carriage bolts
64 ¼-20 Serrated nuts
6 ¼-20 X ¾" Hex head Cap Screw Zinc
14 ¼" X 1 ½" Hex head lag screw
36 #12 X ¾" Stainless sheet metal screws
24 #10 X ¾" Stainless sheet metal screws
22 #10 X ½" Stainless sheet metal screws
6 #10 X ¾" Sheet metal screws
20 #10 X ½" Sheet metal screws
1 Tube Silver Caulk
1 46" X 45 1/2" Rubber Mat
11 1/2 feet Adhesive Molding

SUB ASSEMBLY:

• Dome light with wire
• Tunnel edge molding
• Install exhaust fans (Optional). If locating in custom
location drill 4 ½" hole into desired location of K-9
housing. Mark and drill 3/16" mounting holes to
attach fan using (4) 10/32" X ½" machine screws and
10/32" keps nuts. Then mark and drill 3/16" holes to
mount fan guard using 10/32" X ½" machine screws
and 10/32" keps nuts.

INSTALLATION:

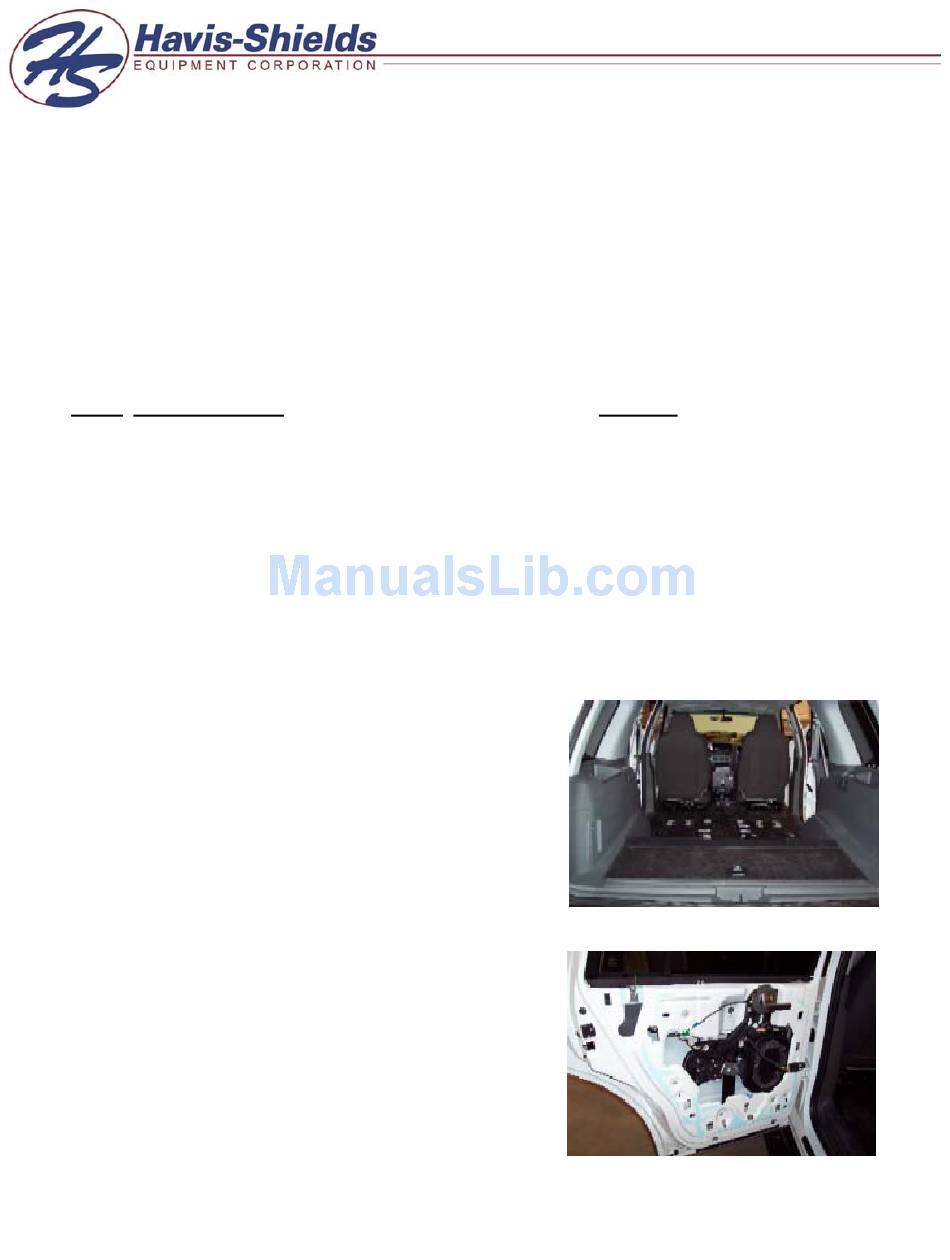

1. Remove interior:

• Remove rear seats
• Remove rear seat belt assembly
• Remove top, and bottom plastic rear trim caps
2000-2006 FORD EXCURSION
Ratchet Wrench With 6" Extension
Torx Bit Set
4 ½" Hole Saw (Exhaust Fan Option)
Caulk Gun
PART #:
GSM 32022
GSM 32024
GSM 30023
GSM33001
GSM 33062
GSM 34177
GSM 34170
GSM 34169
GSM 33195
GSM33194
PRM 97343
KNM01029-SUV
