Installation INSTRUCTIONS KK-K9-C14-K-32
2000-2006 CHEVROLET TAHOE / GMC YUKON (4 Door)
TOOLS REQUIRED:
Power drill
Drill bit set
Standard & metric socket sets
Phillips screwdriver
HARDWARE:
QTY DESCRIPTION
20
¼-20 x ½" Stainless Carriage Bolts
30
¼-20 x ¾" Stainless Carriage Bolts
50
¼-20 Hex Flange Serrated Nuts Zinc
6
¼" x 1" Hex Head Lag Bolt
22
#12 x ¾" Stainless Sheet Metal Screws
24
#10 x ¾" Sheet Metal Screws Stainless
12
#10 x ½" Sheet Metal Screws Stainless
10
10-32 x ¾" Machine Screw Screws Stainless
6
#10 x ¾" Sheet Metal Screws Zinc
1
Tube Silver Caulk
1
32" x 45" x ½" Rubber Mat
Read all instructions before installing any Havis-Shields Equipment Corp products.
Disconnect the vehicle battery. Removing seat bolts on some vehicles may give the vehicles
computer a false reading, causing a warning light on the instrument cluster. This requires the
vehicles' computer to be reset with a vehicle diagnostics tool.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use only hardware provided with install kit.
For product support, visit the Install Instructions Section of our website at
http://havis.com/Installation/Installation.html, email
524-9900 and ask for technical support.
SUB ASSEMBLY:
• Mount dome light to ceiling and attach wire
• Remove rear seats and door panels.
• Remove trim panels around the rear door opening to minimize damage while sliding main
housing assembly into the vehicle.
• Attach rear housing extension plate to K9 floor using ¼" x ¾" Carriage bolts and serrated
nuts. The carriage bolt will go up from the bottom. It may be necessary to drill holes to
accommodate the extension plate due to the various models.

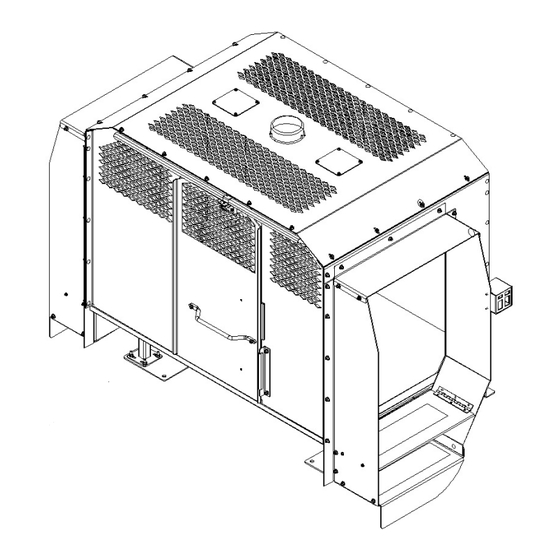

32" K9 TRANSPORTATION SYSTEM
Open-end wrench set
Wire cutters / Crimping tool
Ratcheting wrench
PART #
GSM32022
GSM32024
GSM30023
GSM33060
GSM34177
GSM34170
GSM34169
GSM34098
GSM33195
PRM97343
KNM01029
Always
!
technicalsupport@havis.com
or call 1-800-
