Install Instructions C-TTB-CV
TOOLS REQUIRED:
Ratcheting wrench
Sockets - 7/16", #10, #8
HARDWARE:
ITEM#
QTY DESCRIPTION
1
1
2
1
3
1
4
1
5
1
11
11
5
4
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
(Bolts to back seat wall)
3
4
(Attaches w/ 8-32 keps nuts)

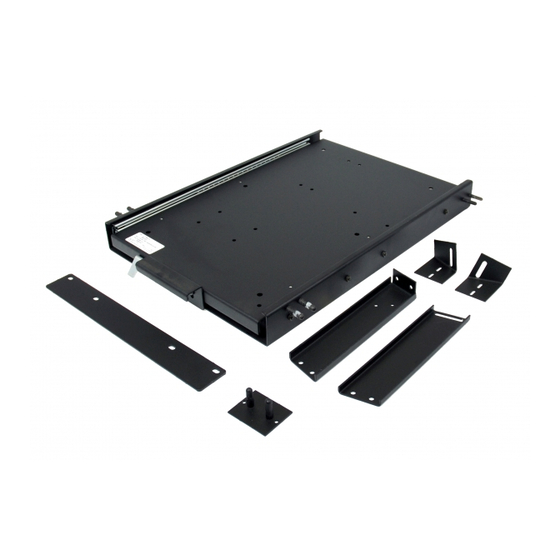

HALF SIZE TRUNK TRAY
1995-2008 FORD CROWN VICTORIA
Passenger side front foot
Driver side front foot
Support plate
Driver side rear foot
Passenger side rear foot
¼" Flat washer
¼" Serrated nut
¼" x ¾" Hex head bolt
8-32 Keps nut
2
(Attaches w/ ¼" serrated nuts)
Screwdriver set
Wrench – 7/16"
PART #
S-1-000958
S-1-000959
S-1-000964
S-1-TA001HBS1-006A
S-1-TA001HBS1-006B
GSM31005
GSM30023
GSM33001
GSM30027
Always
!
5
(Attaches w/ 8-32 keps nuts)
1
(Attaches w/ ¼" serrated nuts)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Havis-Shields Half Size Trunk Tray 1995-2008 Ford Crown Victoria C-TTB-CV
Summary of Contents for Havis-Shields Half Size Trunk Tray 1995-2008 Ford Crown Victoria C-TTB-CV
- Page 1 ¼” Serrated nut ¼” x ¾” Hex head bolt 8-32 Keps nut Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit...
- Page 2 INSTALL INSTRUCTIONS: (refer to drawing on previous page) 1. Remove spare tire and jack from trunk. 2. Slide tray into the top shelf of the trunk. 3. Loosely attach (items #1 & 2) front mounting feet to the tray, using ¼” x ¾” Hex head bolts, washers, and nylock nuts.
