INSTALL INSTRUCTIONS C-3311-2 & C-3311-18-2
TOOLS REQUIRED:
7/16" wrench
Powered drill w/ 3/16" drill bit
Ratcheting wrench
HARDWARE:
QTY DESCRIPTION
12
¼-20 x ¾" Hex head bolts
16
¼" Flat washers
12
¼-20 Serrated nuts
4
8-32 x 3/8" Machine Screws
4
8-32 Keps Nuts
4
¼" x ¾" Hex head lag bolts (only on C-3311-18-2)
2
Front Mounting Leg
1
Rear Driver-side bracket
1
Rear Passenger-side bracket
4
Mounting plate w/ pem ¼" pem studs (Use 2 on C-3311-18-2)
1
P.S. Front Mounting Bracket (only on C-3311-18-2)
1
P.S. Rear Mounting Adapter Bracket (only on C-3311-18-2)
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
For product support, visit the Install Instructions Section of our website at
http://havis.com/Installation/Installation.html
SUB ASSEMBLY: (Use Iso views on page #1 & 2 for sub assemblies)

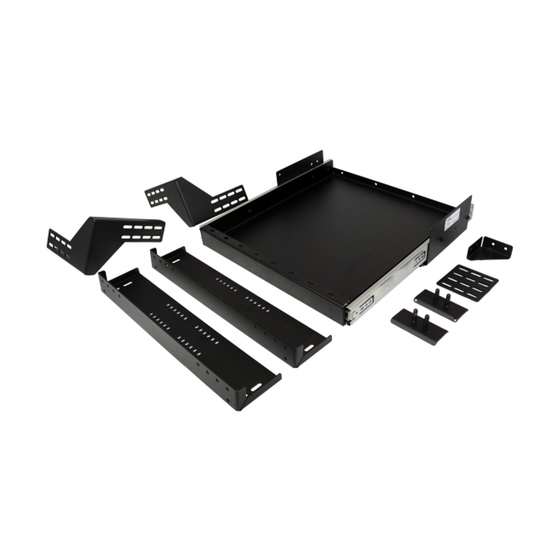

SLIDE-OUT TRUNK TRAY
2006-2008 CHEVROLET IMPALA
Always
Standard socket set
Screwdriver set
!
- 1 -
PART #
GSM33001
GSM31005
GSM30023
GSM33540
GSM30027
GSM33060-1
CM001390
CM001391
CM001392
CM001393
CM001394
CM93712
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Havis-Shields Slide-Out Trunk Tray 2006-2008 Chevrolet Impala C-3311-18-2
Summary of Contents for Havis-Shields Slide-Out Trunk Tray 2006-2008 Chevrolet Impala C-3311-18-2
- Page 1 P.S. Front Mounting Bracket (only on C-3311-18-2) P.S. Rear Mounting Adapter Bracket (only on C-3311-18-2) Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit For product support, visit the Install Instructions Section of our website at http://havis.com/Installation/Installation.html...
- Page 2 C-3311-18-2 HALF SIZE SLIDE TRAY Mounting Plate P.S Front Mounting Bracket Front Mounting Legs ¼” x 1” Lag bolts D.S. Rear Mounting Brackets 8-32 Screws and hex nuts P.S. Rear Mounting Bracket P.S. Rear Mounting ¼” x 1” Lag bolts Adapter Bracket C-3311-2 FULL SIZE SLIDE TRAY Mounting Plate...
- Page 3 1. Attach forward mounting legs to the slide out tray. • Attach forward mounting legs with provided 8-32 screws and hex nuts to slide track. • The front legs will be square to the slide tray. On the front passenger side of the half tray, passenger side front mounting brackets •...
- Page 4 • Tighten all loose hardware. • Be sure tray slides smoothly and locks in the closed position. If the tray does not slide smooth then most likely the tray is not square or level. #8 screws & hex nuts ¼” bolts, washers, &...
