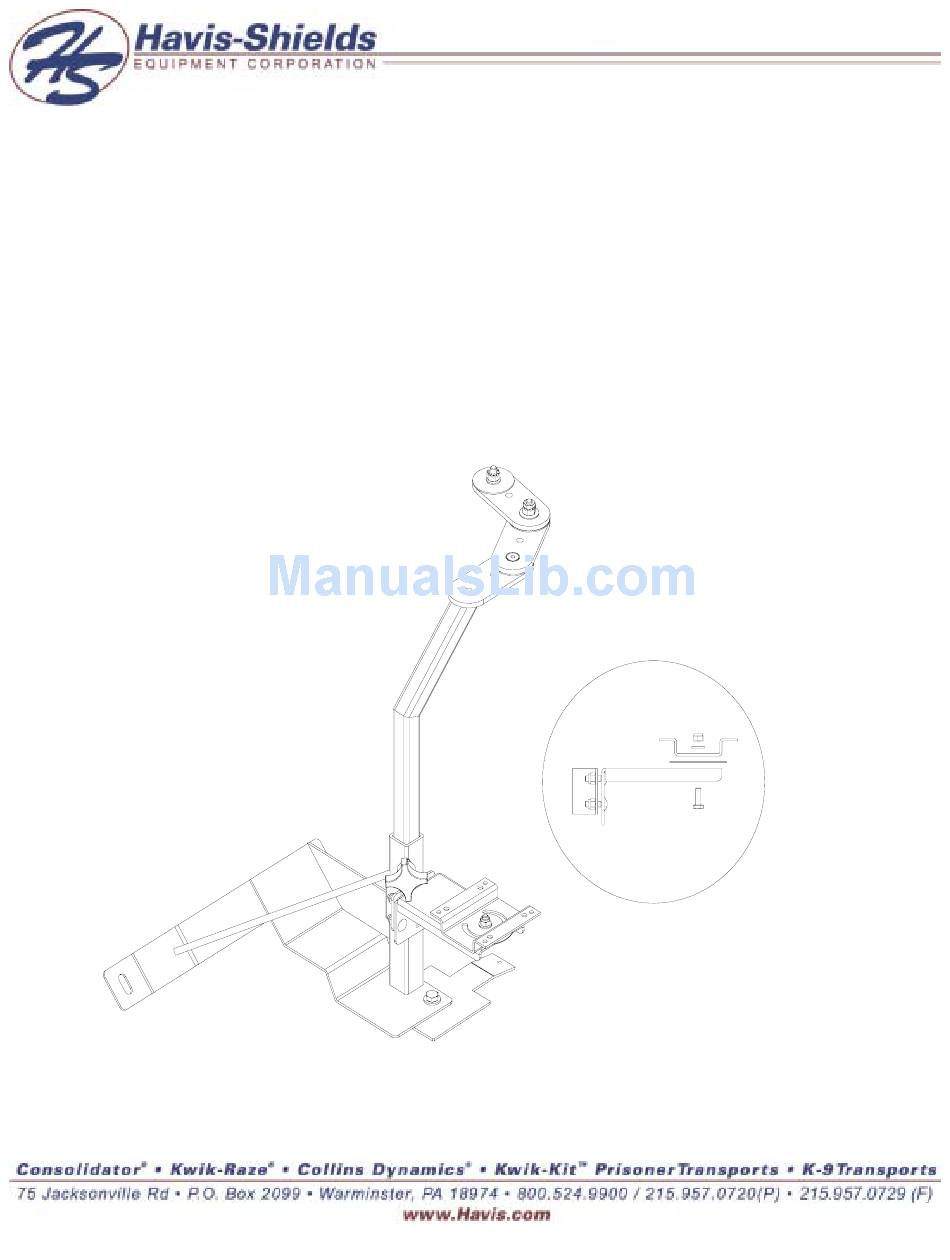

INSTALL INSTRUCTIONS
C-3413 TCB SIDE ADAPTER PLATE OPTION
C-3085-UN-1 SWIVEL COMPUTER MOUNT
LO PROFILE WITH HARDWARE
PARTS INCLUDED - INSTALL IN SEQUENCE LISTED BELOW:
1. (1) GSM30016 1/4-20 NYLOCK NUT
2. (1) CM86600 1/16" NYLON SPACER
3. (1) CM93081 WASHER TEFLON 2.75" WHITE
4. (1) C-3082-3 SWIVEL MOUNT BRACKET LOW HAT
5. (1) CM93081 WASHER TEFLON 2.75" WHITE
6. (1) C-3413 TCB SIDE ADAPTER PLATE OPTION
7. (1) GSM33001 SCREW 1/4-20 X 3/4 HHCS
C-3413-INST-3-03
