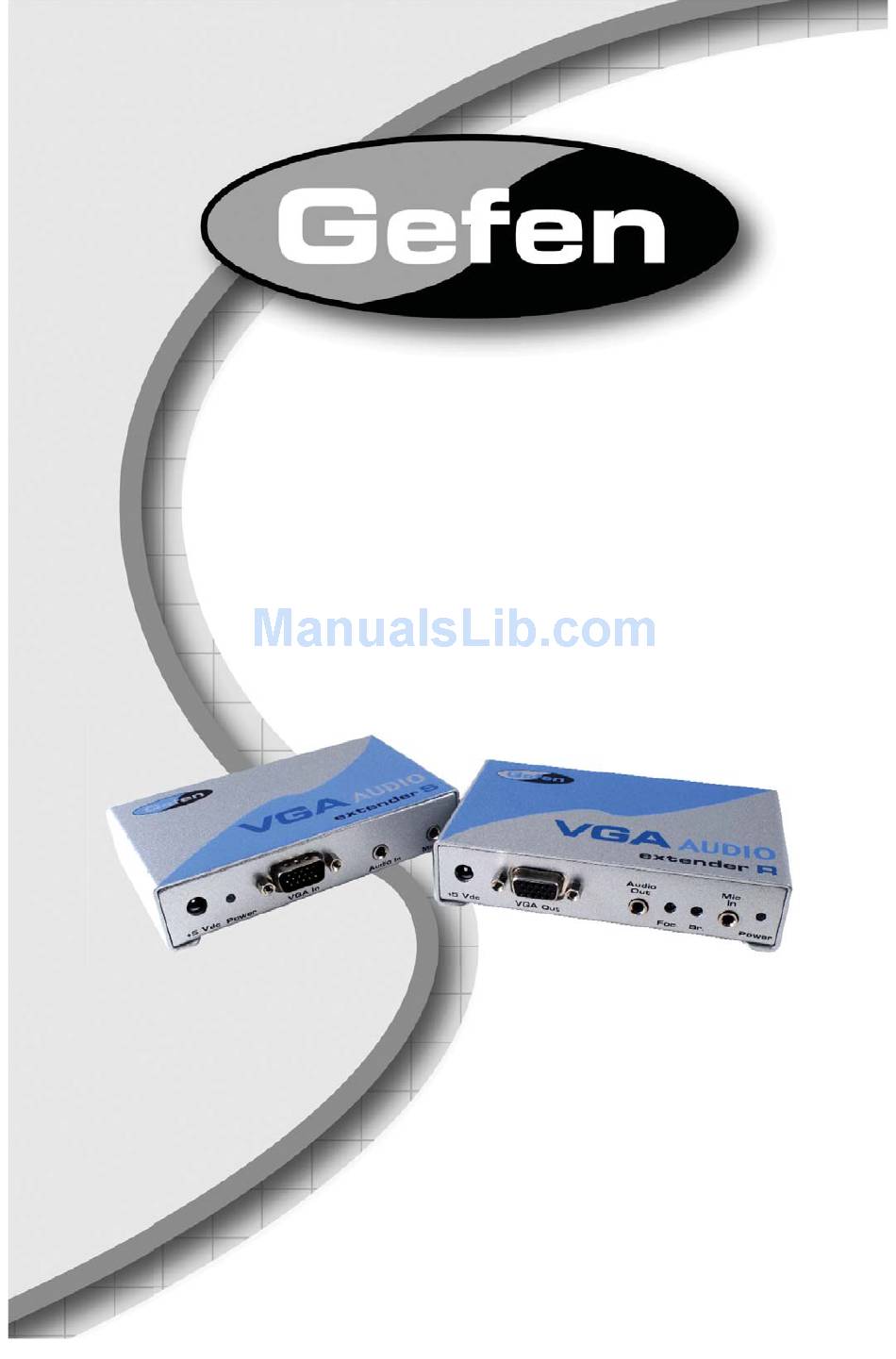

- Page 1 ® VGA Audio Extender E X T - V G A - A U D I O - 1 4 1 U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. VGA Audio Extender is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION OPERATION NOTES PANEL DESCRIPTIONS INSTALLATION INSTRUCTIONS / LED INDICATORS / TRIM PODS CAT5 WIRING DIAGRAM SUPPORTED RESOLUTIONS SPECIFICATIONS WARRANTY... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the new VGA Audio Extender by Gefen, LLC. The VGA Audio Extender will extend both VGA and analog audio up to 150 feet over one CAT-5 cable. CONTENTS The VGA Audio Extender package consists of:... -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE VGA AUDIO EXTENDER SYSTEM • Use industry standard Category-5 (CAT-5) cable to operate the VGA Audio Extender system. CAT-5e cable is preferred. • Please connect all the cables between the computer and the VGA Audio Extender before powering up the VGA Audio Extender unit. -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS LED Indicator VGA Input 5V Input Audio Input Mic Output Focus and Brightness Audio 5V Input VGA Output Input trim pods Indicator Output RJ45 jacks for CAT-5 cables linking Sender and Receiver... -
Page 7: Installation Instructions / Led Indicators / Trim Pods
INSTALLATION INSTRUCTIONS Connect your source to the VGA Audio Extender sender unit using the included VGA Cable. Connect your audio and mic source to the VGA Audio Extender sender using the included audio cable (mic cable sold separately). Connect your display to the VGA Audio Extender receiver unit using a VGA Cable. -
Page 8: Cat5 Wiring Diagram
CAT5 WIRING DIAGRAM... -
Page 9: Supported Resolutions
SUPPORTED RESOLUTIONS 640x480/60 UXGA 1600x1200/60 640x480/72 640x480/75 640X480/85 SVGA 800x600/56 480p 720X480p/59 800X600/60 720X480p/60 800X600/72 800X600/75 800X600/85 1024X768/60 1080i 1920X1080i/50 1024X768/70 1920X1080i/59 1024x768/75 1920X1080i/60 1024x768/85 WXGA 1280X960/60 576p 720X576p/50 1280x960/85 SXGA 1280X1024/60 Native 1366X768/50 1280X1024/75 1366X768/60 1280X1024/85... -
Page 10: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth................350 MHz Actual Bandwidth....................120 MHz Input Video Signal........1.2V p-p / Input Sync Signal: 5V p-p (TTL) Horizontal Frequency Range...............15-70 KHz Vertical Frequency Range................30 - 170 Hz Video In......................HD-15 male Video out....................HD-15 female Frequency Response................20Hz - 20kHz Audio Connector..............mini-Stereo 3.5mm jack Link Connector..................RJ-45 Shielded Power Supply......................5V DC... -
Page 11: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 12 Rev A3 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
