Gefen VGA RS-232 User Manual

Gefen VGA RS-232 User Manual

Extend vga & rs-232 over a single cat-5 cable
Hide thumbs Also See for VGA RS-232:

Advertisement

Quick Links

Optional

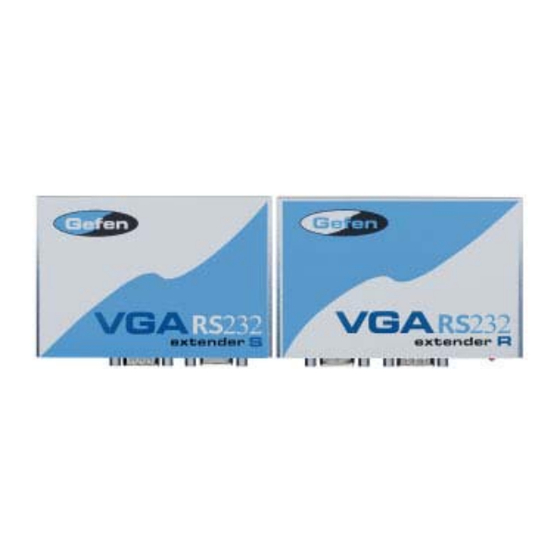

VGA RS232 extender
Accessories
Extends any VGA or Component HD display plus RS-232 using a Single
CAT-5 cable up to 330 feet away.
How It Works
The VGA RS232 Extender sender unit connects to your source using the supplied VGA and RS-
232 cables. The receiver unit connects to your display and your Serial (RS-232) device - up to 330
CAT-5 Cables
feet away. Connect the sender and the receiver to each other using a single CAT-5 cable.
Features:
Extends any VGA or high definition component display and RS-232 device up to 330 feet
(100 meters)
Trim pot and dip switches for fine video equalization
VGA Cables
Perfect for digital signage applications
One CAT-5 cable for extension
Supports resolutions up to 1080p, 2K, and 1920 x 1200

Specifications:

Video Amplifier Bandwidth: 350 MHz
Input Video Signal: 1.2 Volts p-p / Input
Horizontal Frequency Range: 15-70 KHz
Vertical Frequency Range: 30 - 170 Hz
Video In: HD-15 male
Video out: HD-15 female
RS232 Input Connector: DB-9 female
RS232 Output Connector: DB-9 male
Link Connector: RJ-45 Shielded
Conforms to RS-232C standards
Power Supply: 5V DC
Power Consumption: 5 watts (max.)
Dimensions: 4" W x 1.125" H x 3" D
Shipping Weight: 3 lbs.
Package Includes:
VGA RS232 Extender Sender
VGA RS232 Extender Receiver
6 foot VGA cable (M-F)
6 foot Serial cable
Two 5V external power supplies
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-VGARS232-141

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VGA RS-232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gefen VGA RS-232

  • Page 1: Specifications

    Optional VGA RS232 extender Accessories Extends any VGA or Component HD display plus RS-232 using a Single CAT-5 cable up to 330 feet away. How It Works The VGA RS232 Extender sender unit connects to your source using the supplied VGA and RS- 232 cables.
  • Page 2 VGA RS-232 Extender U S E R M A N U A L www.gefen.com...
  • Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. VGA RS232 Extender is a trademark of Gefen Inc. Macintosh is a trademark of Apple Computer Inc.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION OPERATION NOTES PANEL DESCRIPTIONS INSTALLATION INSTRUCTIONS HOW TO ADJUST THE PICTURE CAT5 WIRING DIAGRAM SPECIFICATIONS WARRANTY...
  • Page 5: Introduction

    Thank you for purchasing the new ex•tend•it VGA RS232 Extender by Gefen, Inc. The ex•tend•it VGA RS232 Extender by Gefen allows users the benefi ts of extending VGA and RS232 signals beyond the desktop. The VGA RS232 Extender series can be used to extend a VGA and RS232 signal to cover the distance of 330 feet.
  • Page 6: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE VGA RS232 EXTENDER SYSTEM • Use industry standard Category-5 (CAT-5) cable to operate the VGA RS232 Extender system. CAT-5 E cable is preferred. • Please connect all the cables between the computer and the VGA RS232 Extender before powering up the VGA RS232 Extender unit.
  • Page 7: Panel Descriptions

    PANEL DESCRIPTIONS...
  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS Connect the VGA RS232 Extender sender unit to the VGA and RS232 output on the back of your computer. The six foot RS232 and M-F VGA cables connect the CPU and sender unit together. Connect the VGA RS232 Extender receiver unit to your monitor with the VGA cable that is attached to your monitor.
  • Page 9: How To Adjust The Picture

    HOW TO ADJUST THE PICTURE The fi rst step in adjusting the video quality is to display text and a graphic on your monitor (i.e. desktop icons). Then set your computer to the resolution that you will be using most frequently.
  • Page 10: Cat5 Wiring Diagram

    CAT5 WIRING DIAGRAM...
  • Page 11: Specifications

    SPECIFICATIONS Video Amplifi er Bandwidth .................. 350 MHz Actual Bandwidth ....................120 MHz Input Video Signal ..................1.2 Volts p-p Horizontal Frequency Range ................15-70 KHz Vertical Frequency Range ................30-170 Hz Video In ......................HD-15 Male Video Out ....................HD-15 Female Serial In ......................9-Pin Female Serial Out ......................9-Pin Male Link Connector ......................
  • Page 12: Warranty

    If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
