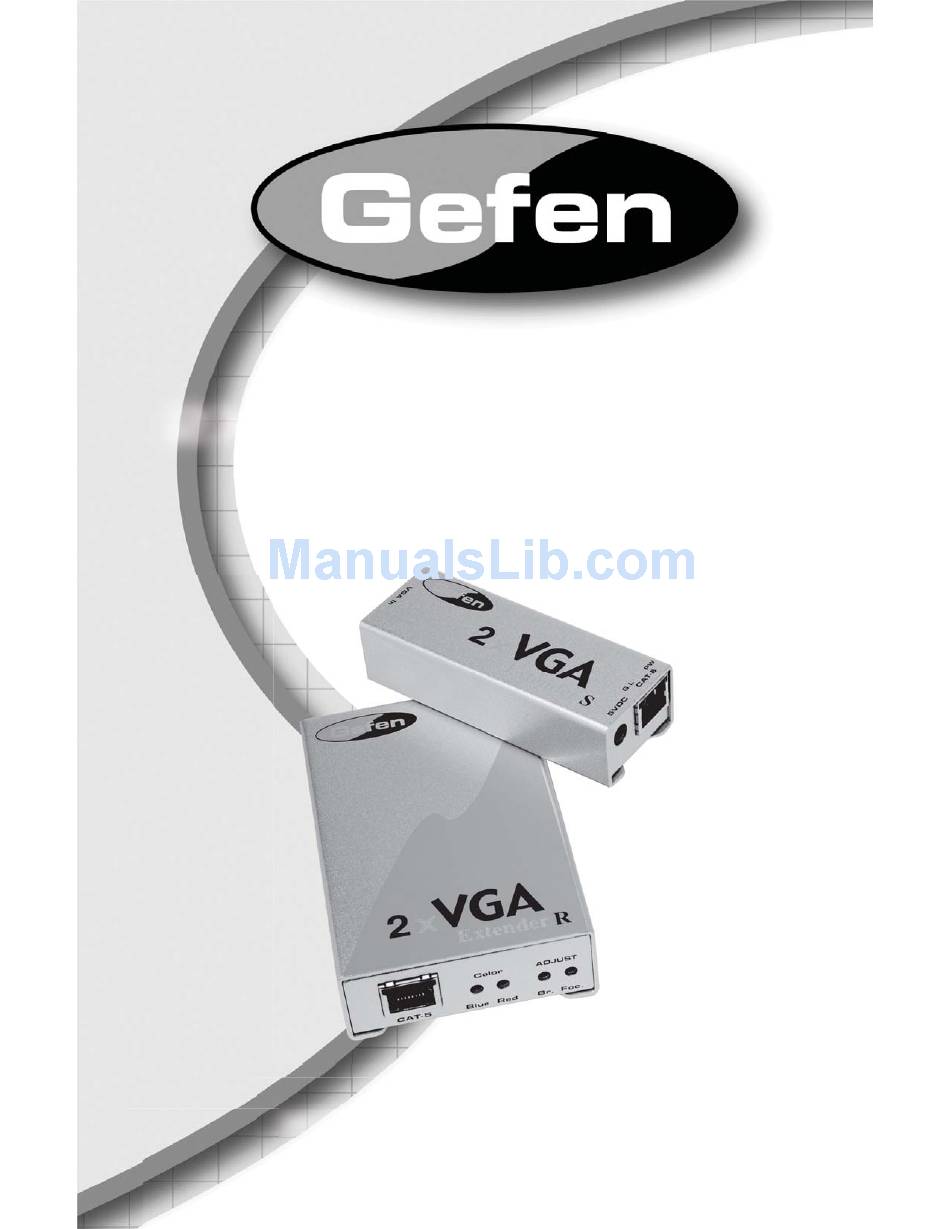

- Page 1 2X VGA Extender EXT-VGA-CAT5-142 User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 2X VGA Extender is a trademark of Gefen Inc. © 2010 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Features Sender Panel Descriptions Receiver Panel Descriptions Connecting And Operating The 2X VGA Extender Adjusting The 2X VGA Extender Network Cable Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction
The Gefen 2X VGA Extender The Gefen 2X VGA Extender allows you to extend VGA video at great distances, up to 1,000 feet from the video source. A single industry-standard CAT5 cable is used to carry the video signal. -
Page 5: Features
FEATURES Features • Extends any VGA video source up to 1000 feet away • Uses only one CAT-5 cable for extension • Supports resolutions up to 1080p, 2K, and 1920 x 1200 • Allows up to 2 VGA displays at the remote end Package Includes (1) VGA Extender Sender Unit (1) VGA Extender Receiver Unit... -
Page 6: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Front Panel VGA Input Back Panel Link LED Power LED Indicator Indicator 5V DC Power Input RJ-45 Port... -
Page 7: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Front Panel VGA Output 1 VGA Output 2 Back Panel Link LED Power LED Indicator Indicator Red Trim Blue Trim Focus Trim RJ-45 Port Green Trim Brightness Trim... -
Page 8: Connecting And Operating The 2X Vga Extender
CONNECTING AND OPERATING THE 2X VGA EXTENDER How to Connect the 2X VGA Extender Connect the VGA source to the 2X VGA Extender sender unit using the supplied VGA cable Connect the 2X VGA Extender sender unit and receiver unit together using a user supplied CAT-5 or CAT-5e cable. - Page 9 ADJUSTING THE 2X VGA EXTENDER RECEIVER Brightness (AGC dip switch, Brightness trim pot) The 2X VGA Extender receiver features an automatic gain control (AGC) for brightness. This should set the optimal brightness based on the video signal. However, manual adjustment can be done by disabling this feature. To disable AGC, remove the silver metallic tape on the underside of the 2X VGA Extender receiver to expose a 2 dip switch bank and a pair of trim pots.
-
Page 10: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 350 MHz Input Video Signal ................1.2 Volts p-p Input Sync Signal ................ 5 Volts p-p (TTL) Horizontal Frequency Range ..............15-70 KHz Vertical Frequency Range ..............30 - 170 Hz Video In ....................HD-15 Male Video out ................... - Page 14 REV X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
