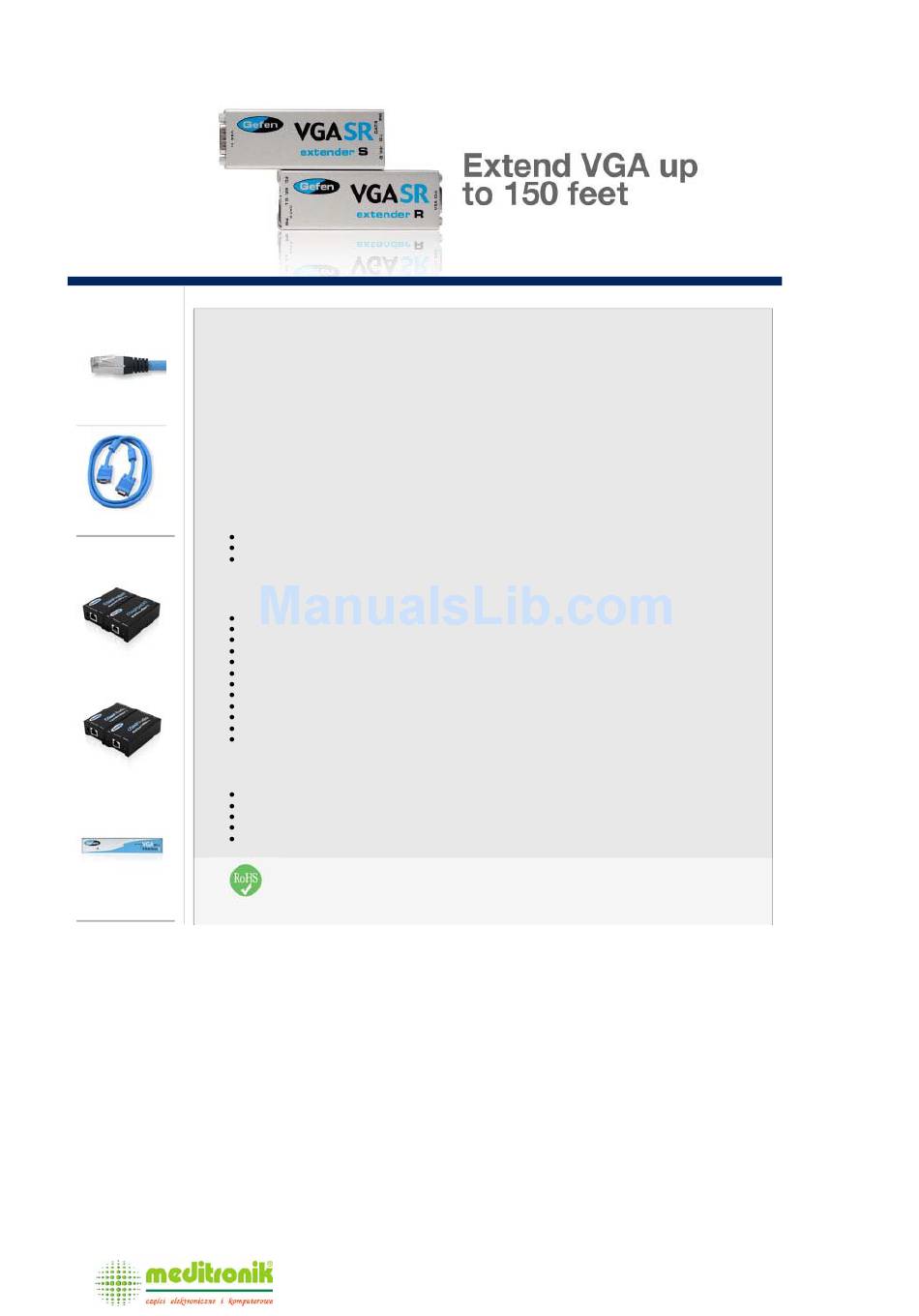

Gefen EXT-VGA-141SRN User Manual

Optional VGA extender SRN
Accessories
Extends any VGA Monitor up to 150 feet using a Single CAT-5 Cable
The VGA Extender SRN allows users to extend video signals far beyond the A/V rack. The VGA
Extender SRN can be used to extend an analog VGA signal to cover distances up to 150 feet.
Industry standard Category 5e (CAT-5e) cable is used for the extension.
How It Works
CAT-5 Cables
The VGA extender SRN sender unit connects to your computer using the supplied VGA cable. The
SRN receiver connects to your monitor - up to 150 feet away. One CAT-5 cable connects the
sender and the receiver to each other, extending your video. The video transmitter and receiver
boxes are small and unobtrusive, allowing installation in small spaces.
Features:
VGA Cables
Extends any VGA or high definition component display up to 150 feet (45 meters)
One CAT-5e cable for extension
Related Products
Supports resolutions up to 1080p, 2K, and 1920 x 1200

Specifications:

Video Amplifier Bandwidth: 350 MHz
Input Video Signal: 1.2 volts p-p
Input Sync Signal: 5 volts p-p (TTL)
Horizontal Frequency Range: 15-70 KHz
Vertical Frequency Range: 30 - 170 Hz
Component Video
Video In: HD-15 male
Extender
Video out: HD-15 female
Link Connector: RJ-45 Shielded
Power Supply: 5V DC
Power Consumption: 5 watts (max.)
Dimensions: 1" W x 1" H x 4" D each module
Shipping Weight: 3 lbs.
Package Includes:
Composite Video
Extender
VGA Extender SRN Sender Unit
VGA Extender SRN Receive Unit
6 foot VGA cable (M-F)
One 5V external power supply
User's Manual
1:8 VGA CAT5
Distribution S
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl e-mail: office@meditronik.com.pl
EXT-VGA-141SRN
