- Page 1 VGA Extender SR U S E R M A N U A L www.gefen.com...
- Page 2 20600 Nordhoff St. Chatsworth, CA 91311 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. the VGA Extender SR is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION / FEATURES OPERATION NOTES INSTALLATION INSTRUCTIONS PRODUCT DESCRIPTION CAT5 WIRING DIAGRAM WIRING DIAGRAM SPECIFICATIONS WARRANTY... - Page 4 (1) User Manual HOW IT WORKS In its most basic application, the VGA Extender SR sender resides next to the com put er. With the supplied VGA cable, the VGA Extender SR sender is connected to the computer. The VGA Extender SR receiver is then placed next to the monitor or projector. Industry standard Category 5 (CAT-5) cable is used to link the VGA Extender SR send er and VGA Extender SR re ceiv er together.
-
Page 5: Operation Notes
CAT-5e cable is perferred. Please connect all the cables between the computer and the VGA Extender SR before powering up the VGA Extender SR unit. The VGA Extender SR units are housed in a metal box for better RF shielding. -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Connect the VGA Extender SR sender unit to the VGA output on the back of your computer. The supplied six foot M-F VGA cable connects the CPU and sender unit together. Connect the VGA Extender SR receiver unit to your monitor with the VGA cable that is attached to your monitor. -
Page 7: Product Description

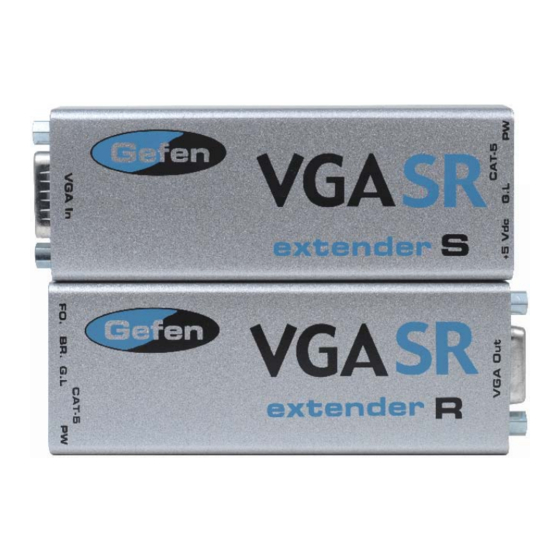

PRODUCT DESCRIPTION Link Light Power Light VGA In Brightness Focus trimpod trimpod Link Light Power Light VGA Out The Link light will stay on when a VGA connection is made with the source and the sender unit. If the link light turns off verify that the VGA cable is connected properly from the source to the sender unit and the display to the receiver unit. -
Page 8: Cat5 Wiring Diagram
CAT5 WIRING DIAGRAM... -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth..................350 MHz Actual Bandwidth....................120 MHz Input Video Signal...................1.2 volts p-p Input Sync Signal..................5 volts p-p (TTL) Horizontal Frequency Range................15-70 KHz Vertical Frequency Range................30 - 170 Hz Video In......................HD-15 male Video out.......................HD-15 female Link Connector...................RJ-45 Shielded Power Supply......................5V DC Power Consumption..................5 watts (max.) Dimensions....................1”... -
Page 11: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
