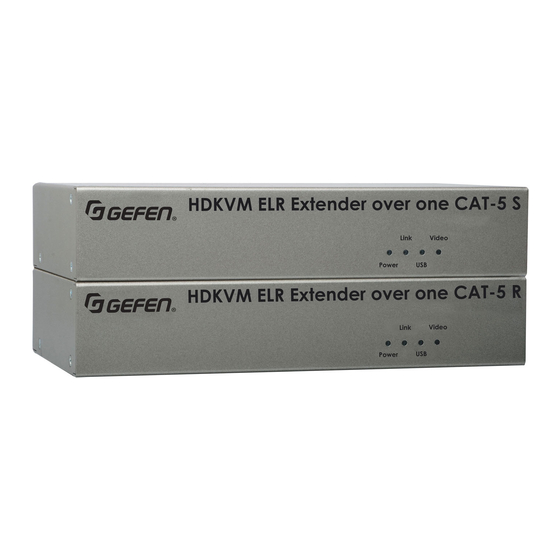

Gefen EXT-HDKVM-ELR User Manual

Gefen EXT-HDKVM-ELR User Manual

Extra long range extender over one cat5 s/r

Advertisement

Quick Links

*Preferred
HD KVM
Extra Long Range Extender
Over One CAT5
EXT-HDKVM-ELR
User Manual
Release A7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-HDKVM-ELR and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen EXT-HDKVM-ELR

  • Page 1 *Preferred HD KVM Extra Long Range Extender Over One CAT5 EXT-HDKVM-ELR User Manual Release A7...
  • Page 2: Warranty Information

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 3: Operating Notes

    Operating Notes • Shielded CAT-5e (or better) cables should not exceed 330 feet (100 meters) between the Sender and Receiver unit. • By default, the source device will use the EDID from the display (or other sink device) which is connected the Receiver unit. See EDID Management (page 8) for more information.
  • Page 4: Features And Packing List

    Features and Packing List Features • Extends 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0 or 30Hz, 4:4:4), and USB over a single CAT-5e cable up to 330 feet/100 meters (8-bit color) • Extends 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4), and USB over a single CAT-5e cable up to 330 feet/100 meters (8-bit color) •...
  • Page 5: Packing List

    The packing contents of the Sender and Receiver unit are listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen. • 1 x HDKVM ELR Extender over One CAT5 - Sender unit •...
  • Page 6 HD KVM Extra Long Range Extender Over One CAT5 Getting Started...
  • Page 7: Sender Unit

    Introduction Page Title Sender Unit HD KVM ELR Extender over one CAT-5 S ® Link Video Power Name Description Power This LED glows solid blue when the unit is EXT-HDKVM-ELRS connected to an AC outlet and the unit is powered ON. Link This LED glows solid blue when the Sender HDMI In...
  • Page 8 HD KVM ELR Extender over one CAT-5 S ® Introduction Page Title Link Video Power EXT-HDKVM-ELRS HDMI In Link Service 5V DC Name Description Link Connects the Sender unit to the Receiver unit using shielded CAT-5e (or better) cable. Service Mini-USB port for factory use only.
  • Page 9: Receiver Unit

    Introduction Receiver Unit HD KVM ELR Extender over one CAT-5 R ® Link Video Power Name Description EXT-HDKVM-ELRR Power This LED glows solid blue when the unit is connected to an AC outlet and the unit is powered ON. HDMI Out Link Service 5V DC...
  • Page 10 HD KVM ELR Extender over one CAT-5 R Introduction ® Link Video Power EXT-HDKVM-ELRR Link HDMI Out Service 5V DC Name Description Link Connects the Receiver unit to the Sender unit using shielded CAT-5e (or better) cable. HDMI Out Connect an HDMI cable from this connector to the display.
  • Page 11: Installation

    Installation Connection Instructions ► Video Connect the included HDMI cable between the HD source and HDMI In port on the Sender unit. Connect an HD display to the HDMI Out port on the Receiver unit using another HDMI cable. ► Network cable Connect a shielded CAT-5e (or better) cable, up to 300 feet (100 meters) from the Link port on the Sender unit to the Link port on the Receiver unit.
  • Page 12: Sample Wiring Diagram

    Installation Sample Wiring Diagram CAT-5e (or better) CABLE HDMI CABLE Receiver Sender Hi-Def Source with USB USB Mouse USB Keyboard USB HD HD Display EXT-HDKVM-ELR...
  • Page 13: Dip Switches

    DVI Out DIP Switches Link HDMI Out Service 5V DC On the bottom of the Receiver unit are a bank of DIP switches. DIP switch 1 controls EDID management. DIP switch 2 is not used. DVI Out DIP switches Receiver unit EDID Management The HD KVM Extra Long Range Extender Over One CAT5 provides EDID management.
  • Page 14 HD KVM Extra Long Range Extender Over One CAT5 Appendix...
  • Page 15: Network Cable Diagram

    Network Cable Diagram Front of RJ-45 Connector 1 2 3 4 5 6 7 8 Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when field-terminating cable for use with Gefen products. Color Description Orange / White TD+ (Transmit Data, positive differential signal)
  • Page 16: Rack Tray Installation

    Rack Tray Installation Step 1 Step 2 Turn unit upside down. Remove rubber feet. Step 3 Step 4 Line up holes on unit and rack tray. Install countersink screws . Step 5 Step 6 Ensure the unit is installed securely. Unit has been installed into rack tray.
  • Page 17: Specifications

    Specifications Supported Formats Resolutions (max.) • 1080p Full HD • 1920 x 1200 (WUXGA) • 4096 x 2160 (4K) Connectors, Controls, and Indicators HDMI In (Sender) • 1 x HDMI Type-A, 19-pin, female, locking HDMI Out (Receiver) • 1 x HDMI Type-A, 19-pin, female, locking USB (Sender) •...
  • Page 18 *Preferred Stretch it. Switch it. Split it. Gefen’s got it. ®...
