Gefen VGA-141LR User Manual

Gefen VGA-141LR User Manual

Vga extender lr
Hide thumbs Also See for VGA-141LR:

Advertisement

Quick Links

VGA Extender LR
www.gefen.com
EXT-VGA-141LR
EXT-VGA-141LR
User Manual
User Manual
f
f

Advertisement

loading
Need help?

Need help?

Do you have a question about the VGA-141LR and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen VGA-141LR

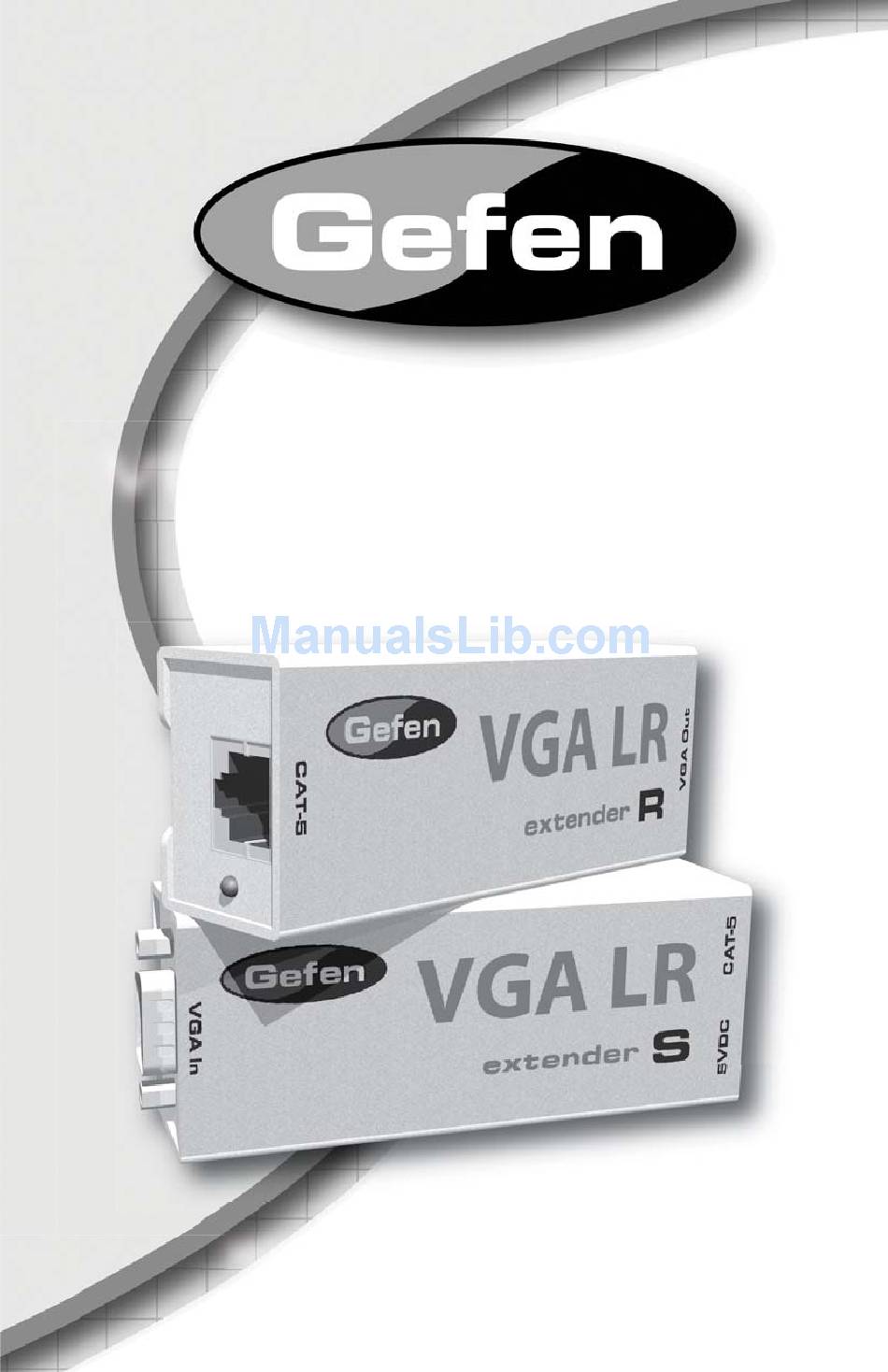

  • Page 1 VGA Extender LR EXT-VGA-141LR EXT-VGA-141LR www.gefen.com User Manual User Manual...
  • Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. VGA Extender LR is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The VGA Extender LR Network Cable Wiring Diagram Specifi cations Warranty CONTENTS...
  • Page 4: Introduction

    Congratulations on your purchase of the VGA Extender LR. Your complete satis- faction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.
  • Page 5: Operation Notes

    EDID. If using a non-VESA standard resolution or if EDID is needed, an EDID storage and relay device is necessary. Gefen recommends the use of a DVI Detective (part# EXT-DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP) with two VGA to DVI adapters.
  • Page 6: Features

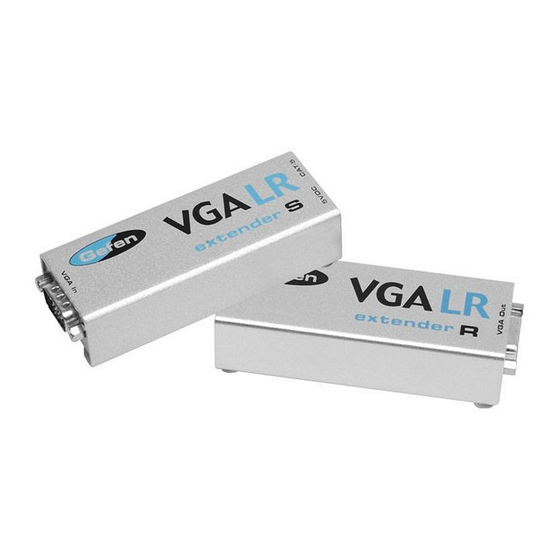

    Features • Extends any VGA or high defi nition component display up to 330 feet (100 meters) • One CAT-5e cable for extension • Supports resolutions up to 1080p, 2K, and 1920 x 1200 Package Includes (1) VGA Extender S Sender Unit (1) VGA Extender R Receive Unit (1) 6 Foot VGA cable (M-F) (1) 5V external power supply...
  • Page 7: Panel Layout

    PANEL LAYOUT Sender Unit Panel Receiver Unit Panel...
  • Page 8: Panel Descriptions

    5V DC Power Supply Input Connect the included 5V DC power supply to this input. Power for the receiving unit will be provided over the CAT-5e cable that connects the sending and receiving units together. Sender RJ-45 Input Connect a CAT-5e cable (terminated according to the TIA/EIA-568-B specifi...
  • Page 9: Connecting And Operating The Vga Extender Lr

    CONNECTING AND OPERATING THE VGA EXTENDER LR How to Connect the VGA Extender LR Connect the VGA Extender LR sender unit to the VGA output on the back of your computer. The six foot M-F VGA cable connects the CPU and sender unit together.
  • Page 10: Network Cable Wiring Diagram

    Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance.
  • Page 11: Specifi Cations

    SPECIFICATIONS Video Amplifi er Bandwidth ... 350 MHz Input Video Signal ... 1.2 Volts p-p Video In ... HD-15 Focus ... 25 to 450 FT Video out ... HD-15 Link Connector ... RJ-45 Power Consumption ... 1 Amp Power Supply ... 5VDC (External) Dimensions ...

This manual is also suitable for:

Ext-vga-141lr
