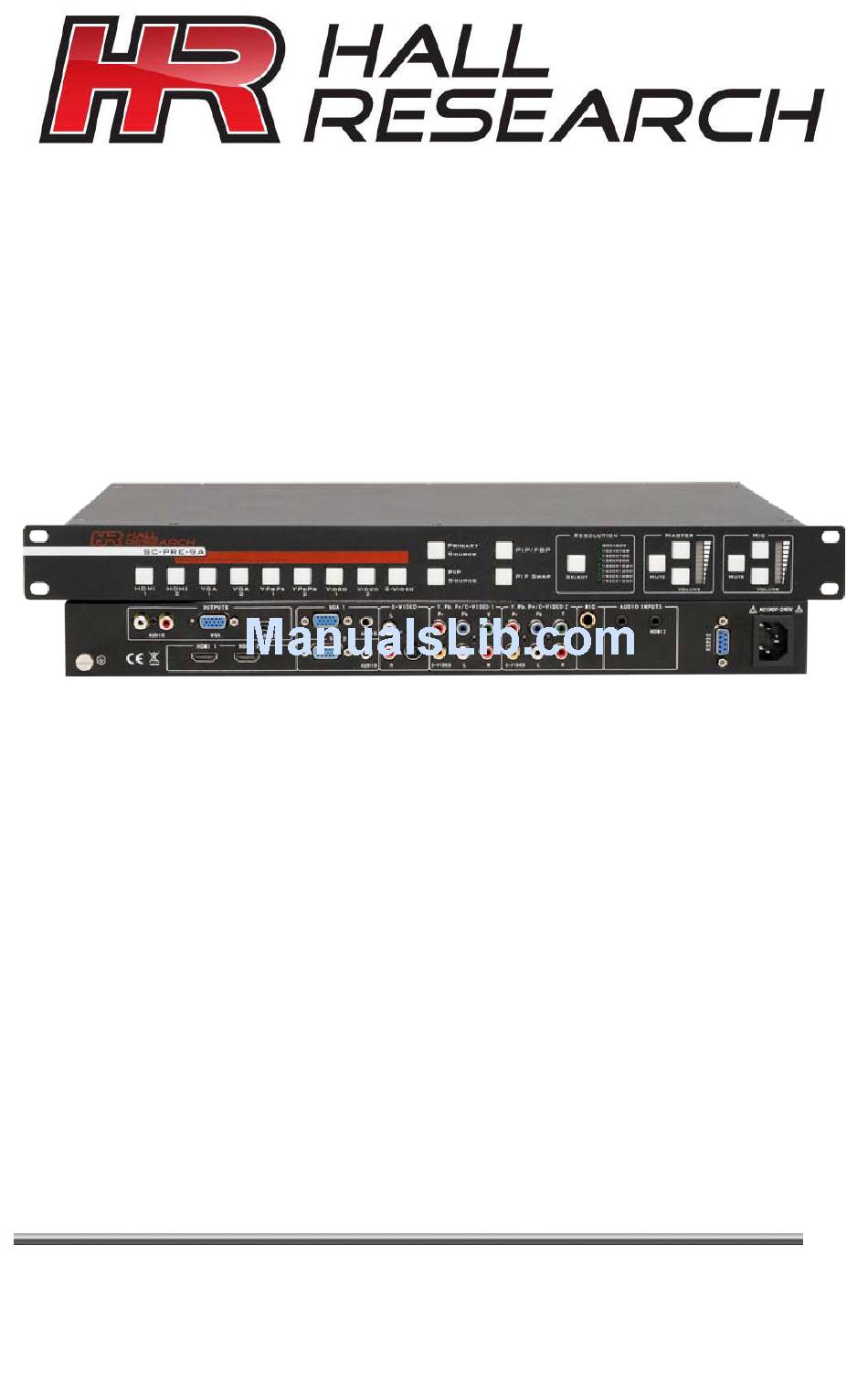

Page 1: User Guide
SC-PRE-9A 9x2 Presentation Scaler Switch User Guide UMA1193 Rev. A Hall Research CUSTOMER 800-959-6439 1163 Warner Ave. 714-641-6607 SUPPORT Tustin, CA 92780 support@hallresearch.com INFORMATION www.hallresearch.com... -
Page 3: Federal Communications Commission
9x2 Presentation Scaler Switch TRADEMARKS USED IN THIS MANUAL Hall Research and the Hall Research logo ( ) are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency energy and if... -
Page 4: Table Of Contents
SC-PRE-9A Introduction ..................3 Features ....................... 4 Front Panel......................5 Rear Panel ......................6 System Diagram ....................6 RS232 Control ................... 7 Communication Settings ..................7 Command List ...................... 7 Specifications ................. 11 Video ........................11 Audio ........................12 PIP/PBP Compatibility ..................12 General ...................... -
Page 5: Introduction

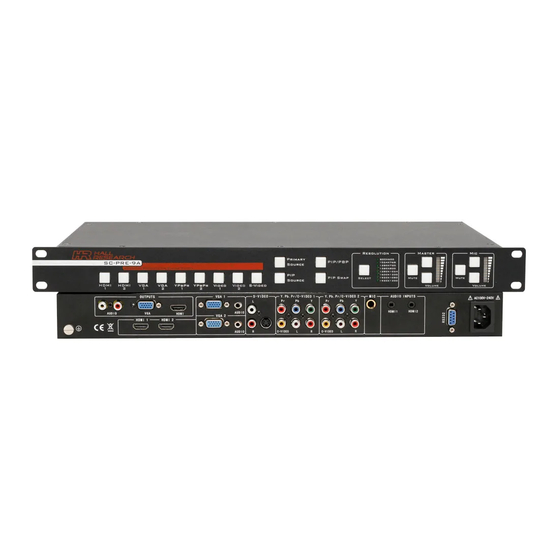

9x2 Presentation Scaler Switch 1. Introduction The SC-PRE-9A is a multi-format video presentation scaler switch with audio. It features 9 inputs of various video formats including HDMI, VGA, Component, Composite, and S-Video with HDMI and VGA outputs. Video can be scaled to various aspect ratios and resolutions from 800x600 up to 1920x1200 @ 60Hz. -
Page 6: Features
SC-PRE-9A Features • 9 switchable inputs (2x HDMI, 2x VGA, 2x YPbPr, 2x Composite, 1x S-Video) • 2 simultaneous outputs (1x HDMI, 1x VGA) • Scaling from 640x480 to 1920x1200 @ 60Hz • HDTV formats up to 1080P • HDCP 1.2 compliant •... -
Page 7: Front Panel
9x2 Presentation Scaler Switch Front Panel 1. Source Selection. Selects among the 9 available source inputs. 2. Primary/PIP Source Selectors. These buttons set source selection for Primary or PIP Source. If Primary Source is active then the source selection buttons will switch the primary display. If PIP source is active then the source selection buttons will change the PIP source. -
Page 8: Rear Panel
SC-PRE-9A Rear Panel 1. Chassis Ground 2. Audio Output 3. VGA and HDMI Video Output 4. HDMI Video inputs 5. VGA Video and audio inputs 6. S-Video and audio inputs 7. Component/Composite Video and audio inputs 8. Mic input 9. HDMI stereo audio inputs 10. -
Page 9: Rs232 Control
9x2 Presentation Scaler Switch 2. RS232 Control The SC-PRE-9A features an extensive RS232 protocol for integration with 3 party control systems. Communication Settings Baud Rate 9600 Data bits Stop bits Parity None Command List Note that all commands are followed by a carriage return (CR) -
Page 10: Command Description
SC-PRE-9A Command Description 1021 Query audio volume and mute OSD status 1022 Query video blank status 1023 Query audio channel lock status 1024 Query current PIP/PBP Window selection 1025 Query phase setting 1026 Query brightness level 1027 Query contrast level... - Page 11 9x2 Presentation Scaler Switch Command Description HDMI 1 Input Selection 0701 HDMI 2 Input Selection 0702 VGA 1 Input Selection 0703 VGA 2 Input Selection 0704 Component 1 Input Selection 0705 Component 2 Input Selection 0706 S-Video Input Selection 0707 Video 1 Input Selection 0708 Video 2 Input Selection...
- Page 12 SC-PRE-9A Command Description PIP/PBP Window S-Video Input Selection 0741 Video blank 0745 Unblank Video 0746 Lock audio channel. This audio channel won’t follow the video switching 0747 Unlock audio channel 0748 Phase setting. [XX] ranging from 00-99 08XX Sharpness setting. [XX] ranging from 00-15...
-
Page 13: Specifications
9x2 Presentation Scaler Switch 3. Specifications Video 2x Digital (HDMI) 2x VGA (HD15) 1x Digital (HDMI) Input 2x Component (3RCA) Output 1x VGA (HD15) 2x Composite (RCA) 1x S-Video (4 pin mini DIN) SVGA 800x600 HDMI 1.2 1024x768 NTSC 3.58, NTSC 4.42 720P 1280x720 Supported... -
Page 14: Audio
SC-PRE-9A Audio 2x L/R RCA (Component/Composite) 1x L/R RCA (S-Video) Input 2x 3.5mm (HDMI) Output 1x L/R RCA 2x 3.5mm (VGA) 1x ¼” Mono (Mic) Input Output > 10 Ω 50 Ω Impedance Impedance Stereo >90 dB @ 20 to 20,000 CMRR >... -
Page 15: General
9x2 Presentation Scaler Switch General Temperature -20 to 70° C Humidity 10% – 90% Storage Operating -10 to 60° C 0 to 40° C Temperature Temperature Power 100VAC – 240VAC @ 50/60 Hz Current 483mm (W) x 235mm (L) x Dimensions Weight 3.3 lbs... -
Page 16: Troubleshooting
SC-PRE-9A 4. Troubleshooting Problem Solution Static or other video Make sure unit is properly grounded. Use the interference grounding connector on the rear panel of the chassis. Front panel buttons not Make sure the front panel controls are not working locked. - Page 17 9x2 Presentation Scaler Switch...
- Page 18 SC-PRE-9A...
- Page 19 9x2 Presentation Scaler Switch...
- Page 21 © Copyright 2011 Hall Research, Inc. All rights reserved. Hall Research CUSTOMER 800-959-6439 1163 Warner Ave. 714-641-6607 SUPPORT Tustin, CA 92780 support@hallresearch.com INFORMATION www.hallresearch.com...
