Page 1: User Guide

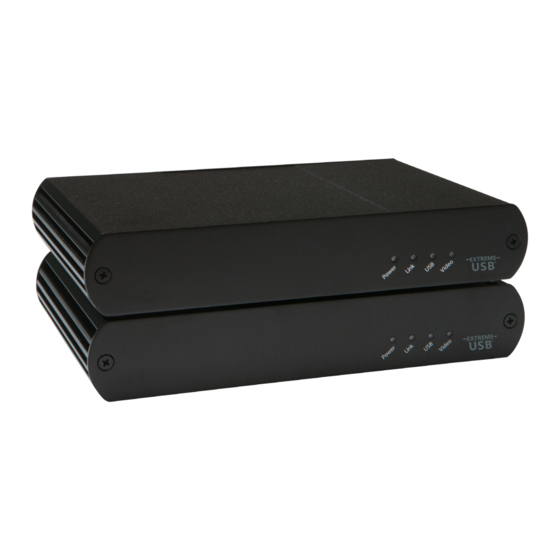

VU5100 DVI + USB 2.0 Extender DVI and USB 2.0 100m Cat 5e KVM Extender System User Guide... - Page 2 Thank you for purchasing the VU5100 KVM Extender. Please read this guide thoroughly. FCC Radio Frequency Interference Statement Warning This device complies with FCC Part 15 Subpart B. CE Statement The product meets European Standard EMC EN 55022 Class A, EN 61000, and EN 55024. IC Statement This Class A digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
Contents Introduction ........................4 Product Contents ...................................4 Requirements ....................................4 About the VU5100 KVM Extender ............................4 Compatibility and Recommended Setup ..........................5 Local Extender Description and Markings ...........................6 Remote Extender Description and Markings ........................7 Installation Guide ......................8 Installing the Local Extender Unit ............................8 Installing the Remote Extender Unit ............................8 Connecting Power to the Local Extender and Remote Extender ................9 Checking the Installation ................................9... -
Page 4: Introduction
Introduction The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. note NOTE provide additional information that could be useful. CAUTIONS provide important information about an operational requirement. Product Contents Packaged with: •... -
Page 5: Compatibility And Recommended Setup
Compatibility and Recommended Setup The product is compatible with many graphics cards, Operating Systems, and monitors supporting up to a 1900 x 1200 resolution. However, there is no guarantee that all devices will be compatible with the product as there are a number of different factors that may impact the operation of this KVM Extender. This product supports both USB 1.1 and USB 2.0 devices. -
Page 6: Local Extender Description And Markings
Local Extender Description and Markings The local extender connects to the computer using the supplied DVI and USB cable. It’s important to use the DVI cable supplied with the product when connecting the local extender to the host computer to ensure proper operation. Front View Rear View Link... -
Page 7: Remote Extender Description And Markings
Remote Extender Description and Markings The remote extender provides DVI output to a monitor and three USB Type A ports for standard USB devices. Additional devices may be connected by attaching USB hubs. Front View Rear View ITEM TYPE DESCRIPTION Green Light: The system is powered and ready to use. -
Page 8: Installation Guide
Installation Guide Before you can install the product, you need to prepare your site: PC (source) Monitor (sink) DVI & USB Local Extender up to 100m Cat 5e Remote Extender Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote desktop including the monitor, keyboard, mouse and any other USB device(s). -
Page 9: Connecting Power To The Local Extender And Remote Extender
Connecting the Local Extender to the Remote Extender While Cat 5e cabling may be used, to ensure proper operation, it is recommended that solid core Cat 6 STP (or Cat 7 note STP) cabling be used to connect the local extender to the remote extender. The cabling must have a straight-through conductor configuration with no crossovers and must be terminated with Cat 6 connectors to qualify as Cat 6. -
Page 10: Connecting A Usb Device
Connecting a USB Device Install any software required to operate the USB device(s). Refer to the documentation for the USB device(s), as required. Connect the USB device to the device port on the remote extender. Check that the device is detected and installed properly in the operating system. Troubleshooting Guide The following table provides troubleshooting tips. - Page 11 PROBLEM CAUSE SOLUTION Link LED on local • The host computer is not 1. Disconnect all USB devices from the remote extender is on, powered on. extender. USB LED on local • The local extender is not 2. Disconnect the local extender from the extender is off.
- Page 12 PROBLEM CAUSE SOLUTION Blinking Video on • A poor quality or damaged Cat 1. Remove all loops in the Cat 5e cable. the Sink (Monitor). 5e cable is being used. 2. Confirm extender operation with a Cat 5e patch • The cabling is coiled. cable.
-
Page 13: Specifications
Specifications 330 feet (100 meters) over solid core Cat 5e STP (or better) cable. Range Solid core Cat 6 STP recommended for best performance. Video Resolution & Depth 1900 x 1200, 24-bit color depth Latency Less than 1ms High-Speed devices (USB 2.0) - up to 30Mbps USB Device Support &... -
Page 14: Contacting Technical Support
Contacting Technical Support If you are experiencing problems not referenced in Troubleshooting section, contact Technical Support at the company where you purchased this product and provide them with the following information: • Host computer make and model • Type of Operating System installed (e.g. Windows XP, Mac OS X, Windows 7 etc.) •... -
Page 15: Technical Glossary
Technical Glossary Category 5e (Cat 5e) Network Cabling Category 5e cable is commonly also referred to as Cat 5e. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI).
