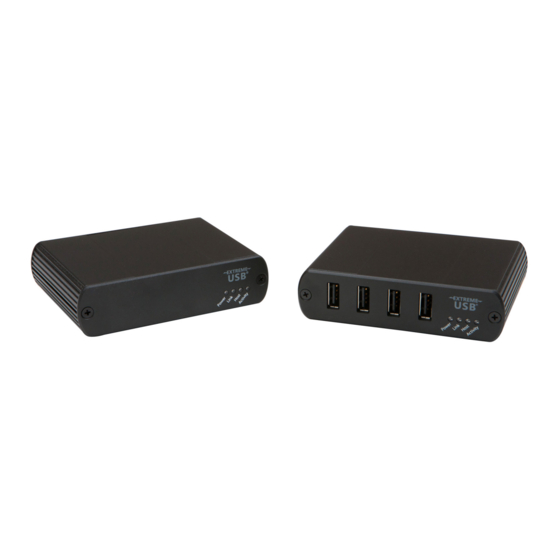

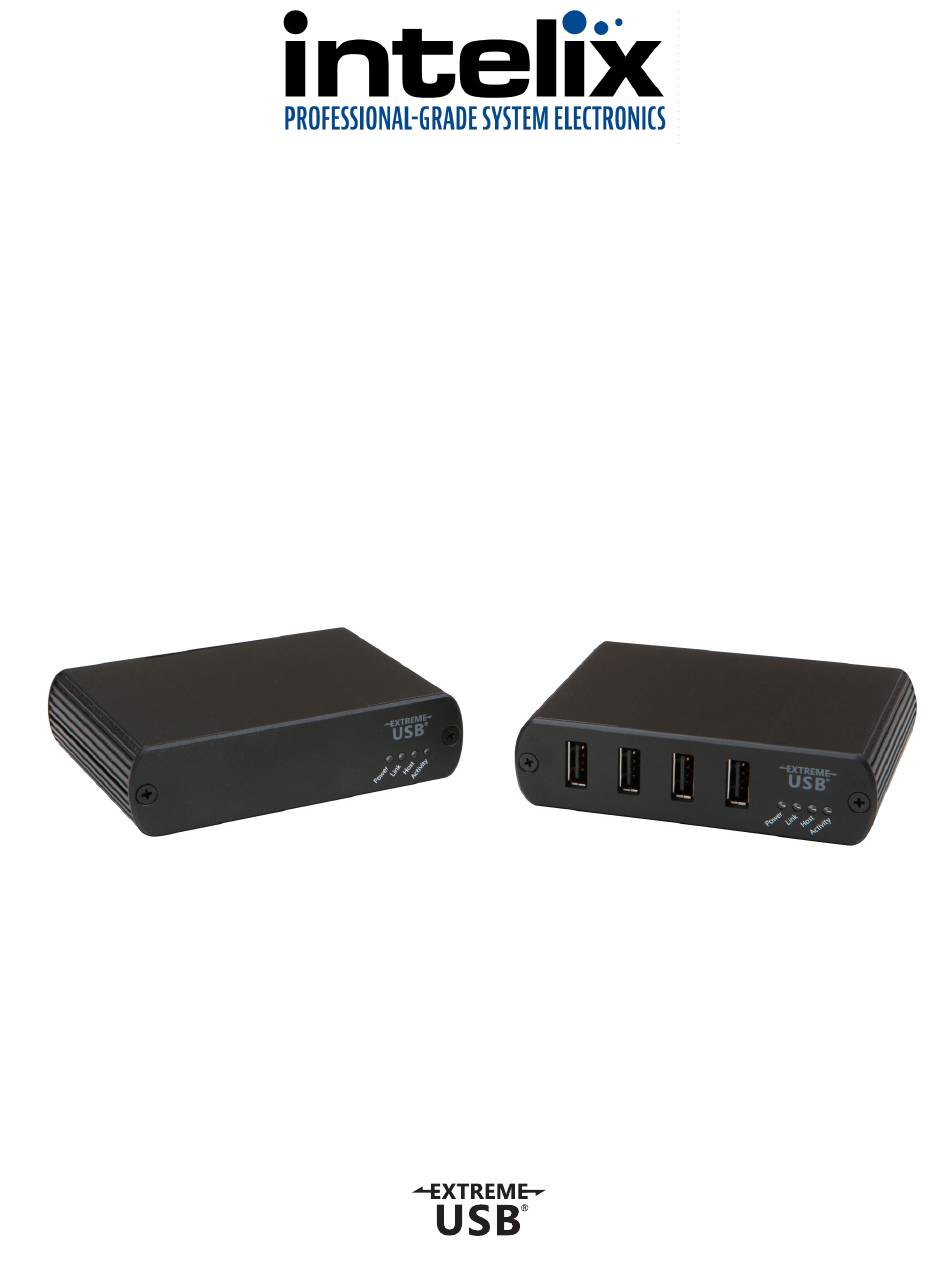

- Page 1 USB 2.0 DIGI-USB2-4P 4-Port USB 2.0 100m CAT 5e/6/7 Extender System User Guide...
- Page 2 Thank you for purchasing the DIGI-USB2-4P Extender System. Please read this guide thoroughly. This document applies to Part Numbers: 01-00448, 01-00449, 01-00450, 01-00451, 01-00537, 02-00028, and 02-00029. FCC Radio Frequency Interference Statement Warning This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Contents Introduction ......................3 DIGI-USB2-4P Product Contents ....................3 About the DIGI-USB2-4P ........................3 The Local Extender ..........................4 The Remote Extender ........................5 Installing the DIGI-USB2-4P System ..............6 Requirements ............................6 Preparing Your Site ..........................6 Installing the Local Extender ......................7 Connecting the Local Extender to the Remote Extender ............ -
Page 4: Introduction
Introduction This guide provides product information for the USB 2.0 DIGI-USB2-4P, installation instructions and troubleshooting guidelines. The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements and some understanding of USB devices. note NOTE: Notes provide additional information that could be useful. -
Page 5: The Local Extender
The Local Extender The local extender unit connects to the computer using a standard USB 2.0 cable. Power for this unit is provided by the host computer. Front View Rear View ITEM TYPE DESCRIPTION LED turns on when power is supplied. Power LED (Blue) LED is off when no power is supplied by the host computer. -
Page 6: The Remote Extender
The Remote Extender The remote extender unit provides USB Type A ports for standard USB devices. The remote extender unit allows you to connect up to four USB devices directly. Additional devices may be connected by attaching up to four USB hubs to the remote extender unit. -
Page 7: Installing The Digi-Usb2-4P System
Installing the DIGI-USB2-4P System Requirements To complete the installation, you will require the following items that are not included with this system: • USB compatible computer (host computer) with a USB compliant operating system • USB compatible device(s) • CAT 5e/6/7 Unshielded Twisted Pair (UTP) cable with two RJ45 connectors (if using surface cabling), or CAT 5e/6/7 cabling with two information outlets and two CAT 5e/6/7 patch cords with RJ45 connectors (if using premise cabling). -
Page 8: Installing The Local Extender
Installing the Local Extender 1. Place the local extender near the computer. 2. Connect the supplied USB cable between the local extender host port and a USB port on the host computer. Connecting the Local Extender to the Remote Extender With Surface Cabling 1. -
Page 9: Checking The Installation
Checking the Installation 1. On the local and remote extenders, check that the Power, Status, Link and Host LEDs are on. If the Host or Link LEDs are permanently off, then the cabling between the local and remote extenders may not be installed properly or is defective. 2. -
Page 10: Connecting A Usb Device
Connecting a USB Device 1. Install any software required to operate the USB device(s). Refer to the documentation for the USB device(s), as required. 2. Connect the USB device to the device port on the remote extender. 3. Check that the device is detected and installed properly in the operating system. Compatibility The USB 2.0 DIGI-USB2-4P complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. -
Page 11: Usb Extender Mounting Options
USB Extender Mounting Options The bottom of the DIGI-USB2-4P enclosures feature four convenient pre-drilled holes for optional mounting. Based on your requirements, choose from two available mounting options: 1. USB Extender Mounting Kit (Purchased separately Order Part # 10-00394 USB Mounting Kit - Black 2. -
Page 12: Option 2: Usb Extender Direct Surface Mounting
OPTION 2: USB Extender Direct Surface Mounting (using your own hardware) The bottom of the DIGI-USB2-4P enclosures features four pre-drilled holes for optional surface mounting. Distance between the enclosure mounting holes: 42.0mm x 77. 0mm mounting hole 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or using a print out of the stencil below. -
Page 13: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. PROBLEM CAUSE SOLUTION All LEDs on the • The local extender is not 1. Ensure that the host computer is connected to local extender receiving power from the the local extender. -
Page 14: Technical Glossary
Technical Glossary Category 5e/6/7 (CAT 5e/6/7) Network Cabling Category 5e/6/7 cable is commonly also referred to as Cat 5e or CAT 6 or CAT 7. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). -
Page 15: Specifications
Specifications RANGE Direct Connect Up to 100m (330 ft) over solid core CAT 5e/6/7 USB SUPPORT Maximum USB 2.0 Throughput Up to 480 Mbps Maximum USB 1.1 Throughput Up to 12 Mbps Traffic Types All USB 2.0 and 1.1 Traffic Types Device Types All USB 2.0 and 1.1 Device Types Number of Devices and/or Hubs...
