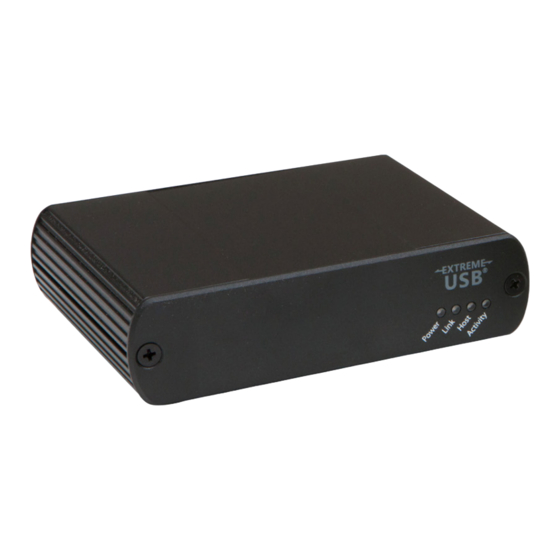

- Page 1 USB 2.0 DIGI-USB2-4H 4-Port USB 2.0 100m CAT 5e/6/7 Extender System User Guide...
- Page 2 CE Statement We declare under our sole responsibility that the USB 2.0 DIGI-USB2-4H, to which this declaration relates, is in conformity with European Standard EN 55022, EN 61000 and EN 55024. IC Statement This Class B digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
Contents Introduction ......................3 DIGI-USB2-4H Product Contents....................3 About the DIGI-USB2-4H ........................3 The Local Extender ..........................4 The Remote Extender ........................5 Installing the DIGI-USB2-4H System ..............6 Requirements ............................6 Preparing Your Site ..........................6 Installing the Local Extender ......................7 Connecting the Local Extender to the Remote Extender ............ -
Page 4: Introduction
The USB 2.0 DIGI-USB2-4H incorporates ExtremeUSB® technology, enabling users to extend USB beyond the standard 5m cable limit for USB 2.0 peripheral devices. The DIGI-USB2-4H extender system is composed of two individual units: the Local Extender and the Remote Extender and has the following key features: •... -
Page 5: The Local Extender
LED is off when there is no link between local and remote extenders. LED is slow blinking when the unit is attempting to establish a link. LED turns on when the DIGI-USB2-4H system is properly enumerated on the Host LED host computer. -
Page 6: The Remote Extender
LED turns on when link between local and remote extenders is established. LED is off when there is no link between local and remote extenders. Host LED (Green) Indicates that the DIGI-USB2-4H system is properly enumerated on the host computer. The LED blinks when in a suspended state. Activity LED... -
Page 7: Installing The Digi-Usb2-4H System
Up to 100m between extenders over CAT 5e/6/7 Preparing Your Site Before installing the DIGI-USB2-4H, you will need to prepare your site: 1. Place the computer where desired and set it up. 2. Ensure to locate the USB device(s) within a cable-length distance of 100m to the computer. If not, adjust the location of the devices and/or computer accordingly. -
Page 8: Installing The Local Extender
Installing the Local Extender 1. Place the local extender near the computer. 2. Connect the supplied USB cable between the local extender host port and a USB port on the host computer. Connecting the Local Extender to the Remote Extender With Surface Cabling 1. -
Page 9: Checking The Installation
2. For Windows users (XP, 7, 8), open Device Manager to confirm that the DIGI-USB2-4H has installed correctly. Expand the entry for Universal Serial Bus controllers by clicking the “+” sign. If the DIGI-USB2-4H has been installed correctly, you should find it listed as a “Generic USB Hub”. -
Page 10: Connecting A Usb Device
3. Check that the device is detected and installed properly in the operating system. Compatibility The USB 2.0 DIGI-USB2-4H complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, it is not possible to guarantee that all USB devices or hosts will be compatible with the DIGI-USB2-4H, as there are a number of different characteristics that may impact the operation of USB devices over extended distances. -
Page 11: Usb Extender Mounting Options
USB Extender Mounting Options The bottom of the DIGI-USB2-4H enclosures feature four convenient pre-drilled holes for optional mounting. Based on your requirements, choose from two available mounting options: 1. USB Extender Mounting Kit (Purchased separately Order Part # 10-00394 USB Mounting Kit - Black 2. -
Page 12: Option 2: Usb Extender Direct Surface Mounting
OPTION 2: USB Extender Direct Surface Mounting (using your own hardware) The bottom of the DIGI-USB2-4H enclosures features four pre-drilled holes for optional surface mounting. Distance between the enclosure mounting holes: 42.0mm x 77. 0mm mounting hole 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or using a print out of the stencil below. -
Page 13: Troubleshooting
USB hubs. computer. • The DIGI-USB2-4H is 5. Reconnect the remote extender to the AC power malfunctioning. adapter. 6. In the Universal Serial Bus controllers section of Device Manager, check that the DIGI-USB2-4H is recognized as a “Generic USB Hub”. -
Page 14: Technical Glossary
Extender unit and Remote Extender unit. You may use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination as the USB 2.0 DIGI-USB2-4H requires all four pairs of the cable. RJ45 connectors are sometimes also referred to as 8P8C connectors. Note that any given cable must be terminated using the same T568 scheme on both ends to operate correctly. -
Page 15: Specifications
Specifications RANGE Direct Connect Up to 100m (330 ft) over solid core CAT 5e/6/7 USB SUPPORT Maximum USB 2.0 Throughput Up to 480 Mbps Maximum USB 1.1 Throughput Up to 12 Mbps Traffic Types All USB 2.0 and 1.1 Traffic Types Device Types All USB 2.0 and 1.1 Device Types Number of Devices and/or Hubs...
