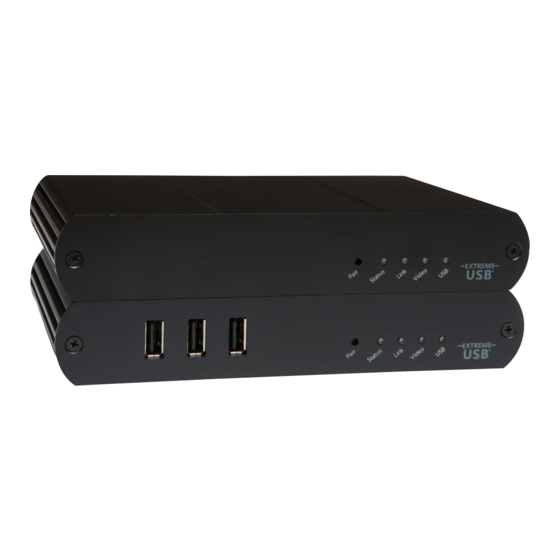

Extreme USB VU4500 Quick Start Manual

VU4500
Local Extender
DVI and USB 2.0 100m Cat 5e/LAN KVM Extender System
Quick Start Guide
Using the included high quality DVI and USB cables,
1
connect the Local Extender to a computer.
Computer
Directly connect the Local Extender to the Remote Extender, or connect each unit to a
3
Local Area Network (LAN) with solid core Cat 5e cabling (not included).
Power the Local Extender with the included 5V AC adapter.
4
local
Link
Quick Start Guide
DVI + USB 2.0 Extender
Front
Back
Link
DC IN 5V@3A
Local Extender (rear view)
Link
DC IN 5V@3A
Link
DC IN 5V@3A
Cat 5e (or better)
If directly connected, max. distance is 100m (330 ft) between Local Extender and Remote Extender.
DC IN 5V@3A
Remote Extender
Connect the Remote Extender to a monitor with a
2
high quality DVI cable (not included). Connect your USB
devices to the Remote Extender (e.g. keyboard and mouse).
Remote Extender
LAN LAN
Cat 5e (or better)
5 Power the Remote Extender with the included 24V AC
adapter. Wait approximately one minute for the system to boot.
ExtremeUSB® and HD Video
Front
Back
Link
24V@1A
(front view)
Remote Extender (rear view)
Link
24V@1A
Link
24V@1A
