Extreme USB VU5353 Quick Start Manual

VU5353 DVI + USB 2.0 Extender
Local Extender
DVI and USB 2.0 100m (330 feet) CAT 5e/6/7 KVM Extender System
Quick Start Guide

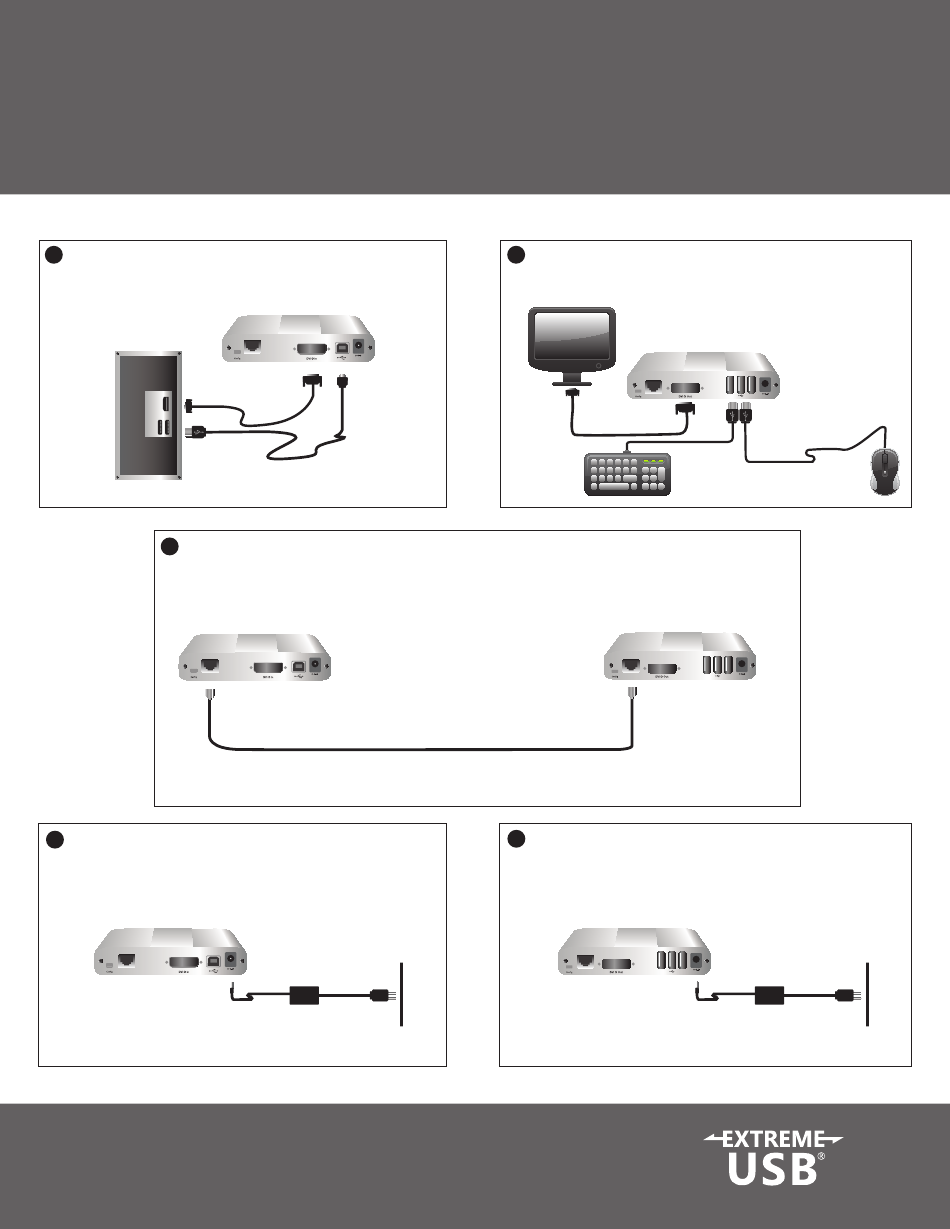

Using the included high quality DVI and USB cables,
1
connect the Local Extender to a computer.
Computer
Directly connect the Local Extender to the Remote Extender with a CAT 5e/6/7 STP cable (not
3
included). Solid core CAT 6a/7 STP is recommended for best performance (refer to detailed cable
information on the back of this page).
Link
Power the Local Extender with the included 5V AC adapter.
4
Link
HD Video + ExtremeUSB®
Front
9
Back
Link 5V DC 5V DC
Local Extender (rear view)
Link
5V DC
5V DC
CAT 5e/6/7 STP
Max. distance is 100m (330ft) between Local and Remote Extenders
5V DC
Remote Extender
Link 5V DC
Connect the Remote Extender to a monitor with a high
2
quality DVI cable (not included). Connect your USB devices
(e.g. keyboard and mouse) to the Remote Extender.
Remote Extender (rear view)
Link
Link
Power the Remote Extender with the included 5V AC adapter.
5
Link
Front
Back
5V DC
5V DC
