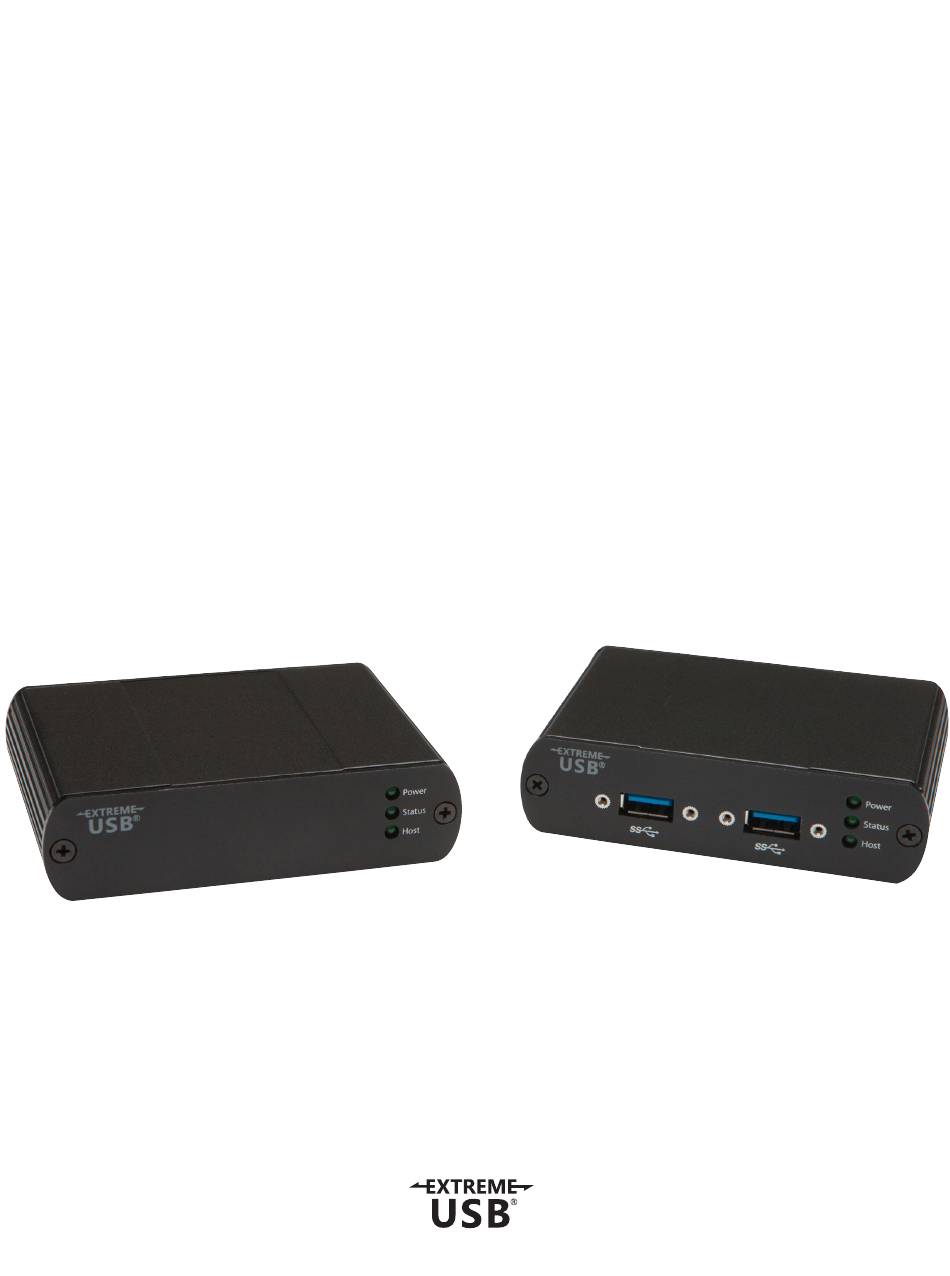

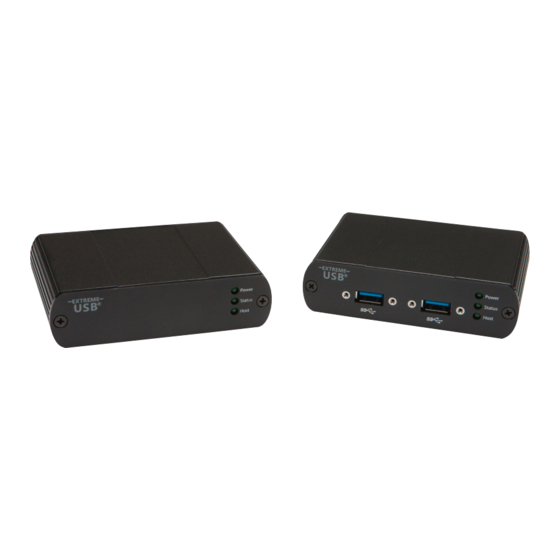

- Page 1 USB 3.0 SP3022 2-Port USB 3.0 100m Multimode Fiber Extender System User Guide...
- Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the USB 3.0 SP3022, to which this declaration relates, is in conformity with European Standard EN 55022, EN 61000 and EN 55024.
-
Page 3: Table Of Contents
Contents Introduction ......................3 SP3022 Product Contents......................... 3 About the USB 3.0 SP3022 ....................... 3 The Local Extender Unit ........................4 The Remote Extender Unit ....................... 5 Installation Guide ....................6 Requirements ............................6 Fiber Optic Link Cabling........................6 Installing the SP3022 System ......................7 ........................... -
Page 4: Introduction
• Quick Start Guide About the USB 3.0 SP3022 The SP3022 incorporates Icron’s patented ExtremeUSB® technology, enabling users to extend beyond the approximate 3m cable limit for USB 3.0 peripheral devices. With the SP3022, USB 3.0 devices can be located up to 100 meters from the computer. -
Page 5: The Local Extender Unit
The Local Extender Unit The Local Extender connects to the computer using a standard USB 3.0 cable. Power for this unit is provided by the USB on the host computer. Front View Rear View ITEM TYPE DESCRIPTION Power ON Unit is powered properly. Power OFF Unit is not powered or not powered properly. -
Page 6: The Remote Extender Unit
The Remote Extender Unit The Remote Extender provides USB Type A ports for USB 3.0 devices.The Remote Extender allows you to connect up to two USB 3.0 devices directly. The unit is powered by an external AC adapter and can supply up to 900mA to each USB port. -
Page 7: Installation Guide
Installation Guide Example Application USB 3.0 Cameras USB 3.0 up to 100m Computer & Monitor over multimode f iber Local Extender Remote Extender Assembly Line Requirements To complete installation of the SP3022, you will also require the following items that are not included with the product: •... -
Page 8: Installing The Sp3022 System
Installing the SP3022 System Preparing Your Site Before you can install the SP3022, you need to prepare your site: Determine where the computer is to be located and set up the computer. Determine where you want to locate the USB device(s). Ensure f iber optic cabling is in place, prepared, properly terminated, and within the maximum distances as def ined for the cabling standard used. - Page 9 a. Click on Change Plan Settings Select “Never” for “Put the computer to sleep” for all the conf igurations presented. a. Click Change advanced power settings. b. Expand “USB settings” c. Expand “USB selective suspend setting” Select “Disabled” .
- Page 10 OS X To disable “suspend” settings on your computer: Open System Preferences and select Energy Saver. For both Battery and Power Adapter power settings, move slider bar to “Never” for “Computer Sleep” .
- Page 11 Linux (Ubuntu 14.04) To disable “suspend” settings on your computer: Edit “/etc/default/grub” as root. Append “usbcore.autosuspend=-1” (without quotations) to the GRUB_CMDLINE_LINUX_DEFAULT variable. Run “update-grub” as root under ubuntu. Reboot the host computer.
-
Page 12: Connecting A Usb 3.0 Device
Connecting a USB 3.0 Device Install any software required to operate the USB device(s). Refer to the documentation for the USB device(s), as required. Connect the USB device to the device port on the Remote Extender unit. If using an AIA USB3 Vision ™... -
Page 13: Installing The Remote Extender Unit
Installing the Remote Extender Unit Place the Remote Extender near the USB device(s). Plug the power adapter into a suitable AC outlet. Connect the power adapter to the Remote Extender and twist the connector to lock the power connector into the Remote Extender. Checking the Installation On the Local and Remote Extender units, check that the Power, Status, and Host LEDs are on and solid. -
Page 14: Compatibility
For OS X users, open the System Profiler to confirm that the SP3022 has installed correctly. In the left hand column under Hardware, select “USB” and inspect the right hand panel. If the SP3022 has been installed correctly, you should find it listed as a “Hub” under the “USB 3.0 SuperSpeed Bus” . For Linux users, plug in a USB 3.0 device into your SP3022’s Remote Extender. -
Page 15: Usb Extender Mounting Options
USB Extender Mounting Options The bottom of the SP3022 enclosures feature four convenient pre-drilled holes for optional mounting. Based on your requirements, choose from two available mounting options: 1. USB Extender Mounting Kit (Purchased separately Order Part # 10-00394 USB Mounting Kit - Black) 2. -
Page 16: Option 2: Usb Extender Direct Surface Mounting
OPTION 2: USB Extender Direct Surface Mounting (using your own hardware) The bottom of the SP3022 enclosures features four pre-drilled holes for optional surface mounting. Distance between the enclosure mounting holes: 42.0mm x 77. 0mm mounting hole 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or using a print out of the stencil below. -
Page 17: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 18 PROBLEM CAUSE SOLUTION Host LED on Local/ • The host computer is not 1. Disconnect all USB devices from the Remote Remote Extender powered on. Extender. is off. • The Local Extender is not 2. Disconnect the Local Extender from the connected to the computer computer.
-
Page 19: Contacting Technical Support
PROBLEM CAUSE SOLUTION There are issues • This extender is not fully 1. Consider using the Spectra 3001-15 active with the Microsoft compatible with the Kinect. extension cable. Kinect and the Spectra 3022. Contacting Technical Support If you are experiencing problems not referenced in the Troubleshooting Guide, contact Technical Support at the company where you purchased this product and provide them with the following information: •... -
Page 20: Specifications
Specifications Distance* Multimode Cameras Storage * Up to 50m with USB 3.0 storage type Fiber Class devices and and up to 100m is achievable when using USB 3.0 bulk traff ic cameras. 100m USB 3.0 up to 5 Gbps (Not backward compatible with USB USB Device Support &...
