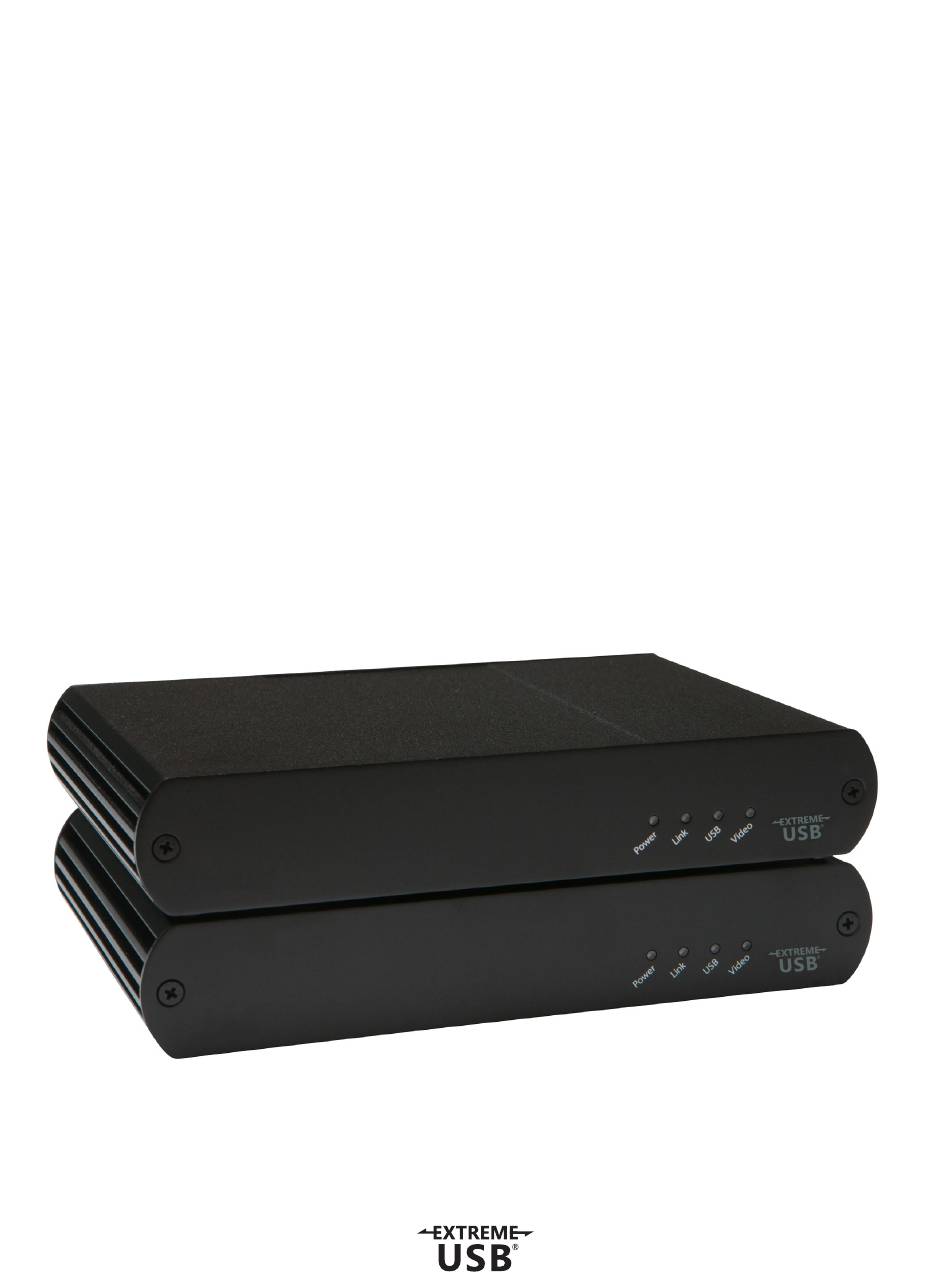

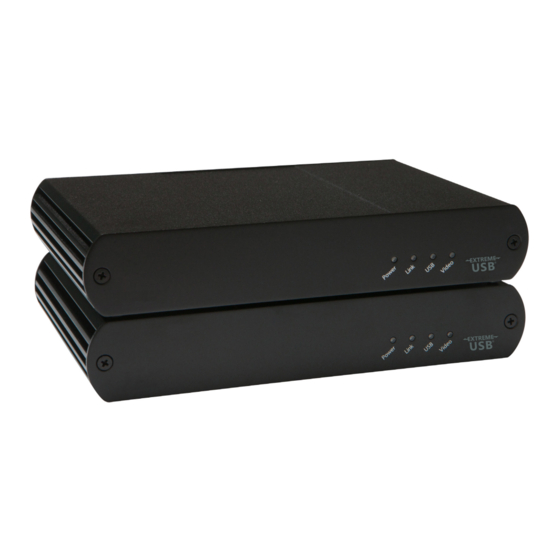

- Page 1 VU5363 HDMI + USB 2.0 Extender HDMI and USB 2.0 100m CAT 5e/6/7 KVM Extender System User Guide...
- Page 2 (2) this device must accept any interference received including interference that may cause undesired operation. CE Statement We declare under our sole responsibility that the VU5363, to which this declaration relates, is in conformity with European Standards EN 55022, EN 61000, and EN 55024. IC Statement This Class A digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
Contents Introduction ........................4 Product Contents ...................................4 Requirements ....................................4 About the VU5363 KVM Extender ............................4 Compatibility and Recommended Setup ..........................5 The Local Extender ..................................6 The Remote Extender ..................................7 Installation Guide ......................8 Installing the Local Extender ..............................8 Installing the Remote Extender ...............................8 Connecting the Local Extender to the Remote Extender ....................9... -
Page 4: Introduction
Please refer to the Cabling section on page 5 for more detailed information. About the VU5363 KVM Extender The VU5363 KVM Extender system incorporates ExtremeUSB® and HD Video technology, which enables users to extend both HDMI and USB 2.0 up to 100 meters (330 feet). The following ExtremeUSB features are included: •... -
Page 5: Compatibility And Recommended Setup
• Keyboards & Mice • Printers • Mass Storage Devices • Speakers • Microphones HDMI Features The VU5363 KVM Extender is compatible with the following HDMI features: • Full uncompressed high definition 4Kp30, 1080p and 1920 x 1200 video resolutions •... -
Page 6: The Local Extender
The Local Extender The local extender connects to the computer using the supplied HDMI and USB cable. It’s important to use the HDMI cable supplied with the product when connecting the local extender to the host computer to ensure proper operation. Front View Rear View Link... -
Page 7: The Remote Extender
The Remote Extender The Remote Extender provides HDMI output to a monitor and three USB Type A ports for standard USB devices. Additional devices may be connected by attaching USB hubs. Front View Rear View Link HDMI Out 5V DC Config ITEM TYPE... -
Page 8: Installation Guide
Installation Guide Before you can install the product, you need to prepare your site: Home Theater Computer HD TV/Monitor HDMI & USB up to 100m Cat 5e/6/7 (STP recommended) Local Extender Remote Extender Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote desktop including the monitor, keyboard, mouse and any other USB device(s). -
Page 9: Connecting The Local Extender To The Remote Extender
Connecting the Local Extender to the Remote Extender While unshielded cabling may be used, to ensure proper operation, it is recommended that solid core CAT 6a/7 STP note cabling be used to connect the local extender to the remote extender. The cabling must have a straight-through conductor configuration with no crossovers and must be terminated with CAT 6a/7 connectors to qualify as CAT 6a/7. -
Page 10: Checking The Installation
Open the Start menu, right click on “Computer” then select: Manage >> Device Manager For OS X users, open the System Profiler to confirm that the VU5363 has installed correctly. In the left hand column under Hardware,select “USB” and inspect the right hand panel. If the VU5363 has been installed correctly, you should find it listed as a “Hub”... -
Page 11: Troubleshooting Guide
Troubleshooting Guide The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed, in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 12 PROBLEM CAUSE SOLUTION All LEDs on both • The USB device is 1. Disconnect the KVM extender product from the local and malfunctioning. the computer. remote extenders • The computer does not 2. Connect the USB device directly to the USB port are on, but the recognize the USB device.
-
Page 13: Specifications
Specifications Up to 100m (330 ft) over a single CAT 5e/6/7 cable. Range Solid core CAT 6a/7 STP recommended for best performance. High Definition 1080p, 1920 x 1200, and 4Kp30; Video Resolution & Depth Depth: 2D and 3D Color 36-bit, Deep Color, and x.v. Color Latency Less than 1ms High-Speed devices (USB 2.0) - up to 40 Mbps... -
Page 14: Contacting Technical Support
Part number and serial number of both the Local Extender and Remote Extender unit • Make and model of any USB device(s) attached to the VU5363 • Description of the installation (Host PC model, transmission media used, and information on the USB devices) •... -
Page 15: Technical Glossary
Technical Glossary Category 5e (CAT 5e) Network Cabling Category 5e cable is commonly also referred to as CAT 5e. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI).
